(SPIDER Automation) High-Voltage In-Line Servo Signal Reverser & Inverter Module (3.6V?24V)

SPIDER Automation High-Voltage In-Line Servo Signal Reverser | 3.6V–24V Signal Inverter

Description

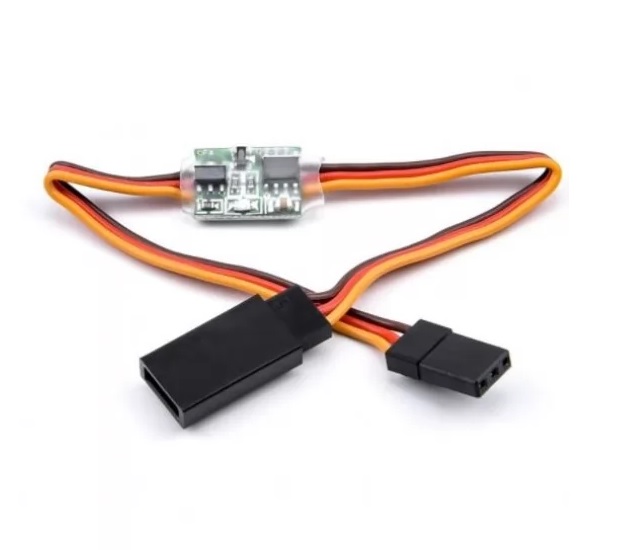

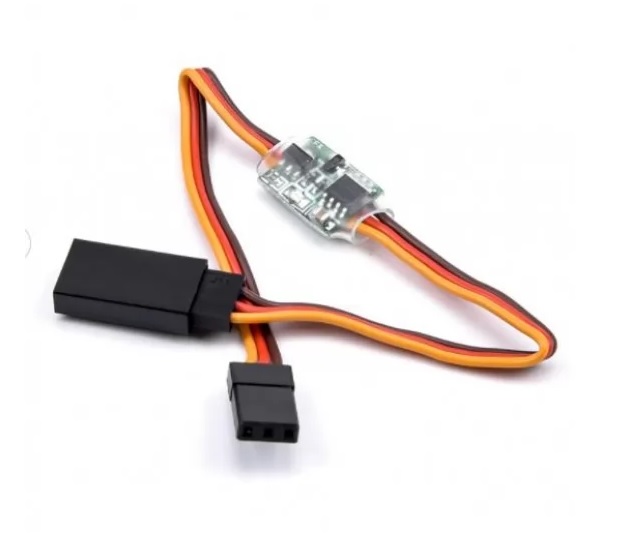

Eliminate mechanical binding and complicated radio mixing matrices when configuring dual-actuator setups. The SPIDER Automation High-Voltage In-Line Servo Signal Reverser acts as an advanced electronic signal inverter designed to swap the directional output of any steering gear instantly. Simply connected in series along your target servo channel, this lightweight module intercepts the pulse-width modulation (PWM) stream and inverts its phase polarity. Built around a high-precision printed circuit board (PCB) and rated for demanding electrical loads up to 5A across an ultra-wide 3.6V to 24V voltage window, it delivers uncompromising signal stability and reliability for advanced hobbyist and industrial automation projects.

Key Features

• High-Voltage Operational Range: Fully compatible with power inputs from 3.6V up to 24V DC, accommodating standard receiver power rails as well as heavy-duty high-voltage (HV) systems.
• Robust 5A Working Current: Engineered with heavy-duty internal traces to safely process high current draws typical of high-torque digital and brushless servos.

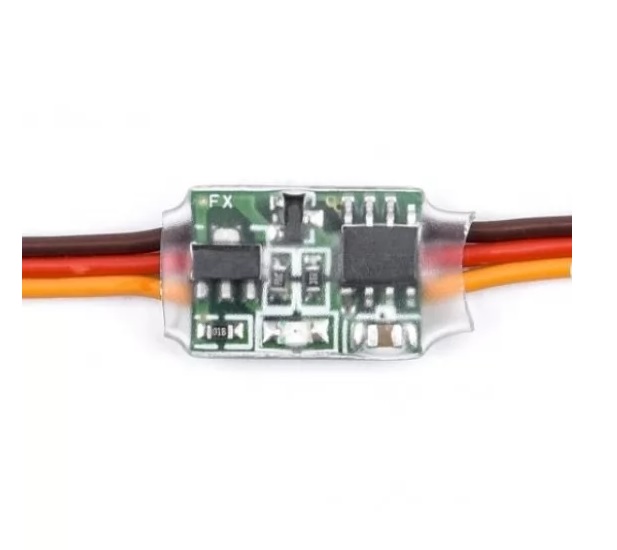

• High-Precision PCB Architecture: Premium circuit board construction ensures flawless signal integrity, zero jitter, and long-term functional stability under operational stress.
• Universal Steering Gear Compatibility: Universally designed to invert rotational direction for virtually any standard analog or digital servo motor on the market.
• Standardized JR Interfacing: Equipped with industry-standard JR male and female connector plugs for instant, solder-free inline deployment.
• Ultralight & Compact Form Factor: Minimal footprint and feather-light structural weight add zero noticeable payload penalty to tight airframes or mobile robotic chassis.

Benefits

• Simplifies Multi-Servo Wiring: Bypasses the limitation of global transmitter reversing functions, allowing precise individual control over paired surfaces.
• Prevents Mechanical Strain: Stops mirrored actuators on a shared Y-harness from fighting each other, protecting gear trains and pushrods from premature wear.
• Exceptional Electrical Safety: Wide voltage tolerance and high current capacity prevent module overheating or signal dropouts during peak load spikes.
• Rapid Bench Deployment: Plug-and-play in-series installation lets you correct control orientations in seconds right on your workbench.
• Versatile System Integration: Adaptable across diverse electrical environments ranging from RC model aircraft to heavy industrial robotics.
• Maintains Response Fidelity: Precision filtering ensures immediate transmission of control stick movements without latency or command degradation.

Applications

• Dual-Aileron & Flap Aircraft: Reversing one wing servo on a shared receiver channel or Y-splitter to ensure synchronized movement.
• Custom RC Vehicles: Adjusting twin-servo steering or dual-actuator suspension mechanisms in high-performance crawlers and trucks.
• Robotic Articulations & Limbs: Inverting movement directions on mirrored mechanical joints, grippers, or pan-tilt mechanism axes.
• Industrial Automation Jigs: Modifying the operational rotation of automated pneumatic or electronic valve control actuators.
• Marine Rudder Control: Balancing dual synchronized steering rudders on multi-engine scale boat hulls.
• Mechatronics & STEM Education: Teaching students signal manipulation, PWM phase shifting, and custom wiring logic in embedded systems.

Package Includes

• 1 x High Voltage Servo Signal Reverser

Specifications
