(SPIDER Automation) Cube Orange Standard Set + ADS-B Flight Controller | H7 Processor, 1090MHz ADS-B Receiver | Triple-Redundant Sensors, IMU Heating, 4.1–5.7V Input

SPIDER Automation Cube Orange Standard Set + ADS-B Flight Controller | H7 Processor & 1090MHz ADS-B | Multi-Airframe Autopilot System

Description

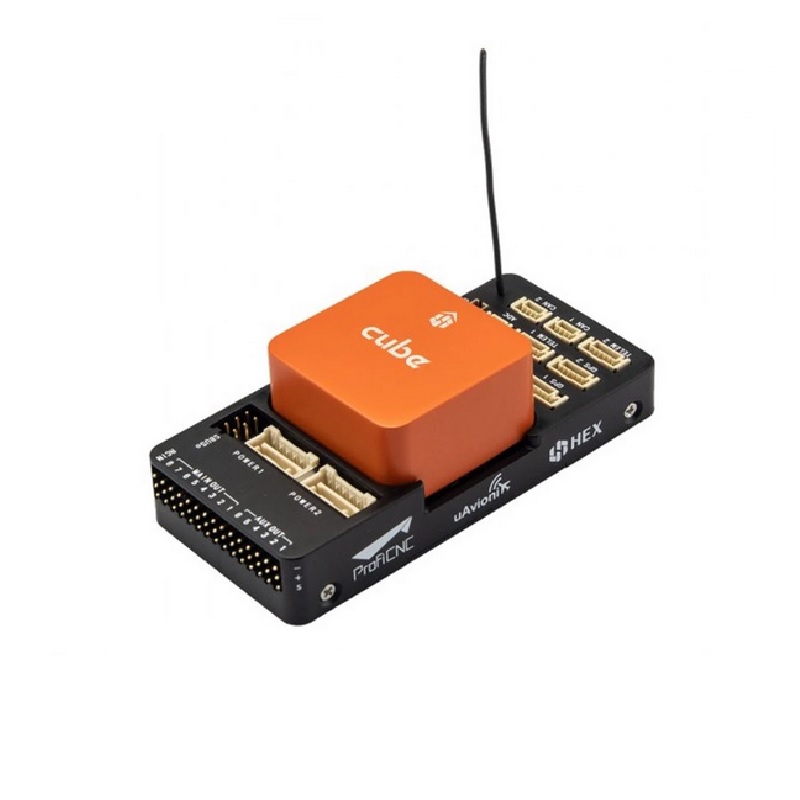

The SPIDER Automation Cube Orange Standard Set + ADS-B Flight Controller is an autopilot and flight-control system built around the Cube Orange with a new-generation H7 processor and an integrated 1090MHz ADS-B receiver on the standard ADS-B carrier board. The ADS-B system allows compatible flight software to receive information about manned aircraft operating in the surrounding area.

The integrated ADS-B receiver can receive aircraft information including position, altitude and speed, with the supplied product information specifying that these details can be viewed in Mission Planner. Through parameter settings, the autopilot can optionally be configured to automatically avoid an aircraft detected within an exclusion zone defined by the pilot.

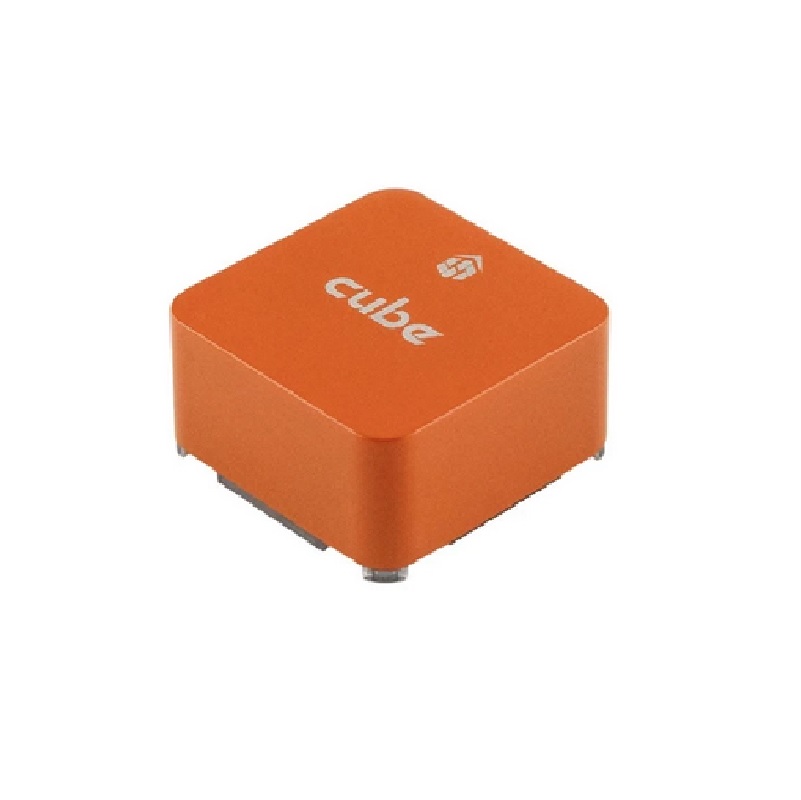

The Cube Orange incorporates triple-redundant sensors together with temperature-control and shock-absorption features. Its built-in IMU heating system is designed to support operation in extreme temperature conditions, including environments below freezing. The system also uses robust DF17 interface connectors intended to provide enhanced resistance to drop and shock.

The supplied set includes the Cube Orange flight controller, a standard ADS-B carrier board, a Power Brick and a cable set for connecting telemetry modules, GPS and sensors. The system is specified for multiple airframes and robotic platforms, including VTOL, plane, multicopter, traditional helicopter, rover, boat, submarine and general robotics applications.

Key Features

• H7 Processor: Cube Orange uses a new-generation H7 processor as the central processing platform for the autopilot system.
• 1090MHz ADS-B Receiver: The ADS-B carrier board integrates a 1090MHz receiver for receiving information from manned aircraft.
• Aircraft Position Data: The ADS-B system can receive aircraft position information for display through compatible flight software.
• Altitude & Speed Information: The supplied description identifies altitude and speed among the aircraft information received by the ADS-B system.
• Automatic Aircraft Avoidance: Parameter settings can optionally configure the vehicle to avoid aircraft detected within a pilot-defined exclusion zone.
• Triple-Redundant Sensors: Provides a redundant sensor architecture as part of the Cube Orange flight-control system.
• IMU Heating System: Built-in heating supports operation in extreme low-temperature conditions, including below-freezing environments.
• Temperature-Controlled IMU: The supplied information identifies temperature control as part of the Cube Orange sensor system.
• Shock-Absorption Features: The Cube Orange incorporates shock-absorption features for its IMU and sensor system.
• Robust DF17 Interfaces: Provides enhanced drop and shock resistance according to the supplied product information.
• Multi-Airframe Support: Supports VTOL, plane, multicopter, traditional helicopter, rover, boat, submarine and general robotics platforms.
• Complete Standard Set: Includes the Cube Orange, ADS-B carrier board, Power Brick and cable set for telemetry, GPS and sensor connections.

Benefits

• Integrated Aircraft Awareness: The built-in ADS-B receiver provides aircraft information that can be viewed through Mission Planner.
• Configurable Aircraft Avoidance: The supplied software configuration allows automatic aircraft avoidance to be optionally enabled using a pilot-defined exclusion zone.
• Environmental Adaptability: The built-in IMU heating system supports operation in below-freezing conditions.
• Sensor Redundancy: Triple-redundant sensors provide a redundant sensing architecture for compatible autopilot applications.
• Broad Platform Support: The system can be used across multiple aircraft, ground, marine and general robotics platforms.
• Integrated System Components: The supplied carrier board, Power Brick and cable set provide the main components required for system integration.

Applications

• VTOL Aircraft: Suitable for compatible vertical take-off and landing platforms.
• Fixed-Wing Aircraft: Suitable for compatible plane and fixed-wing autopilot applications.
• Multicopters: Suitable for compatible multi-rotor aircraft platforms.
• Traditional Helicopters: Suitable for compatible helicopter flight-control applications.
• Rovers: Suitable for compatible autonomous or remotely controlled rover platforms.
• Boats: Suitable for compatible marine vehicle control systems.
• Submarines: Suitable for compatible underwater vehicle applications.
• General Robotics: Suitable for compatible robotic platforms requiring an advanced autopilot and control system.

Package Includes

• 1 × The Cube Orange
• 1 × Standard Carrier Board with ADS-B
• 1 × Power Brick
• 1 × Cable Set for Telemetry Module, GPS and Sensors

Technical Specifications

Installation & Usage Notes

• Power Requirements: Ensure the flight-control system is supplied within the specified 4.1–5.7V input-voltage range.
• ADS-B Configuration: Configure the ADS-B and aircraft-avoidance parameters according to the applicable flight-software setup requirements.
• Exclusion Zone: The supplied information specifies that automatic aircraft avoidance can be configured using an exclusion zone defined by the pilot.
• Mission Planner: Use the compatible flight-software interface to view aircraft information received by the ADS-B receiver.
• Environmental Protection: The flight controller is not waterproof; external waterproof protection is required where environmental exposure is expected.
• Temperature: Observe the specified -10°C to 55°C operating-temperature range and use the built-in IMU heating system as applicable for low-temperature operation.
• Redundant Power: The supplied information states that two Power Bricks can be used for redundant power.
