Description

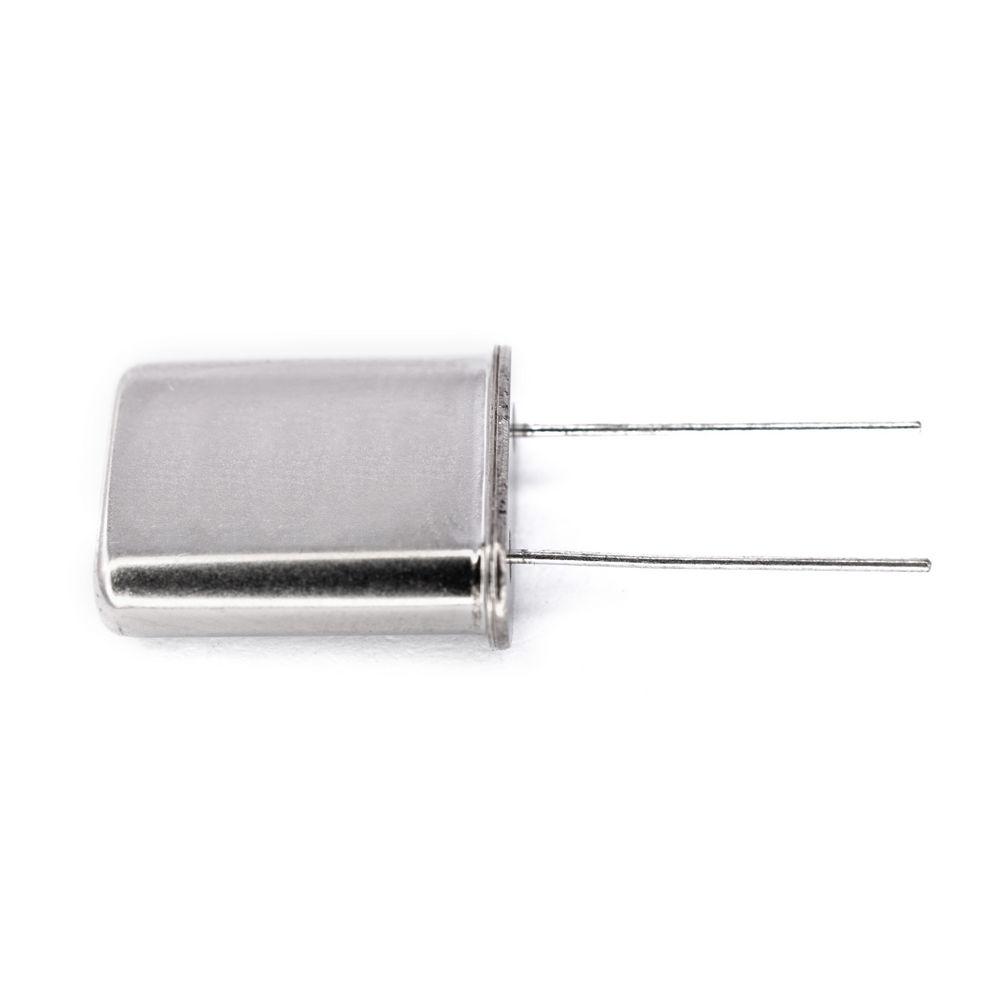

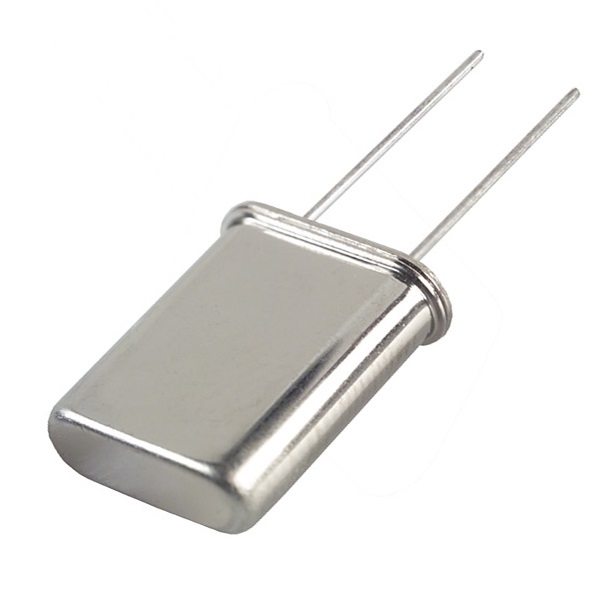

The HC49/U 11.0592 MHz Crystal is a precision-engineered quartz resonator, highly regarded in embedded design for its unique frequency. In the world of microcontrollers, 11.0592 MHz is a “magic number” because it is a multiple of standard serial communication (UART) baud rates. Using this crystal allows microcontrollers to generate precise bit rates (like 9600, 19200, 38400, and 115200) with near-zero percentage error, ensuring reliable data transmission without the framing errors often encountered with other common frequencies.
Housed in the classic HC49/U through-hole package, this crystal offers excellent mechanical durability and electrical stability. It is an ideal timing reference for a wide array of applications, including microprocessor systems, networking hardware, and general consumer electronics where serial data integrity is a priority.
Key Features
- UART Friendly: The 11.0592 MHz frequency is perfectly calibrated to minimize errors in serial/UART communication baud rates.
- High Reliability: Industry-standard HC49/U package ensures long-term frequency stability and robust performance.
- Versatile Application: Suitable for a wide range of digital logic and embedded system timing requirements.
- Compact Design: Efficient 10mm x 3.4mm x 13mm dimensions fit easily into both prototyping and production PCBs.
Application
- UART and Serial Data Communication (Microcontrollers/RS-232)
- Microprocessor Master Clock
- Network Cards and Communication Modules
- Consumer Electronics Timing
- Embedded Systems and DSPs
Package Includes
- 5 x HC49/U 11.0592 MHz Quartz Crystal
Specifications
| Parameter | Specification |
|---|---|
| Frequency | 11.0592 MHz |
| Tolerance | ±20 ppm (approx.) |
| Operating Temperature | -10 °C to +60 °C |
| Mounting Type | Through-Hole (HC49/U) |
