Description:

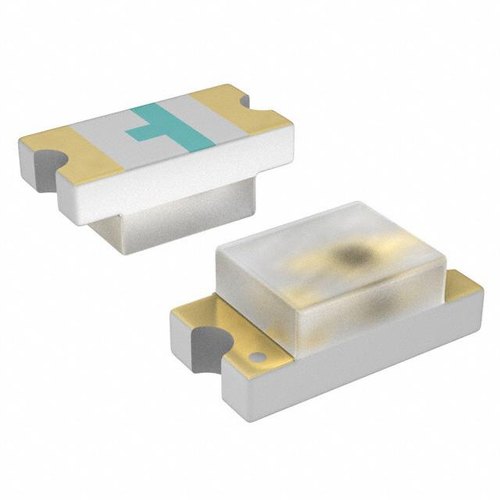

The EVERLIGHT 1.5mm Red SMD LED is a high-performance surface-mount light-emitting diode designed for indication, backlighting, and general electronic lighting applications. Emitting bright red light with a dominant wavelength of 632nm, this LED operates within a forward voltage range of 1.75V to 2.35V while delivering a typical brightness of 180mcd. Its low power consumption and wide viewing angle make it suitable for a variety of electronic products requiring reliable visual indication.
With compact dimensions of 1.5 × 0.7 × 1.1mm, this SMD LED is compatible with automated SMT assembly, infrared reflow, and vapor phase soldering processes. Manufactured by EVERLIGHT, it offers excellent reliability, long service life, and consistent optical performance for industrial automation, consumer electronics, communication devices, instrumentation, display backlighting, and embedded electronic systems.
Note: Product images are for reference only. The actual product may vary slightly from the images shown.
Applications:
- Status and power indicators
- LCD and display backlighting
- Industrial automation equipment
- Consumer electronics
- Communication devices
- Instrumentation and measuring systems
- Embedded electronic projects
- General SMT electronic assemblies
Features:
- Original EVERLIGHT red SMD LED
- Bright red light with 632nm wavelength
- Forward voltage: 1.75V to 2.35V
- Typical brightness: 180mcd
- Wide 130° viewing angle
- Low power consumption
- Compact 1.5 × 0.7 × 1.1mm package
- Compatible with automatic SMT placement equipment
- Compatible with infrared and vapor phase reflow soldering
- Pb-free and RoHS compliant
Package Includes:
- 10 x EVERLIGHT 1.5mm Red SMD LED
Specifications:
| Manufacturer | EVERLIGHT |
| Product Type | SMD LED |
| LED Color | Red |
| Wavelength | 632 nm |
| Forward Voltage | 1.75 – 2.35 V |
| LED Brightness | 180 mcd |
| Viewing Angle | 130° |
| Mounting Type | SMD / SMT |
| Dimensions | 1.5 × 0.7 × 1.1 mm |
| Compliance | Pb-free, RoHS Compliant |
| Package Quantity | Pack of 10 |
| Weight | 0.005 g (Each) |
| Shipping Weight | 0.015 kg |
| Shipping Dimensions | 4 × 1 × 1 cm |
