Description
The eSUN eFlex TPU is a high-performance, transparent, and soft elastic material designed for advanced 3D printing applications. Often referred to as “soft PLA,” this professional-grade TPU (Thermoplastic Polyurethane) boasts high flexibility, exceptional mechanical strength, and superior resistance to wear, aging, chemicals, water, oil, and solvents.
With a Shore A hardness of 87A, eFlex is engineered for durability, offering waterproof, cold-proof, and anti-ultraviolet properties. It is an ideal choice for creating functional flexible parts, seals, gaskets, and protective casings. Note: Because this is a soft/flexible filament, please ensure your 3D printer’s extruder setup is calibrated and capable of handling flexible materials to ensure a smooth and successful print.
Key Features
- High Flexibility: TPU rubber-based material providing excellent elasticity with a Shore A Hardness of 87A.
- Superior Durability: Boasts a tensile strength of 52 MPa and resistance to wear, chemicals, and harsh environmental conditions.
- Robust Protection: Features waterproof, cold-proof, and anti-UV characteristics.
- Professional Grade: High-quality formulation compatible with all standard FDM 3D printers equipped to handle flexible filaments.
Package Includes

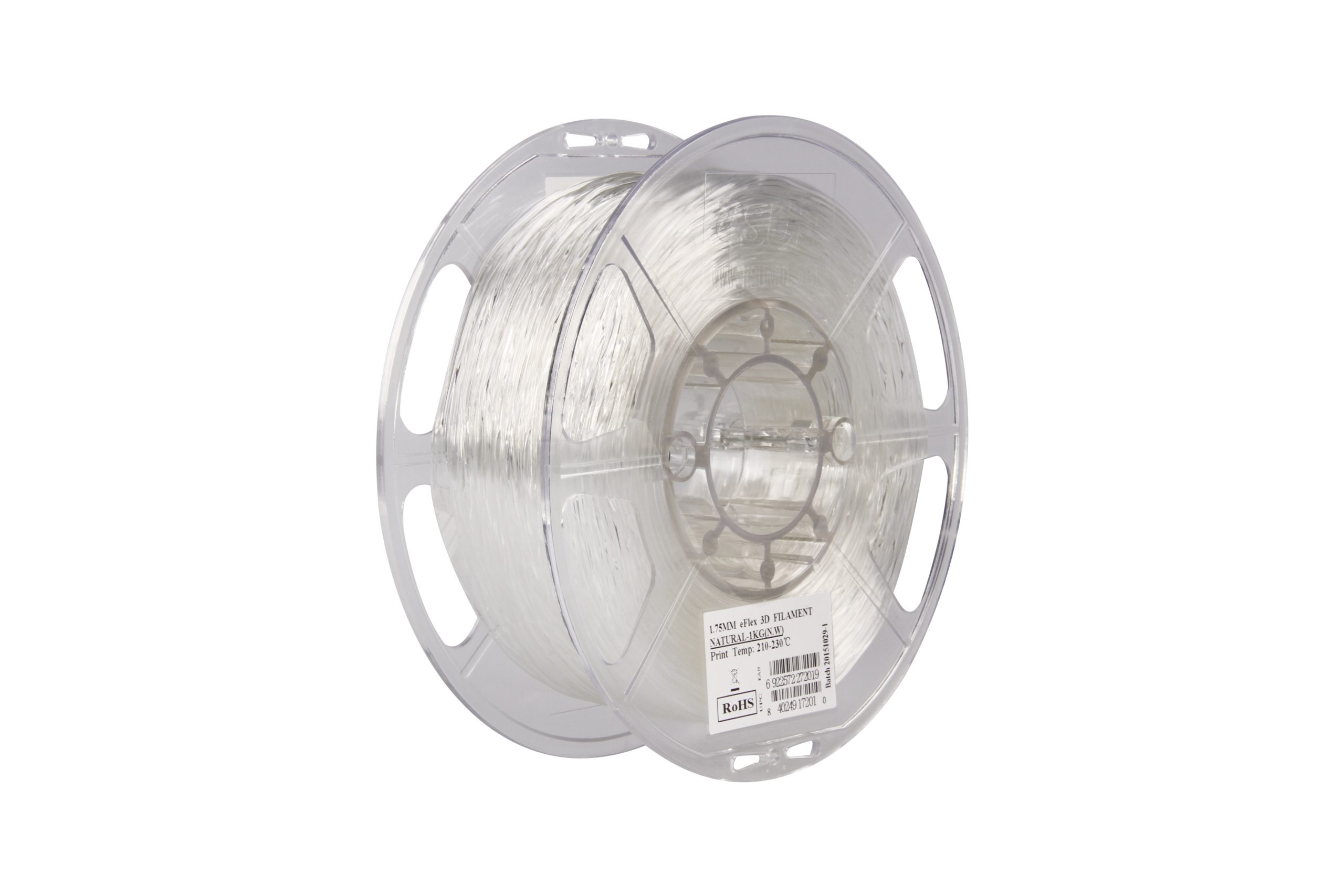

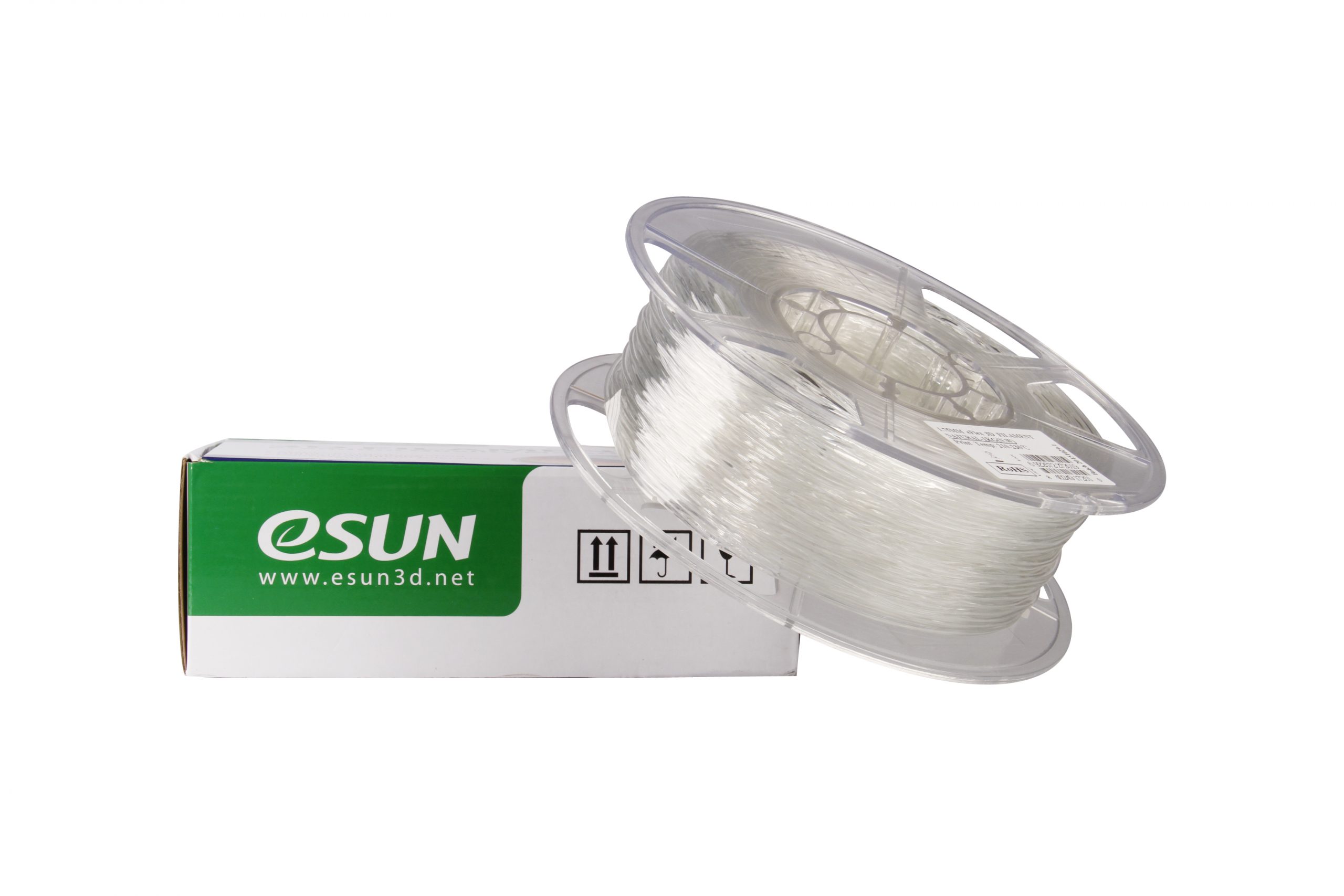

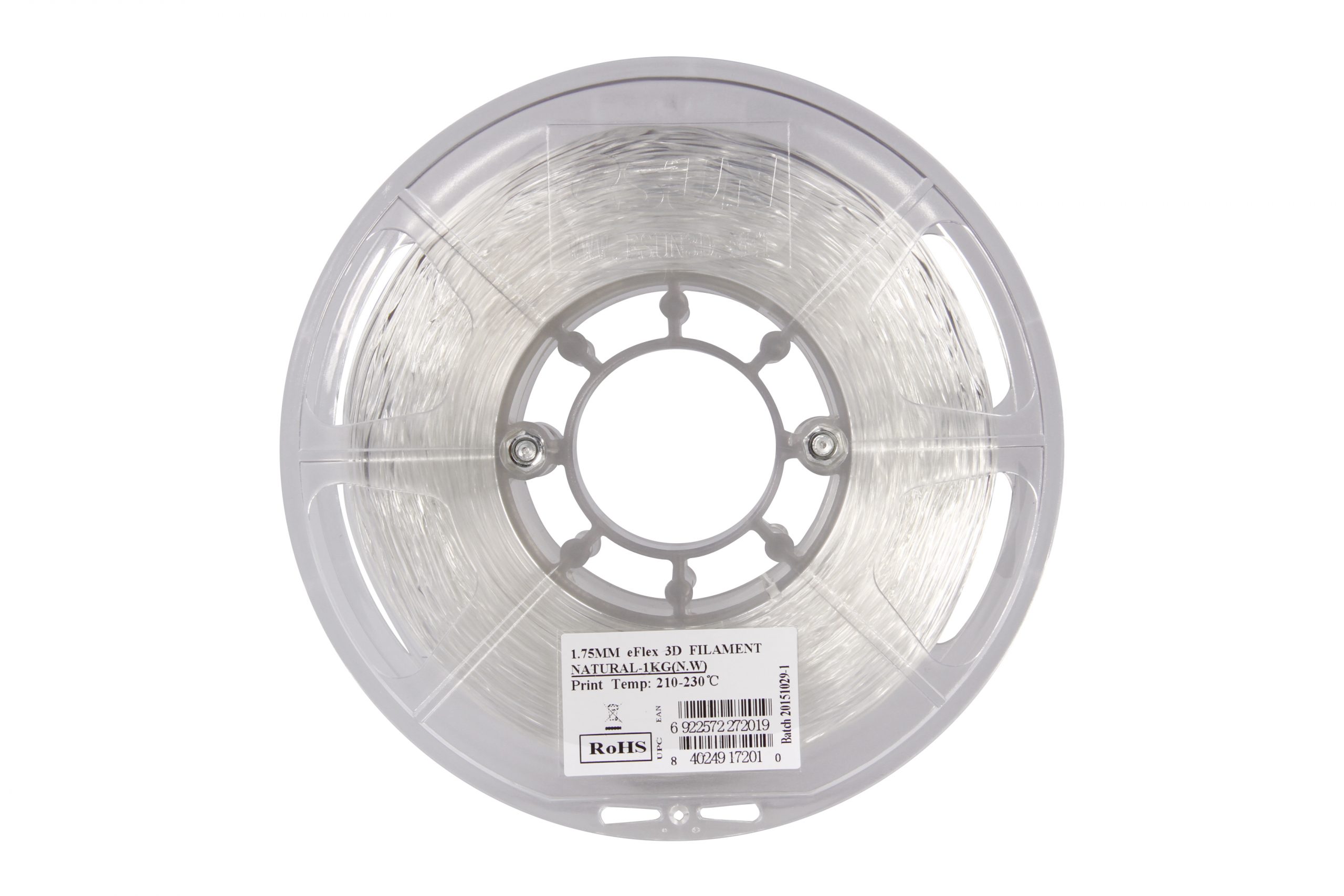

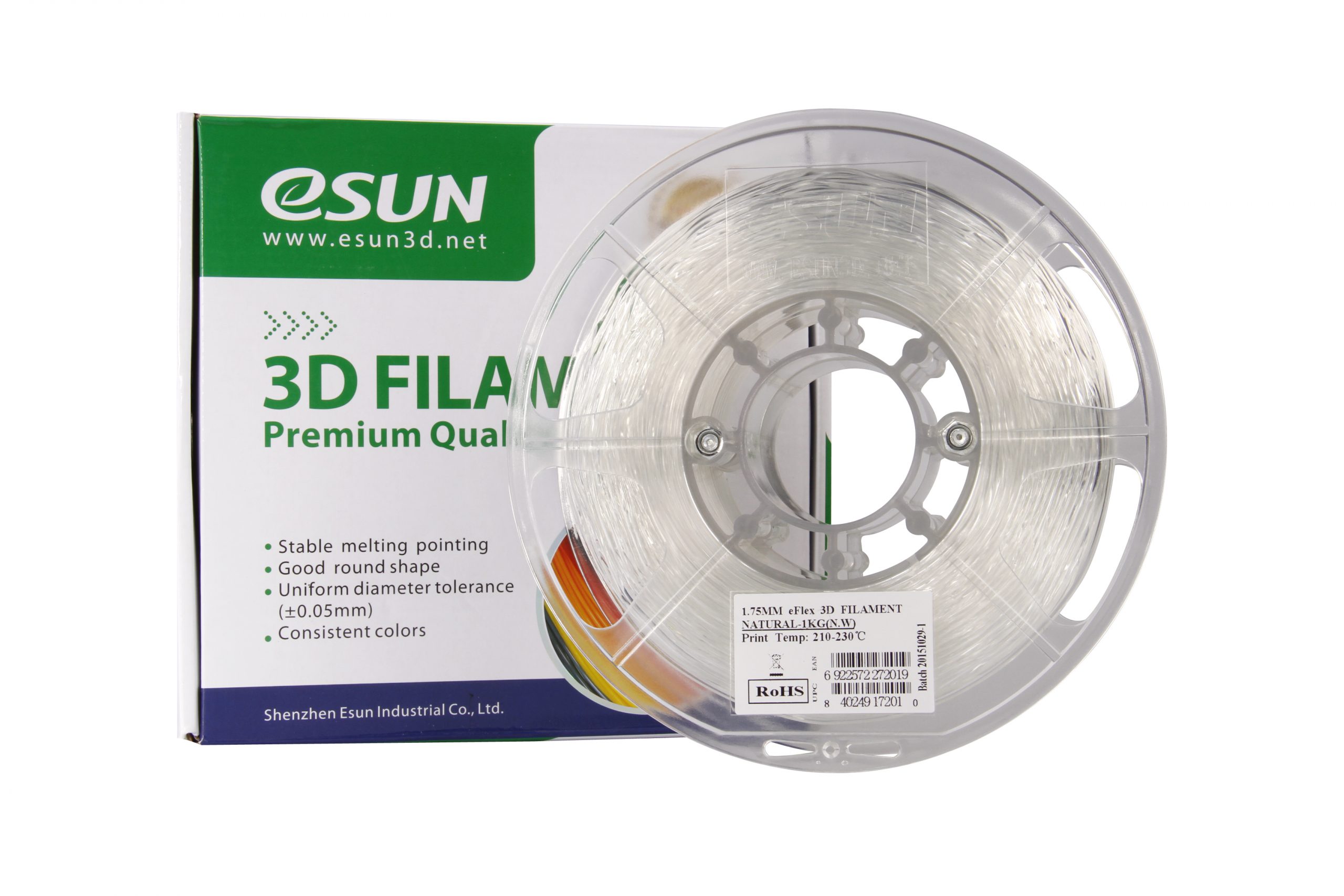

- 1 x eSun eFlex TPU 87A Flexible Filament (1.75mm, 0.5kg, Natural)
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | TPU |
| Color | Natural |
| Hardness | 87A (Shore A) |
| Filament Diameter | 1.75 mm |
| Weight | 0.5 kg |
| Filament Length | Approx. 165 m |
| Tensile Strength | 52 MPa |
| Density | 1.12 g/cm³ |
| Melt Flow Index | 5 g/10min (2.16kg) |
| Melting Point | 180°C |
| Dimensional Accuracy | ± 0.1 mm |
| Roundness Accuracy | ± 0.5 mm |
| Spool Dimensions | 200 mm (Outer Dia) x 60 mm (Width) |
| Shipping Weight | 0.7 kg |
