Description

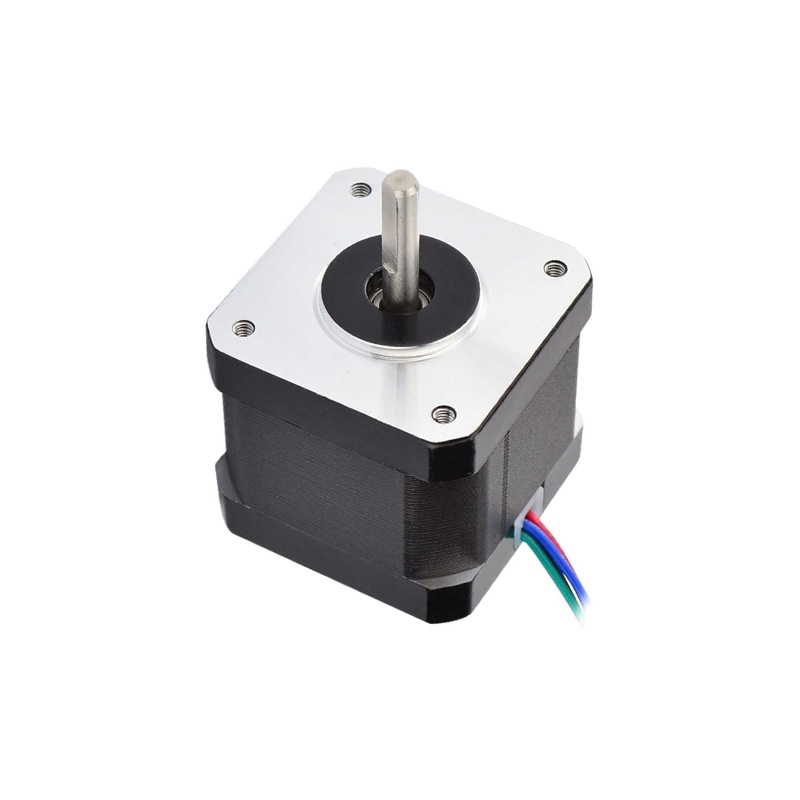

The E3D NEMA 17 Ultra-Slim Stepper Motor is a performance-driven solution specifically engineered to deliver high torque in a compact, lightweight form factor. With a body length of only 40mm, it is shorter and lighter than standard NEMA 17 motors, making it the perfect upgrade for Titan and Titan Aero extruders. Its 0.9° step angle provides double the resolution of traditional 1.8° motors (400 steps per revolution), ensuring superior precision for extrusion and light-duty axis movement. This motor is a trusted choice in the 3D printing community, offering an ideal balance of size, weight, and power.
Key Features
- Ultra-Slim & Powerful: Compact 40mm design that maintains high torque output, optimized for weight-sensitive applications.
- High-Resolution Motion: Features an accurate 0.9° step angle for 400 steps per revolution, delivering finer control and smoother extrusion.
- Extruder Optimized: Custom-made for compatibility with Titan and Titan Aero extruder systems.
- Ready-to-Install: Includes a high-quality 1-meter pluggable cable for easy connectivity and installation.
- Versatile Use: Excellent for direct drive extruders or dual-motor light-duty Z-axis configurations.

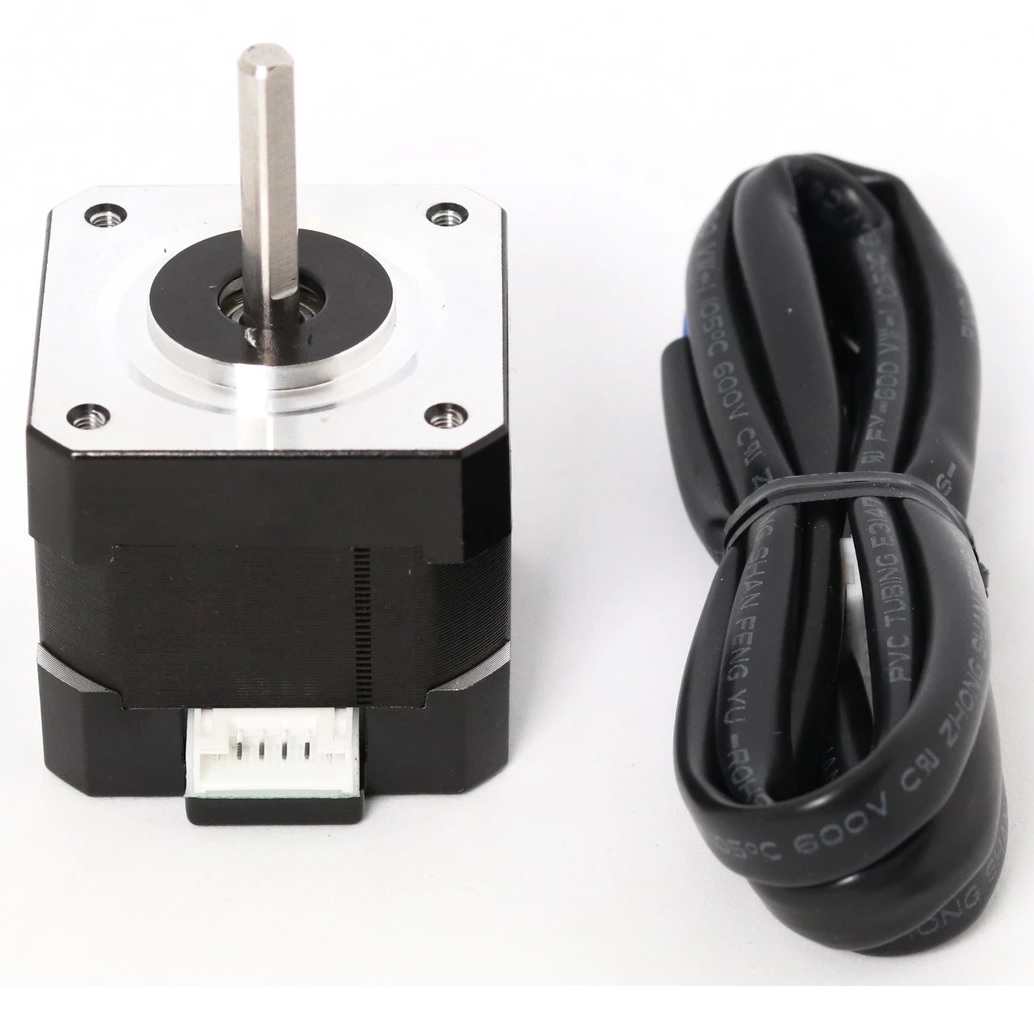

Package Includes
- 1 x E3D NEMA 17 Compact Powerful Stepper Motor
- 1 x Connecting Cable (1 Meter)
Technical Specifications
| Parameter | Specification |
|---|---|
| Item Type | NEMA 17 Stepper Motor |
| Step Angle | 0.9° |
| Steps Per Revolution | 400 |
| Rated Voltage | 2.8 V |
| Supply Current | 1.68 A |
| Holding Torque | 3.5 kg-cm |
| Shaft Diameter | 5 mm |
| Shaft Length | 25 mm |
| Motor Weight | 265 g |
