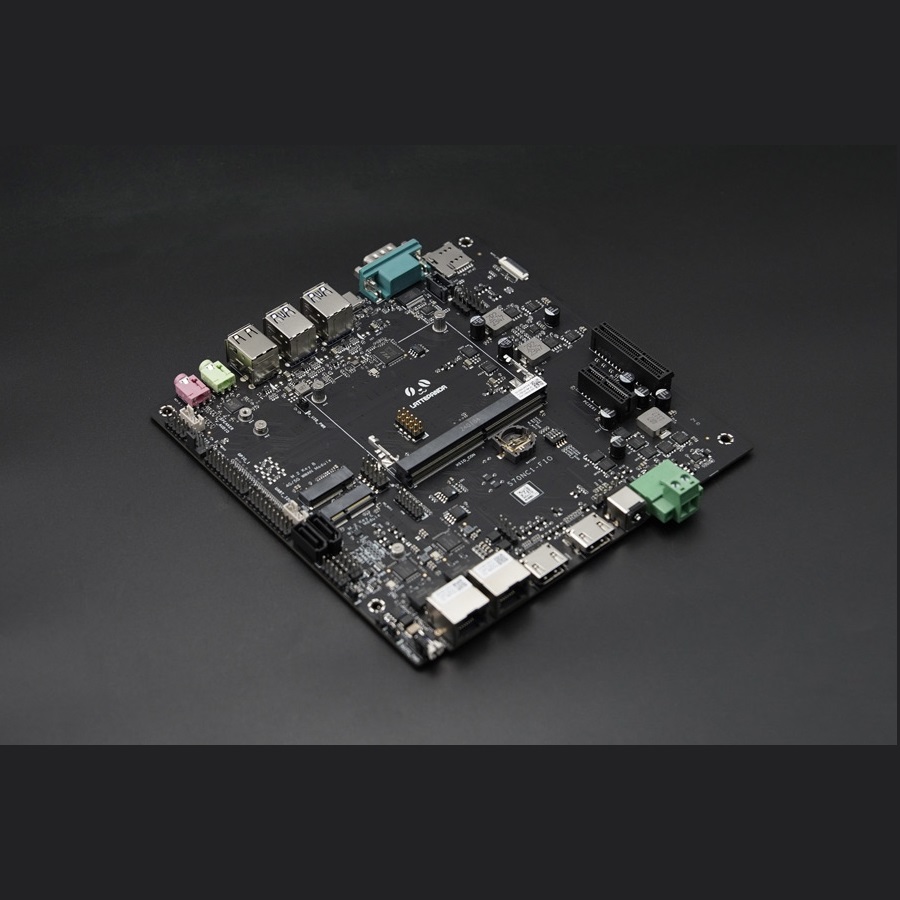

SPIDER Automation DFRobot Full-Function Evaluation Carrier Board for LattePanda Mu
Description
The DFRobot Full-Function Evaluation Carrier Board for LattePanda Mu Compute Module is a versatile and feature-rich development platform designed to maximize the processing power, versatility, and connectivity of the LattePanda Mu module. Built to support rigorous prototyping and embedded system evaluation, this carrier board provides a comprehensive range of industrial interfaces and networking options, making it an essential tool for engineers, developers, and makers.
Engineered with a compact yet highly accessible layout, the board integrates stable power delivery circuits for the LattePanda Mu and connected peripherals, ensuring continuous and reliable operation during intensive bench testing. With rich expansion headers, standard display outputs, and native communication buses, it bridges the gap between raw compute modules and fully deployed embedded applications.
Key Features
- Comprehensive I/O Port Selection: Offers a wide variety of input and output interfaces including GPIO, I2C, UART, and PWM headers for seamless connection with industrial sensors, actuators, and electronic peripherals.
- Robust Connectivity Options: Equipped with an RJ45 Ethernet port for stable wired networking, multiple high-speed USB ports, and an HDMI output for crisp display integration.
- Stable Power Regulation: Delivers a clean, regulated power supply directly to the LattePanda Mu Compute Module and connected auxiliary devices to guarantee reliable system operation.
- Flexible Expansion Headers: Includes dedicated expansion slots and pin headers for adding custom daughterboards, storage, and specialized functional modules.
- Compact Bench-Friendly Design: Features an optimized form factor designed to fit comfortably inside standard development enclosures and test setups.
- Prototyping Versatility: Tailored specifically to streamline firmware testing, driver debugging, and hardware validation for LattePanda Mu projects.
Benefits
- Accelerated Development Cycles: Eliminates custom carrier board design overhead, allowing engineers to begin software and hardware testing immediately.
- Full Module Utilization: Breaks out all native pins and capabilities of the LattePanda Mu into accessible, standard connectors.
- Reliable Test Environment: Robust power management and sturdy physical construction prevent unexpected brownouts during heavy component testing.
- Scalable Architecture: Modular headers support future hardware upgrades and peripheral additions as project requirements evolve.
Applications
- Embedded System Prototyping: Validating custom software builds, operating system drivers, and automation scripts using the LattePanda Mu.
- Industrial Edge Computing Hubs: Deploying test nodes that require local processing power combined with wired networking and serial communication.
- Advanced Robotics Control: Interfacing motor drivers, cameras, and feedback sensors through onboard GPIO, PWM, and USB ports.
- Laboratory & R&D Workbenches: Serving as a flexible evaluation rig for electronics testing, data acquisition, and proof-of-concept design.
Package Includes
- 1 x DFRobot Full-Function Evaluation Carrier Board for LattePanda Mu Compute Module
Technical Specifications
| Parameter | Specification |
|---|---|
| Item Type | Evaluation Carrier Board / Development Platform |
| Brand | SPIDER Automation (DFRobot Platform) |
| Target Compute Module | LattePanda Mu Compute Module |
| I/O Interfaces | GPIO, I2C, UART, PWM Pin Headers |
| Connectivity & Networking | RJ45 Ethernet Port, Multiple USB Ports, HDMI Display Output |
| Expansion Architecture | Onboard Expansion Headers and Slots for Custom Modules |
| Net Product Weight | Approx. 0.30 kg |
| Shipping Weight | 0.425 kg |
| Package Shipping Dimensions | 29 cm × 21 cm × 5 cm |
