Degson Single Relay-DRPB-1C-D24-06A(H)-30070000094 | 24VDC 12A SPDT Industrial Power Relay | for Control Panels & Electrical Automation
Description

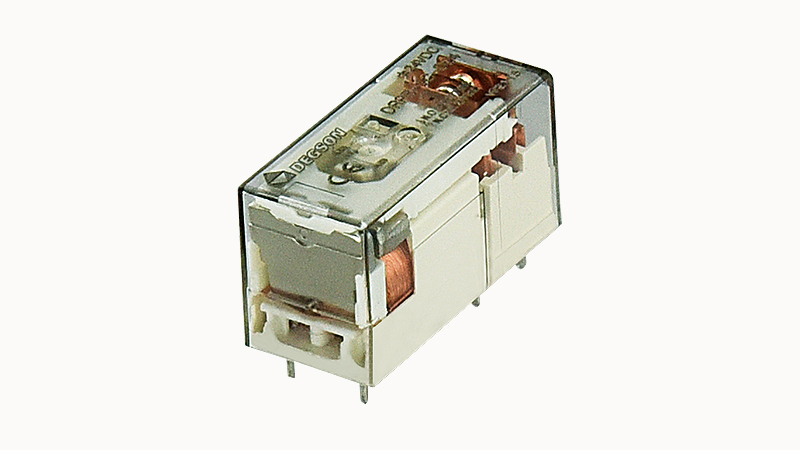

The Degson Single Relay-DRPB-1C-D24-06A(H)-30070000094 is a compact and powerful relay designed to control high currents up to 12A. This relay features a single changeover contact, an integrated test lever, and an indicator light for easy monitoring and manual testing.
It is rated for a control voltage of 24VDC, making it suitable for a wide range of industrial automation applications. With a small volume and robust construction, this relay is ideal for use in tight control panel spaces and demanding operational environments. Whether you need to control auxiliary motors, indicator lamps, or heavy electrical loads, the Degson Single Relay-DRPB-1C-D24-06A(H)-30070000094 is a reliable and efficient choice.
Features & Technical Specifications
- Contact Configuration: 1 Changeover (CO / SPDT)
- Contact Rating: 12A at 250VAC/30VDC (Resistive load); 7A at 250VAC (Inductive load)
- Coil Voltage: 24V DC
- Coil Power Consumption: 0.36 W
- Contact Resistance: ≤ 100 mΩ
- Insulation Resistance: ≥ 100 MΩ (at 500VDC)
- Dielectric Strength: 5000VAC between coil and contacts; 1000VAC between open contacts
- Mechanical & Electrical Life: 10 million operations (no load); 100,000 operations at rated load
- Ambient Operating Temperature: -40°C to +85°C
Benefits
- Diagnostic Convenience: Onboard test lever allows maintenance technicians to manually actuate the circuit without powering the control coil.
- Electrical Isolation: High dielectric strength safeguards sensitive low-voltage control electronics from high-voltage load transients.
- Long Operational Lifespan: High-grade silver alloy contacts ensure reliable switching performance across millions of mechanical cycles.
Applications
- Industrial Control Panels & PLC Rigs: Signal isolation and heavy actuator switching for programmable logic controllers and automation cabinets.
- HVAC & Environmental Systems: Switching control for compressor relays, fan blowers, heating elements, and damper actuators.
- Motor & Solenoid Control Loops: Intermediate switching interface for small industrial motors, directional solenoids, and magnetic contactor coils.
- Lighting & Power Distribution Boxes: Automated switching for commercial lighting circuits, emergency indicators, and auxiliary power rails.
- Machinery Safety Interlocks: Reliable electromechanical switching for safety shutdown loops and equipment monitoring lines.
Package Includes
- 1 x Degson Single Relay-DRPB-1C-D24-06A(H)-30070000094
Specifications
| Parameter | Specification |
|---|---|
| Item Type / Series | Industrial Power Relay / DRPB Series |
| Manufacturer Part No. | Degson 30070000094 (DRPB-1C-D24-06A(H)) |
| Contact Form / Type | 1 Changeover (CO / SPDT) |
| Coil Operating Voltage | 24V DC |
| Contact Current Rating | 12A (250VAC / 30VDC Resistive) | 7A (250VAC Inductive) |
| Diagnostic Features | Built-in Test Lever & Status Indicator Light |
| Operating Temperature Range | -40 °C to +85 °C |
| Physical Dimensions (L x W x H) | 27 × 12.7 × 20 mm | Net Weight: ~10g |
| Shipping Dimensions & Weight | 6 × 4 × 2 cm | Shipping Weight: 0.015 kg |
