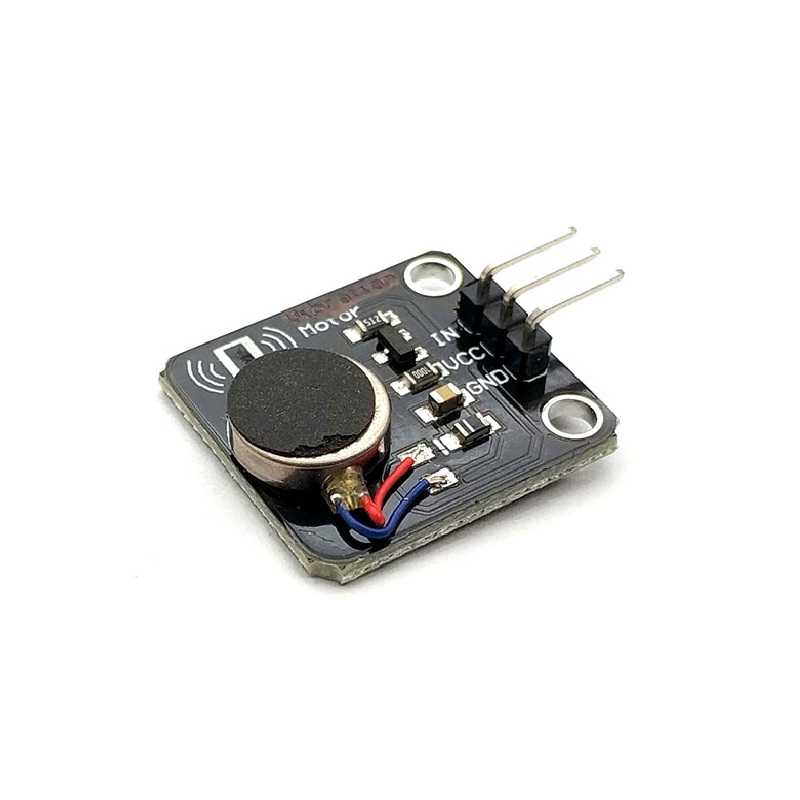

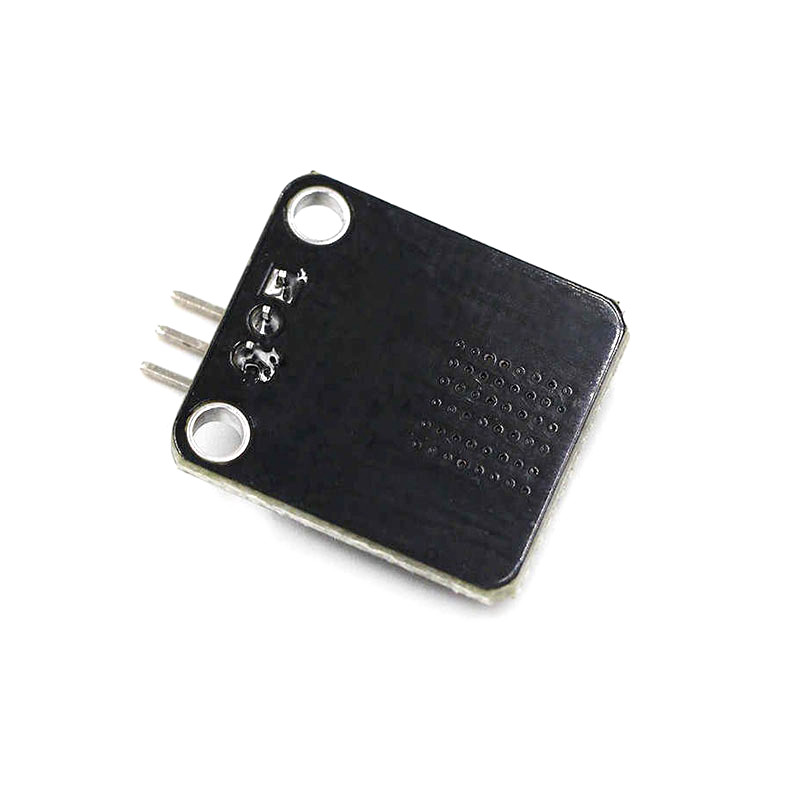

SPIDER Automation DC Vibration Motor Module 5V | MOS Tube Trigger Haptic Board | Arduino Compatible Vibration Alarm
Description
Designed for rapid prototyping and interactive electronic builds, the SPIDER Automation DC Vibration Motor Module provides an efficient, plug-and-play solution for non-audible alerts and haptic feedback. Featuring an integrated MOS tube switching circuit, this module enables precise control via digital high-level triggers and PWM signal modulation, allowing makers to dynamically adjust vibration intensity just like a mobile phone in silent mode. Operating on a versatile 3V to 5.3V DC power supply, the board houses a responsive 10mm flat vibration motor mounted neatly onto a compact breakout PCB with standard mounting holes. Fully compatible with popular microcontroller platforms like Arduino UNO and Mega, it streamlines the conversion of electrical signals into reliable mechanical vibration for wearable tech, alarms, and smart notification devices.
Key Features
- MOS Tube Switching Circuit: Advanced high-level trigger and low-level cutoff design ensures clean digital actuation and safety.
- PWM Intensity Control: Supports pulse-width modulation input to dynamically regulate motor vibration strength and patterns.
- Microcontroller Compatibility: Tailored for seamless integration with standard development boards such as Arduino UNO R3 and Mega2560.
- Integrated Flat Motor Architecture: Built-in 10mm flat vibration motor housed securely on a compact 21×23.5mm circuit board.
- Convenient Mounting Layout: Equipped with standard 3mm fixed mounting holes and a precise 15mm pitch for easy enclosure fitting.
Benefits
- Plug-and-Play Prototyping: Eliminates tedious breadboard wiring for discrete coin motors, accelerating custom electronics assembly.
- Versatile Power Operation: Wide operational voltage span (3V to 5.3V DC) accommodates standard 3.3V and 5V system logic rails.
- Quiet Notification Control: Generates effective, non-audible physical alerts suited for noise-sensitive operating environments.
Applications
- Microcontroller Projects: Arduino, Raspberry Pi Pico, and ESP-based DIY maker electronics and educational kits.
- Wearable Technology: Prototype smart bands, haptic feedback cuffs, and interactive garments.
- Alarm & Alert Systems: Silent notification modules, remote control buzzers, and error-warning feedback panels.
- Interactive Hardware: Vibration-sensitive toys, gaming peripherals, and responsive physical computing installations.
Package Includes
- 1 x DC Motor Mobile Phone Vibration Motor Alarm Module – Black
Specifications
| Parameter | Specification |
|---|---|
| Item Type / Module Style | Vibration Type / MOS Trigger Control Module |
| Brand | SPIDER Automation |
| Operating Voltage Range | 3.0V to 5.3V DC |
| Rated Voltage | 5.0V DC |
| Starting Voltage | 3.7V DC |
| Current Rating | 60 mA to 90 mA (Up to 60 mA rated, up to 90 mA starting) |
| Rated Speed | 9,000 RPM |
| Motor Diameter | 10 mm (Flat Motor) |
| Trigger Mechanism | MOS Tube (High-level trigger, low-level cutoff) |
| Board Dimensions (L × W × H) | 23.5 × 21 × 8 mm |
| Mounting Hole Specs | 3 mm Diameter, 15 mm Pitch |
| Module Weight | 3 g |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 3 × 2.5 × 2 cm |
