SPIDER Automation XBee Shield | Wireless RF Expansion Board | For Arduino Microcontrollers
Description

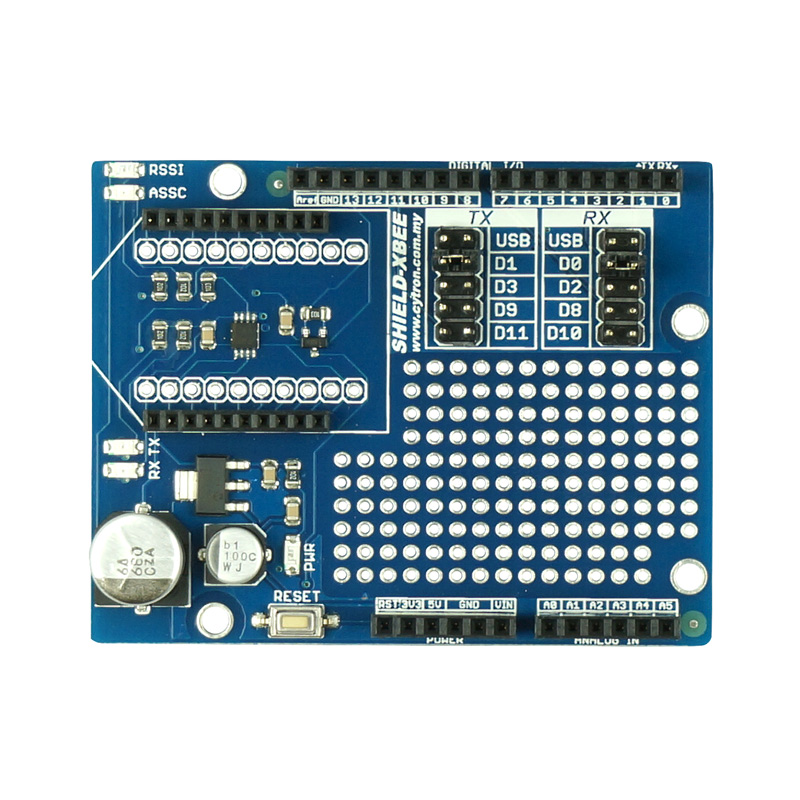

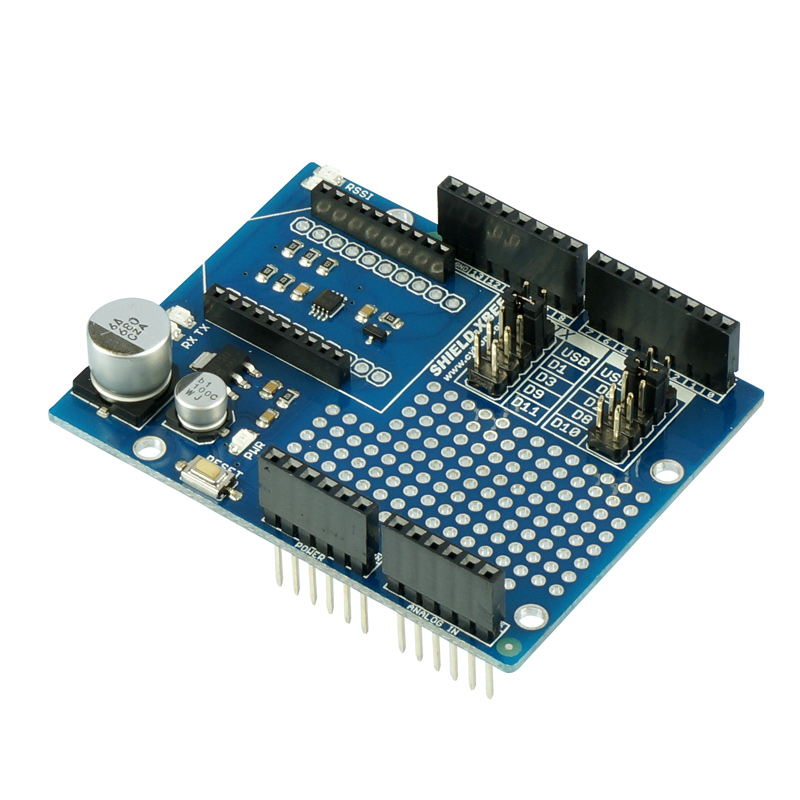

The SPIDER Automation XBee Shield provides an effortless way to integrate wireless mesh, point-to-point, or Wi-Fi communication into your Arduino projects. Designed to accommodate any compatible XBee module—including Series 1, Series 2, Pro versions, BlueBee, and XBee-WiFi—this shield delivers reliable RF connectivity without requiring complex external wiring.
Engineered for maximum hardware flexibility, the shield features jumper-selectable serial pins that allow you to route the XBee’s DIN and DOUT lines to standard hardware UART pins (D0, D1), soft serial digital pins (D2, D3, D8, D9, D10, D11), or directly to the USB UART line. With onboard 3.3V voltage regulation, integrated logic level shifting, diagnostic status LEDs, and a prototyping area with 0.1-inch spaced holes, it offers a complete platform for building wireless sensor networks and IoT devices.
Key Features
- Direct Arduino Stackability: Mounts cleanly onto any development board featuring a standard Arduino layout (Uno, Mega, Leonardo, Duemilanove).
- Jumper-Selectable Serial Routing: Connect XBee serial lines to hardware UART, USB UART, or selectable digital pins (D0, D1, D2, D3, D8, D9, D10, D11).
- Onboard Voltage Regulation: Steps down 5V Arduino power to a stable 3.3V DC supply required by XBee transceiver modules.
- Integrated Level Shifting: Automatically translates logic levels between 5V microcontrollers and 3.3V XBee DIN/DOUT pins to prevent hardware damage.
- Comprehensive Status LEDs: Dedicated visual indicators for Power, DIN activity, DOUT activity, RSSI (Signal Strength), and DIO5 (ASSOC).
- Prototyping Area & Reset Access: Includes an extended physical reset button and a dedicated 0.1-inch gridded prototyping space for custom circuit additions.
Benefits
- Simplifies Wireless Integration: Eliminates messy breadboard circuits when adding ZigBee, RF, or Wi-Fi telemetry to microcontrollers.
- Protects Sensitive RF Hardware: Built-in level shifting and power regulation ensure safe, long-term operation of expensive wireless modules.
- Adapts to Custom Code Architectures: Flexible jumper settings let you choose between hardware serial and software serial without rewiring.
-
Provides Immediate Visual Feedback: Diagnostic LEDs allow you to monitor packet transmission, signal strength, and pairing status at a glance.
Applications
-
- Wireless Sensor Networks (WSN): Deploying remote environmental monitoring nodes that transmit data back to a central base station.
- IoT Home Automation Hubs: Controlling wireless relays, smart lighting, and automated appliances over RF links.
- Long-Range Robotics Telemetry: Sending real-time control commands and sensor feedback to mobile robotic rovers.
- Industrial Data Acquisition: Collecting machine performance metrics from isolated factory floor locations.
- Educational Wireless Labs: Teaching students wireless communication protocols, packet routing, and mesh networking principles.
Package Inclusions
- 1 x SPIDER Automation Cytron XBee Shield (pre-installed headers)
Technical Specifications
| Item Type | Wireless RF & XBee Expansion Shield |
| Brand / Series | SPIDER Automation (Cytron XBee Compatible) |
| Controller Compatibility | Arduino Uno, Leonardo, Mega, Duemilanove, & Standard Footprint Boards |
| Supported Modules | All XBee Modules (Series 1, Series 2, Standard, Pro, XBee-WiFi, & BlueBee) |
| Input Operating Voltage | 3.3V to 5V DC (Regulated Onboard to 3.3VDC for XBee) |
| Serial Communication Pins | Jumper Selectable: UART (D0/D1), Digital Pins (D2, D3, D8, D9, D10, D11), or USB UART |
| Logic Level Shifting | Built-In Bi-Directional Level Shifter on DIN and DOUT Pins |
| Onboard Diagnostic LEDs | Power, DIN Activity, DOUT Activity, RSSI (Signal Strength), & DIO5 (ASSOC) |
| Auxiliary Features | Brought-Out Reset Button & 0.1″ Spaced Prototyping Grid Area |
| Physical Dimensions | 90 × 54 × 20 mm (L × W × H) |
| Net Board Weight | 50 g |
| Shipping Weight | 0.055 kg |
| Shipping Dimensions | 8 × 6 × 4 cm |
