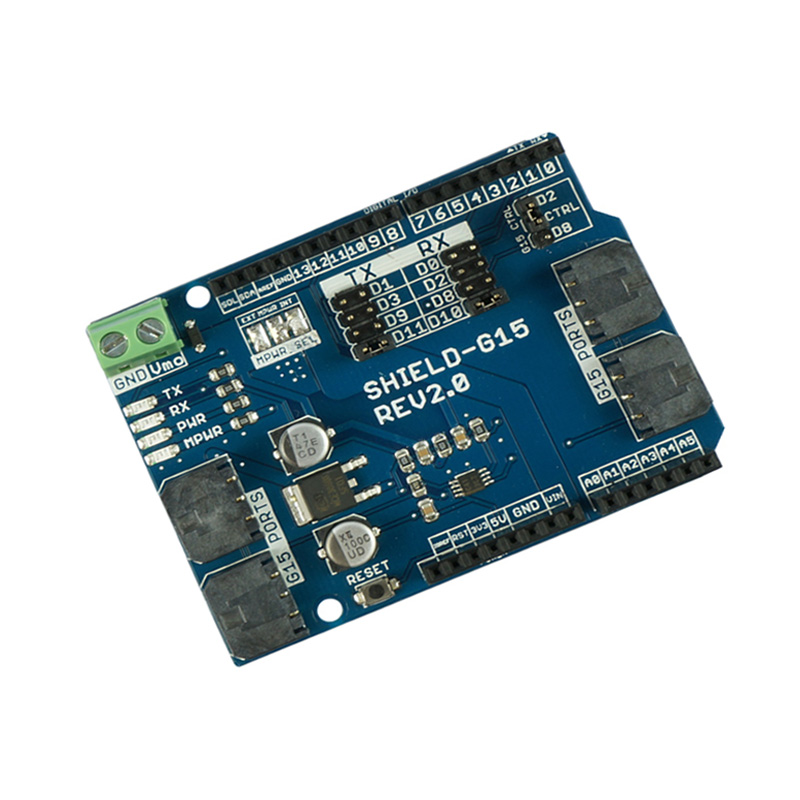

SPIDER Automation Cytron G15 Shield V2.0 | Serial Servo Controller | For Arduino Microcontrollers
Description
The SPIDER Automation Cytron G15 Shield (Version 2.0) is an advanced motion control expansion board designed to interface Arduino microcontrollers directly with Cytron’s G15 Cube Servos and standard servo motors. Building upon the success of its predecessor, the Rev2.0 board incorporates significant enhancements including dedicated communication indicator LEDs and flexible serial configuration jumpers.
Featuring four onboard G15 serial servo ports, the shield enables multiple servo units to be daisy-chained in series effortlessly. Users can select power sources via jumper configuration—feeding the servos from the Arduino’s VIN line or an isolated external power port equipped with polarity protection. Complete with stackable I/O headers, selectable digital control pins, and logic status LEDs, it provides a comprehensive platform for robotics and automated articulation projects.
Key Features
- Four G15 Serial Servo Ports: Accommodates multiple Cytron G15 Cube Servos arranged in a daisy-chained serial architecture.
- Rev2.0 Serial Flexibility: Onboard mini jumpers allow users to select between hardware serial and software serial communication channels.
- Real-Time Activity Indicators: Integrated TX and RX indicator LEDs provide immediate visual feedback on serial data transmission.
- Polarity-Protected External Power: Dedicated external power terminal safely channels high current to servos while protecting against reverse wiring.
- Selectable Control Pins: Digital control pins can be configured easily using mini jumpers to prevent hardware conflicts.
- Stackable I/O & Reset Access: Features stackable side header pins and a convenient onboard Arduino reset push button.
Benefits
- Simplifies Multi-Servo Wiring: Daisy-chaining capability eliminates messy parallel wiring harnesses when controlling multiple serial actuators.
- Enhanced Debugging Clarity: Dedicated communication and power LEDs simplify troubleshooting during code deployment.
- Protects Microcontroller Logic: Separates high-current servo power paths from sensitive 5V board logic via external power routing.
-
Maintains Board Expandability: Stackable header design permits additional shields to be piled on top without losing access to I/O lines.
Applications
-
- Advanced Robotic Articulated Arms: Controlling multi-joint robotic manipulators using daisy-chained G15 serial servos.
- Bipedal & Quadruped Walking Robots: Coordinating precise leg movements and servo feedback loops in walking machine builds.
- Interactive Pan-Tilt Camera Rigs: Positioning high-torque camera mounts and sensor turrets with exact angular precision.
- Animatronic Figures & Displays: Driving expressive mechanical joints and automated museum exhibits.
- Educational Robotics Labs: Teaching students serial bus communication and advanced motion control programming.
Package Inclusions
- 1 x SPIDER Automation Cytron G15 Shield V2.0
Technical Specifications
| Item Type | Serial Servo Controller & Expansion Shield |
| Brand / Series | SPIDER Automation (Cytron G15 Compatible) |
| Shield Version | Rev 2.0 (Includes TX/RX LEDs & Serial Selection Jumpers) |
| Controller Compatibility | Arduino UNO, Duemilanove, Mega, Leonardo, & Pin-Compatible Mainboards |
| Servo Support Ports | 4 × G15 Cube Servo Ports (Supports Daisy-Chain Series Connection) |
| Power Supply Options | Arduino VIN or External Power Port with Reverse Polarity Protection |
| Serial Communication Modes | Selectable Hardware Serial or Software Serial via Mini Jumpers |
| Onboard Indicators | Logic Power LED, Servo Power LED, TX Activity LED, RX Activity LED |
| Auxiliary Features | Arduino Reset Button, Stackable I/O Headers, Selectable Digital Control Pins |
| Physical Dimensions | 68 × 54 mm (L × W) |
| Net Board Weight | 24 g |
| Shipping Weight | 0.027 kg |
| Shipping Dimensions | 10 × 6 × 3 cm |
