Description
The Creality 3D Touch Auto-Leveling Kit is a high-precision upgrade designed to revolutionize your printing experience on the Ender-3 V2. By utilizing an advanced solenoid and Hall effect sensor, this kit accurately measures the tilt and topography of your print surface, allowing the printer to compensate for uneven beds automatically. This ensures a perfect first layer every time, significantly reducing print failure rates and improving overall dimensional accuracy.
Designed for universal compatibility and ease of use, this sensor operates with standard RC servo and micro-switch protocols, making it suitable for almost any control board. Whether you are printing on glass, metal, or wood, the 3D Touch provides reliable performance in a compact, robust structure. It is the ideal solution for users looking to simplify their workflow and achieve professional-grade results without manual bed adjustments.
Key Features
- High-Precision Leveling: Intelligent sensor design ensures accurate bed mapping, leading to superior first-layer adhesion and consistency.
- Universal Compatibility: Uses standard I/O (PWM/Z-min) control, making it compatible with most 3D printer control boards.
- Versatile Surface Support: Works effectively with nearly any bed material, including glass, wood, and metal plates.
- Energy Efficient: Features an innovative, ultra-power-saving solenoid design.
- User-Friendly Integration: Compact, simple structure allows for straightforward installation on the Ender-3 V2.

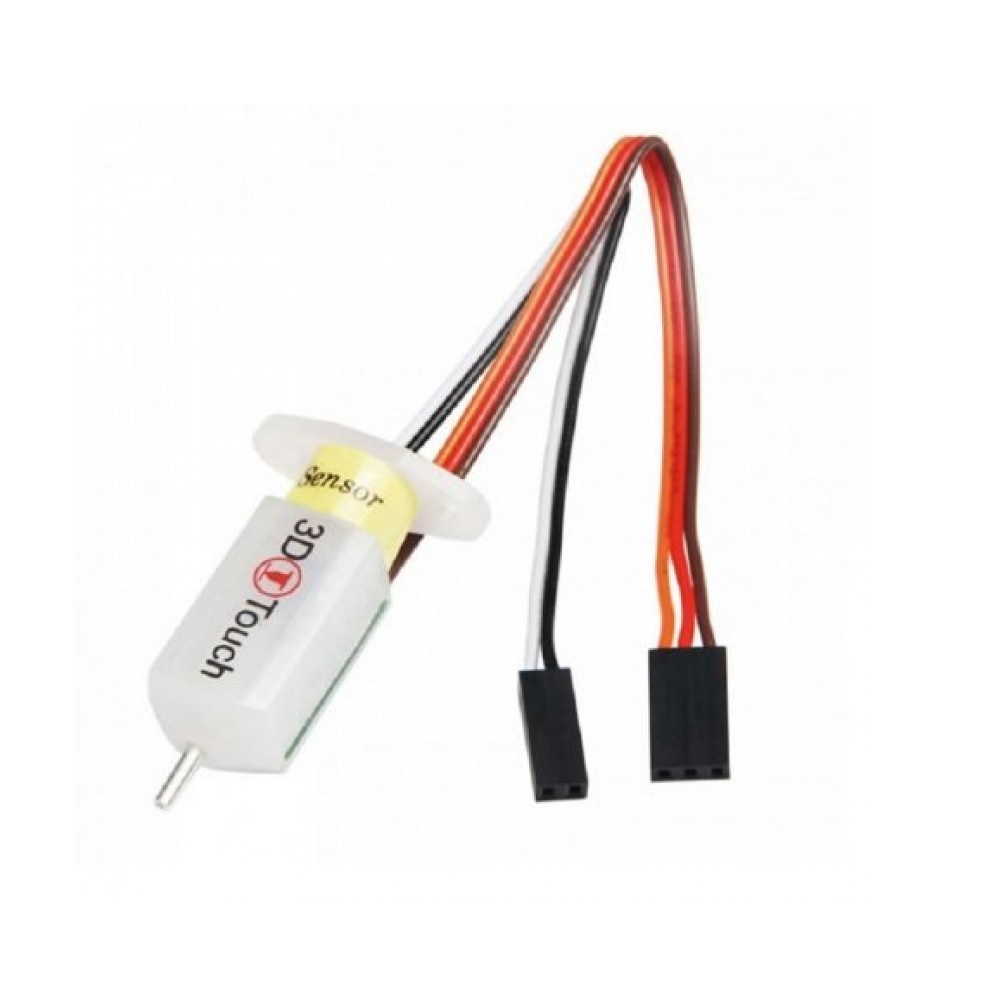

Wiring Guide
- 3-Pin Connector: Brown (GND), Red (+5V), Orange (Control Signal)
- 2-Pin Connector: Black (GND), White (Z-min)
Technical Specifications
| Parameter | Specification |
|---|---|
| Compatibility | Creality Ender-3 V2 |
| Operating Voltage | 3V to 5V |
| Rated Current | 300 mA |
| Cable Length | 150 mm |
| Shipping Weight | 0.09 kg |
| Shipping Dimensions | 8 x 5 x 3 cm |
