Description

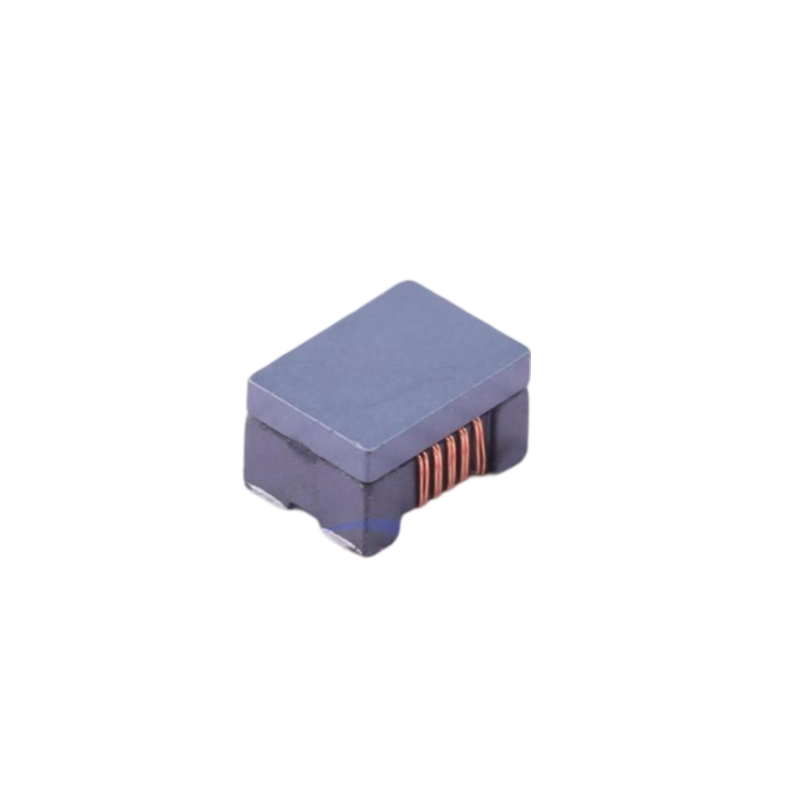

The EMTEK CMF4532F-601-2P-T is a high-performance Common Mode Filter designed to provide effective electromagnetic interference (EMI) suppression in high-speed data and signal lines. Housed in a standard 1812 surface-mount package, this component is engineered to filter out common-mode noise while allowing differential-mode signals to pass with minimal attenuation.
With an impedance rating of 600Ω at 100MHz and a robust 1.4A current rating, this filter is an ideal solution for stabilizing power lines, USB interfaces, and high-speed communication buses in consumer, industrial, and automotive electronics. Its compact design ensures excellent performance in space-constrained PCB layouts while maintaining compliance with RoHS standards.
Key Features
- Effective EMI Suppression: Specifically designed to eliminate common-mode noise from signal and power lines.
- Optimized Impedance: Provides a stable 600Ω impedance at 100MHz, ideal for high-speed signal integrity.
- High Current Capability: Rated for up to 1.4A, making it suitable for both signal lines and moderate-power DC supply lines.
- Compact 1812 Footprint: Standard SMD package ensures easy integration into dense circuit board designs.
- Reliable Performance: Robust construction for long-term electrical stability and signal noise reduction.
Package Includes
- 1 x EMTEK CMF4532F-601-2P-T Common Mode Filter (600Ω, 1.4A)
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | CMF4532F-601-2P-T |
| Impedance | 600Ω @ 100MHz |
| Current Rating | 1.4A |
| Voltage Rating | 50V |
| Package Size | 1812 |
| Shipping Weight | 0.002 kg |
