Description

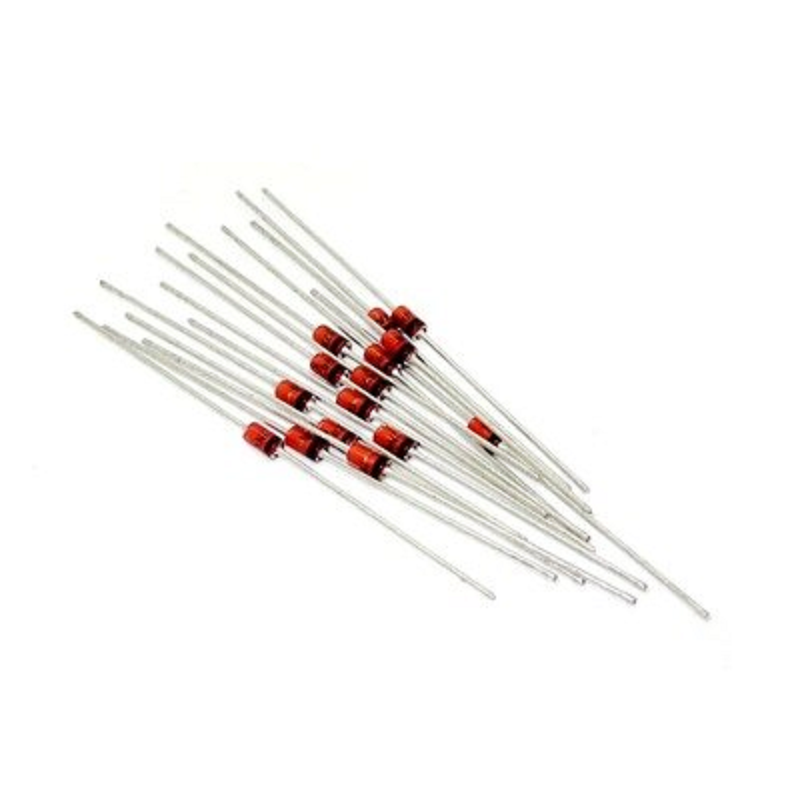

The BZX55C5V1 is a precision-engineered small-signal Zener diode, ideal for voltage regulation and signal clipping in electronic circuitry. With a nominal Zener voltage range of 4.8V – 5.4V, it is a versatile component for maintaining stable voltage levels in sensitive industrial and control systems.
Engineered for professional-grade performance, the BZX55C5V1 offers an ultra-low reverse leakage current of < 0.1μA and excellent thermal resilience, with an operating junction temperature of up to 175°C. These features ensure consistent signal integrity and circuit stability in demanding environments. This pack of 40 units is a high-value solution for your professional R&D labs, maintenance workshops, or small-batch production needs.
Key Features
- Targeted Regulation: Stable Zener voltage range of 4.8V – 5.4V
- High Efficiency: Minimal reverse leakage current (< 0.1μA) for power-sensitive circuits
- Thermal Robustness: Reliable operation in harsh conditions up to 175°C
- Controlled Stability: Excellent temperature coefficient (-0.02 to 0.02 %/K) for steady output drift
- Value Bundle: Convenient 40-pack, optimized for maintenance and project requirements
Applications
- Voltage reference and stabilization stages
- Signal clipping and protective clamping
- Over-voltage protection in industrial automation
- Signal processing for control systems
- Laboratory prototyping and electronic repair
Package Includes
- 40 x BZX55C5V1 Zener Diodes
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | BZX55C5V1 |
| Zener Voltage Range | 4.8 V – 5.4 V |
| Power Rating | 0.5 W (1/2W) |
| Reverse Leakage Current | < 0.1 μA |
| Max. Junction Temp | 175°C |
| Quantity | Pack of 40 |
