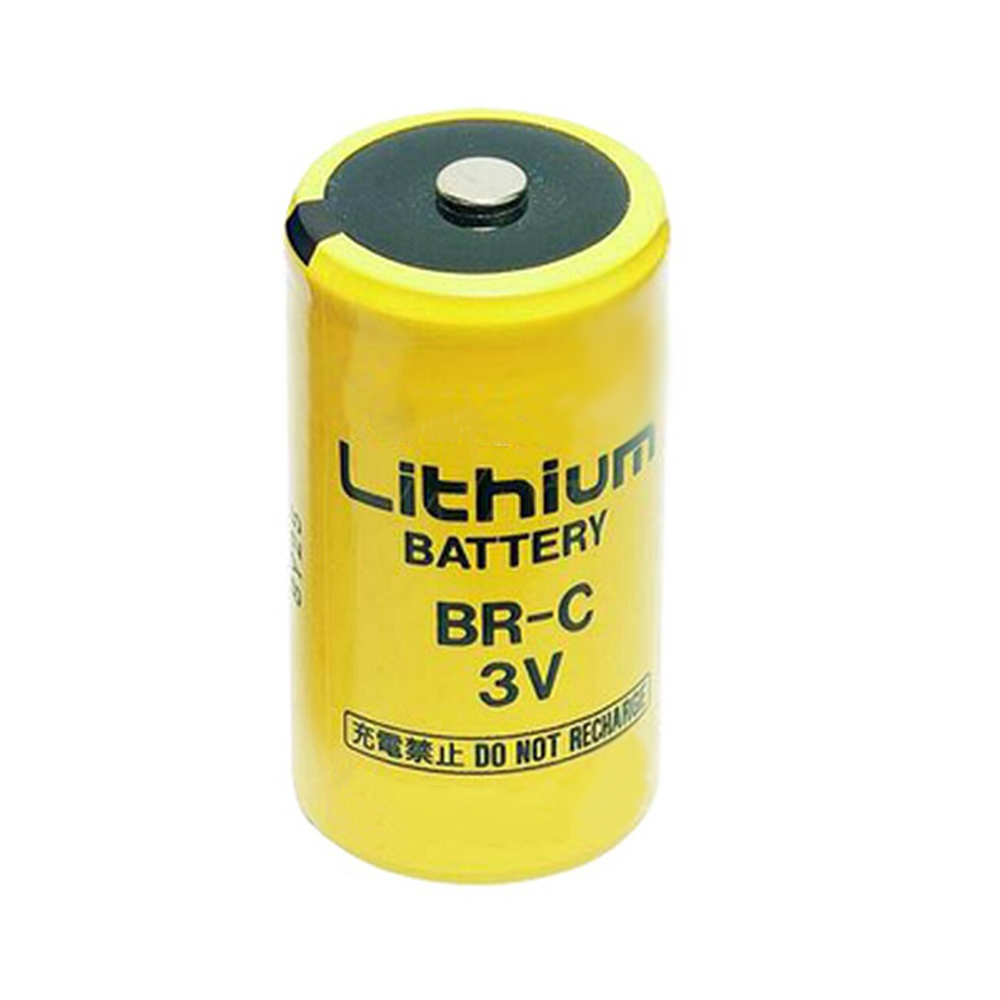

SPIDER Automation | BR-C 3V 5000mAh Lithium Battery | Industrial C-Size Memory Backup Cell
The SPIDER Automation BR-C Lithium Battery is an industrial-grade 3V battery designed for electronic equipment requiring long-term standby power and memory backup. Its 5000mAh capacity makes it suitable for low-power circuits that need to retain stored information and operating parameters during periods when the main equipment supply is unavailable.
Featuring a C-size cylindrical format and low self-discharge characteristics, this battery is intended for applications where extended storage life and dependable backup operation are important. It is particularly relevant to CNC equipment, industrial control systems, electronic meters and other memory-retention devices.
Technical Features & Functional Characteristics
- Industrial Lithium Battery: Designed for equipment requiring a dedicated long-term backup power source.
- High Energy Capacity: The 5000mAh rated capacity supports extended standby operation in compatible low-power circuits.
- Stable Voltage Characteristics: Provides a nominal 3V supply for electronic systems designed for this battery type.
- Low Self-Discharge: Helps preserve stored energy during periods of non-use.
- Long Storage Life: Designed for extended shelf storage, with a stated shelf life of up to 10 years under suitable conditions.
- Broad Temperature Capability: Supports applications operating across a wide range of ambient temperatures.
- C-Size Cylindrical Format: Provides a standardized physical form for compatible battery compartments and equipment.
Applications
The BR-C battery is intended for industrial and electronic systems where a long-lasting backup supply is required. Its application suitability depends on the equipment’s voltage, current consumption and battery-interface requirements.
- CNC Machine Memory Backup: Backup power for retaining stored machine parameters and memory data in compatible CNC systems.
- Industrial Controller Backup: Standby battery supply for supported industrial control electronics.
- Electronic Meters: Backup power for compatible metering equipment and stored readings.
- Smoke Detectors: Battery supply for detector designs specifically compatible with BR-C cells.
- Programmable Equipment: Memory-retention power for compatible programmable electronic systems.
- Industrial Monitoring Systems: Backup supply for low-power monitoring and data-retention circuits.
- Automation Equipment: Battery backup for compatible automation controllers and electronic modules.
- Memory Retention Circuits: Maintains backup power for electronic circuits designed around a 3V lithium cell.
Package Contents
- 1 × BR-C 3V 5000mAh Lithium Battery
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Industrial Lithium Battery |
| Series | BR Series |
| Model Number | BR-C 3V |
| Battery Chemistry | Lithium |
| Nominal Voltage | 3V |
| Rated Capacity | 5000mAh (5Ah) |
| Battery Size | C Size |
| Cell Configuration | Single Cell |
| Diameter | 26mm |
| Height | 50.5mm |
| Dimensions (Diameter × Height) | 26 × 50.5mm |
| Self-Discharge Characteristic | Low Self-Discharge |
| Shelf Life | Up to 10 Years under suitable storage conditions |
| Operating Temperature Range | -40°C to +85°C |
| Primary Application | Industrial Memory Backup and Standby Power |
| Package Quantity | 1 Battery |
Connection & Operating Recommendations
Use the BR-C battery only in equipment designed for a compatible 3V lithium cell and matching C-size battery compartment. For memory backup applications, correct polarity and compatibility with the equipment’s backup circuit are essential for reliable operation.
- Voltage Compatibility: Confirm that the equipment is designed for a 3V lithium battery before installation.
- Polarity: Match the positive and negative battery terminals with the markings in the equipment’s battery compartment.
- Physical Fit: Ensure the C-size cell dimensions are compatible with the available battery holder or compartment.
- Memory Backup Circuit: Use the battery with a backup input specifically designed for the selected lithium battery chemistry and voltage.
- Replacement Planning: Follow the equipment manufacturer’s battery replacement interval and maintenance procedure, particularly for CNC memory-retention systems.
- Storage: Store the battery in a cool, dry location within its specified temperature limits, away from direct heat and conductive objects.
- Battery Handling: Do not recharge, short-circuit, disassemble or expose the cell to fire. Replace and dispose of used cells in accordance with applicable battery-handling guidelines.
