Description

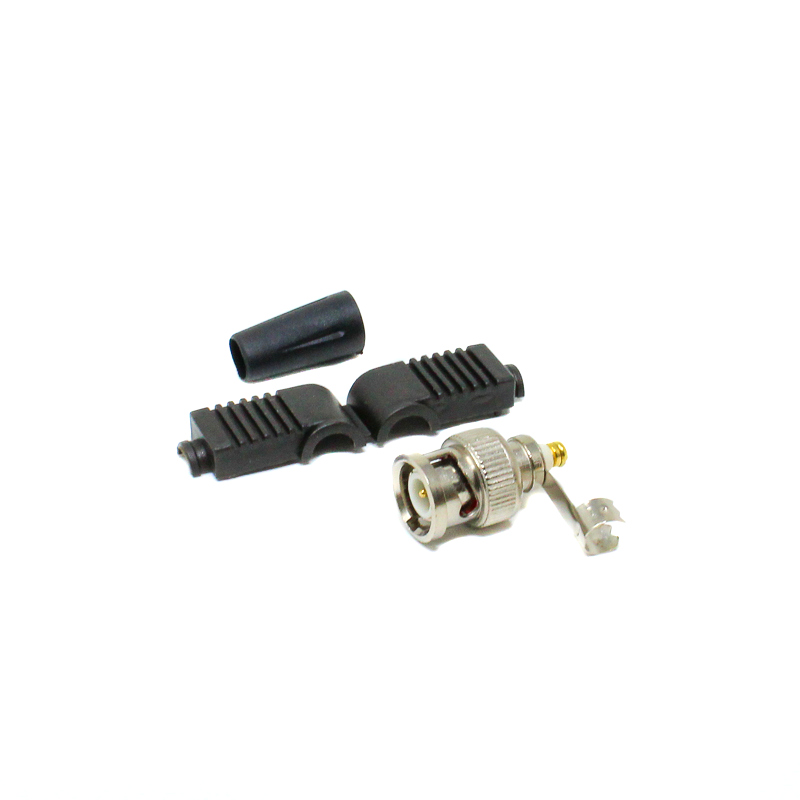

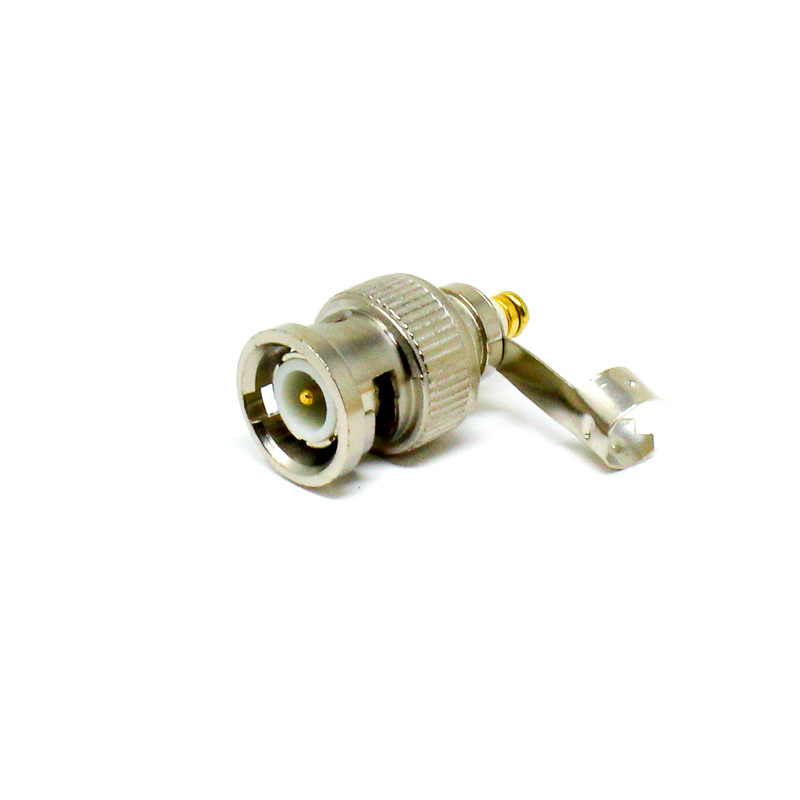

The BNC Male Connector is a high-quality RF connector designed for professional CCTV, broadcast, and video signal applications. Engineered for reliability, this straight (180°) male plug provides a secure termination for industry-standard 50-ohm and 75-ohm coaxial cables. Its robust construction, featuring a nickel-plated finish over a durable body, ensures long-lasting performance and consistent signal integrity in both professional and consumer installations.
This connector utilizes a quick-connect/disconnect coupling mechanism, making it highly convenient for rapid cable assemblies and field repairs. With a compact design that saves installation space and adherence to military-standard vibration and corrosion resistance protocols (MIL-STD-202), this BNC plug is an ideal choice for complex communication systems, medical equipment, and high-definition video broadcasting.
Note: Please refer to the schematic image for detailed dimensional specifications to ensure compatibility with your specific cable diameter and application requirements.
Features
- BNC Male Plug, Straight/180° orientation
- Solder-type termination for superior electrical contact
- 75Ω impedance (versatile for 50/75Ω applications)
- Durable nickel-plated zinc alloy body for corrosion resistance
- Quick connect/disconnect coupling mechanism
- Compact design for high-density cabling environments
- Meets MIL-STD-202 standards for vibration and corrosion resistance
Benefits
- Provides stable, noise-free signal transmission for CCTV and broadcast gear
- High-durability materials ensure a long service life
- Easy and fast installation reduces downtime in field applications
- Universal compatibility with a wide range of RF and video equipment
- Resistant to harsh environmental conditions (Teflon rating up to 155°C)
Applications
- CCTV Security and Surveillance Systems
- CATV and HDTV Broadcasting
- Antenna and Satcom Infrastructure
- Automotive and Medical Equipment
- Telecommunications and Base Stations
- Video Monitors, Recorders, and Switchers
- RF Cable Assemblies and Instrumentation
Package Includes
- 1 x BNC Male Connector for CCTV (Plastic Housing variant)
Specifications
| Parameter | Specification |
|---|---|
| Brand | ElecBee |
| Orientation | Straight (180°) |
| Gender | Male |
| Mounting Type | Cable Mount |
| Termination Style | Solder Type |
| Body Material | Zinc Alloy |
| Body Plating | Nickel Plating |
| Impedance | 50Ω / 75Ω |
| Operating Temperature | -55°C to +155°C (Teflon) |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 6 × 5 × 1 cm |
