Description

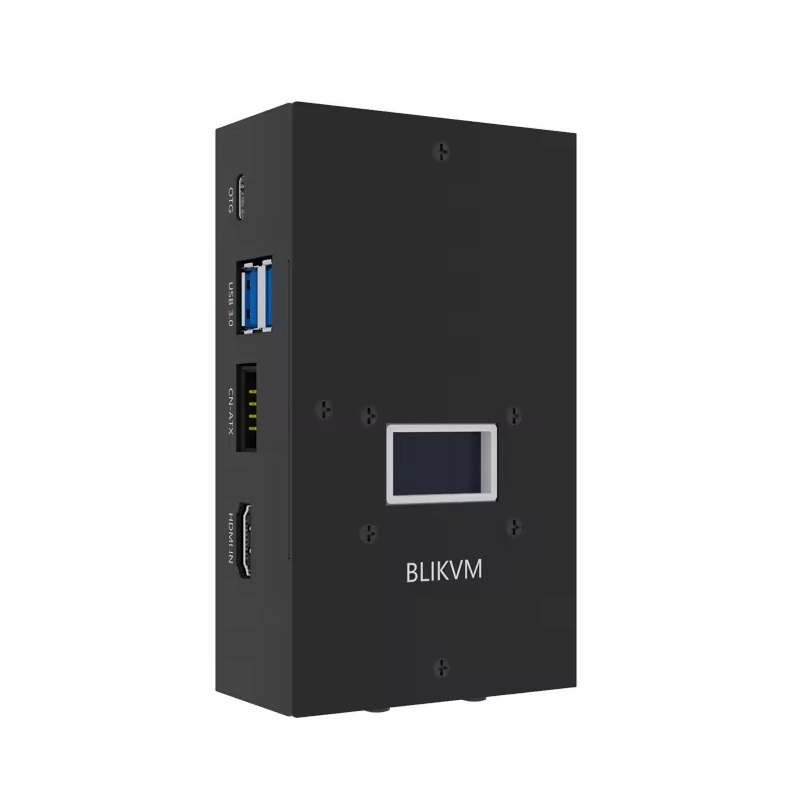

The Blicube BliKVM v1 CM4 KVM Over IP is an advanced remote management solution designed to give you seamless, hardware-level control over servers and computers across an IP network. Powered by the Allwinner H616 SoC and fully compatible with PiKVM v3 ecosystems, it allows IT administrators to access BIOS settings, reboot systems, and reinstall operating systems remotely as if sitting directly in front of the machine. Featuring Power over Ethernet (PoE) support and an HDMI video loop-through port, it enables effortless single-cable installations while allowing simultaneous local video monitoring alongside crisp remote streaming.
Key Features
- High-Definition Video Capture: Supports HDMI video input up to 1080P at 60Hz for smooth, clear remote display monitoring.
- Full HID Forwarding: Real-time remote control of both keyboard and mouse inputs without perceivable lag.
- HDMI Loop-Through Support: Enables local screen monitoring on a physical monitor while simultaneously broadcasting to the IP network.
- Mass Storage & Virtual Media: Supports external storage drives and virtual disk mounting for remote OS installation and file transfers.
- ATX Power Management: Remotely power on, shut down, or hard reset target servers using integrated ATX control functions.
- Power over Ethernet (PoE): Combines power and data delivery over a single Ethernet cable for clean, simplified deployments.
- Intuitive Web UI Access: Manage your devices directly from any modern web browser with multi-language support and full-screen mode.
Applications
- Datacenter & Server Room Management: Remotely troubleshoot, monitor, and reboot headless rack servers and workstations without physical presence.
- Colocation & Remote Lab Setup: Grant safe, secure out-of-band management access to development servers or test benches over an IP network.
- Disaster Recovery & Emergency Maintenance: Access downed systems at the BIOS level to diagnose boot errors, reflash firmware, or reinstall operating systems.
- Industrial Automation Control: Monitor and manage critical industrial PCs and control systems securely from a central operations desk.
Package Includes
- 1 x Blicube BliKVM v1 CM4 Raspberry Pi CM4 KVM Over IP HDMI CSI PiKVM v3 Compatible Module
Specifications
| Parameter | Specification |
|---|---|
| Item Type | KVM Over IP / Remote Management Module |
| Model Type | BliKVM v1 CM4 (PiKVM v3 Compatible) |
| Compatibility | Raspberry Pi CM4 Ecosystem |
| Video Input / Resolution | HDMI Input, Supports up to 1080P @ 60Hz with Loop-Through |
| Input Supply Voltage | 5V / PoE Support |
| Dimensions (L × W × H) | 120 mm × 70 mm × 37 mm |
| Weight | 320 g (Shipping Weight: 0.418 kg) |
| Shipping Dimensions | 17 cm × 10 cm × 5 cm |
