Product Overview

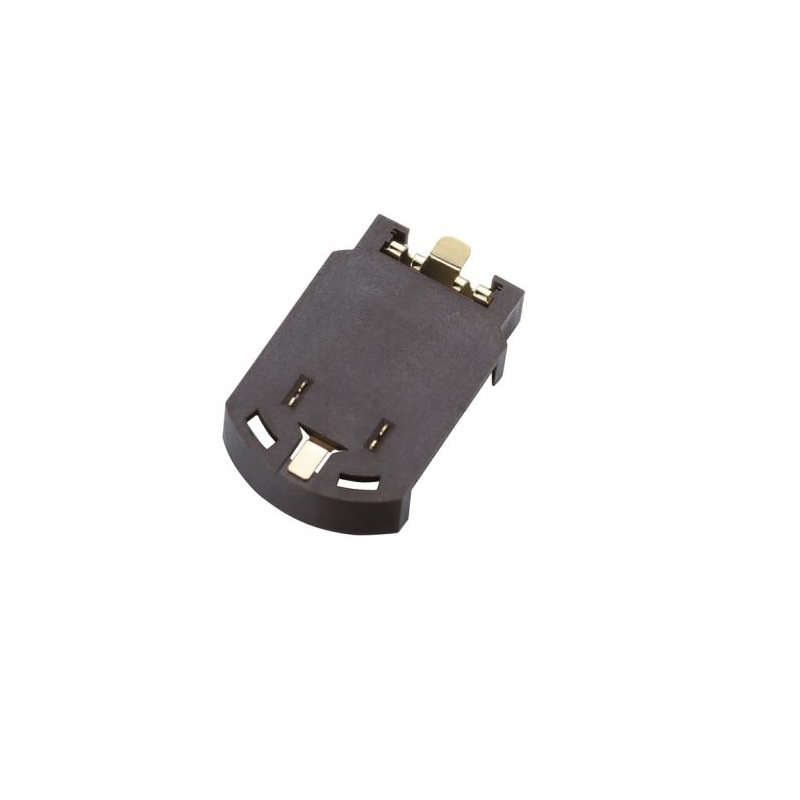

The SPIDER Automation CR2032-BS-8 Button Battery Holder is a compact battery mounting component designed to accommodate a compatible CR2032 lithium coin cell battery in electronic circuits and battery-powered assemblies. It provides a dedicated holding arrangement for the coin cell, helping integrate a compact battery power source into electronic product designs.

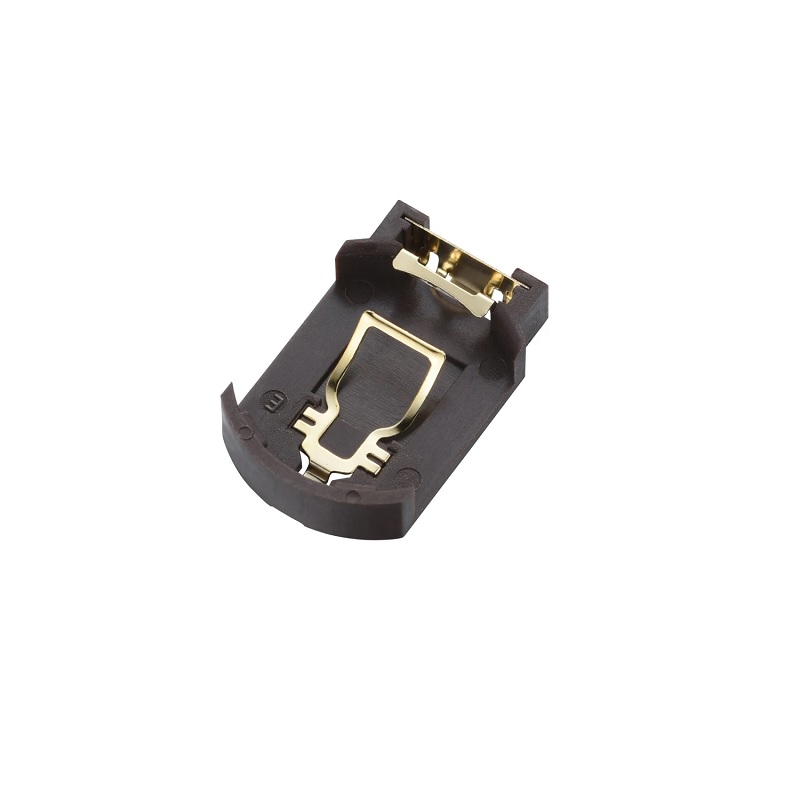

The holder features a black plastic body and a golden-coloured metal contact foot. Its compact construction makes it suitable for applications where limited PCB or enclosure space requires a small battery mounting solution.
With an overall listed size of 23 × 18 × 5mm and a lightweight construction of approximately 1g, the CR2032-BS-8 holder can be incorporated into suitable electronic assemblies, embedded projects and custom battery-powered circuits.
Technical Features & Construction
- CR2032 Coin Cell Support: Designed to hold a compatible CR2032 button battery.
- CR2032-BS-8 Model: Identified by the supplier as the CR2032-BS-8 button battery holder.
- Plastic Housing: Black plastic body provides the physical structure for holding the battery.
- Golden-Coloured Contact Foot: Includes a metal contact component for electrical connection with the battery.
- Compact Profile: The listed 23 × 18 × 5mm dimensions support integration into space-conscious designs.
- Lightweight Construction: Approximate weight of 1g makes it suitable for lightweight electronic assemblies.
- Simple Installation: Designed for convenient integration into compatible electronic products.
- Dedicated Battery Mounting: Provides a defined location for a CR2032 coin cell in an electronic assembly.
Battery Mounting & Contact Design
The CR2032-BS-8 holder provides a compact mounting arrangement for a CR2032 coin cell battery. Its plastic body supports the battery physically, while the golden-coloured metal contact foot forms part of the electrical contact arrangement.
This design is useful in electronic assemblies where a coin-cell battery needs to be incorporated without using a bulky battery enclosure. The compact structure helps designers allocate space efficiently when developing small battery-powered circuits and embedded electronic products.
- Battery Positioning: Provides a dedicated mounting location for a compatible coin cell.
- Metal Contact: Includes a golden-coloured contact foot as part of the battery connection arrangement.
- Compact Integration: Suitable for electronic designs with limited available space.
- Lightweight Assembly: Adds minimal weight to compatible electronic projects.
Applications
The CR2032-BS-8 Button Battery Holder is suitable for electronic designs that require a compact mounting solution for a CR2032 coin cell. Potential applications include:
- PCB Battery Mounting: For integrating a CR2032 coin cell into compatible printed circuit board assemblies.
- Embedded Electronics: For compact electronic systems requiring coin-cell battery support.
- RTC Battery Circuits: For suitable real-time clock backup battery arrangements.
- CMOS Backup Circuits: For compatible electronic designs that use CR2032 cells for memory or configuration backup.
- Microcontroller Projects: For custom electronic projects incorporating a CR2032 battery supply.
- DIY Electronics: For prototype development and custom battery-powered circuits.
- IoT Devices: For compatible compact Internet of Things electronic assemblies.
- Portable Electronic Products: For small devices designed around CR2032 coin-cell power.
- Electronic Prototyping: For testing and developing circuits that require a coin-cell battery holder.
- Custom PCB Assemblies: For suitable circuit boards requiring a dedicated CR2032 battery mounting component.
- Low-Power Circuits: For compatible electronic designs operating from a CR2032 battery supply.
- Battery-Powered Control Modules: For compact control electronics with a suitable coin-cell power arrangement.
Functional Advantages
- Space-Efficient Design: Compact dimensions help simplify battery integration in smaller electronic assemblies.
- Dedicated Coin Cell Support: Designed specifically around the CR2032 battery format.
- Lightweight Construction: Approximate 1g product weight is suitable for lightweight designs.
- Plastic and Metal Construction: Combines a plastic battery support body with a metal contact component.
- Convenient Integration: Suitable for incorporation into compatible PCB and electronic assemblies.
Package Contents
- 1 × Black CR2032-BS-8 Button Battery Holder with Golden-Coloured Metal Contact Foot
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Button / Coin Cell Battery Holder |
| Model | CR2032-BS-8 |
| Battery Compatibility | CR2032 Coin Cell Battery |
| Battery Type | Lithium Coin Cell |
| Housing Material | Plastic |
| Contact Material | Metal (exact metal/plating not specified) |
| Contact Appearance | Golden-Coloured Contact Foot |
| Colour | Black |
| Dimensions | 23 × 18 × 5mm |
| Product Weight | Approximately 1g |
| Installation | Designed for integration into compatible electronic assemblies |
| Shipping Weight | 0.001kg |
| Shipping Dimensions | 6 × 4 × 1cm |
Connection & Operating Recommendations
- Use the Correct Battery: Use a compatible CR2032 coin cell with the holder.
- Observe Battery Polarity: Position the positive and negative battery terminals according to the holder’s contact arrangement and PCB markings.
- Confirm PCB Compatibility: Check the holder’s physical footprint and contact positioning against the intended PCB layout before integration.
- Ensure Proper Contact: Maintain suitable contact between the battery terminals and the holder’s metal contact components.
- Use Suitable Soldering Practices: If the contact foot is intended for PCB soldering, use an appropriate soldering process and avoid excessive heat.
- Check Circuit Voltage Requirements: Ensure the connected circuit is designed for the voltage supplied by the CR2032 battery.
- Avoid Short Circuits: Prevent accidental bridging of the battery terminals through conductive materials.
- Provide Mechanical Support: Integrate the holder securely into the PCB or compatible assembly to prevent unwanted movement.
- Follow Battery Handling Precautions: Do not puncture, crush, recharge or expose CR2032 primary lithium coin cells to excessive heat.
- Use Within Application Requirements: Confirm that the battery capacity and current capability are appropriate for the connected electronic circuit.
Important: The supplier does not specify the exact contact polarity, terminal arrangement or PCB footprint dimensions. Confirm these details before finalizing the PCB layout and electrical connection.
