(SPIDER Automation) BIGTREETECH BTT CB1 Development Board | Quad-Core ARM Cortex-A53 | Linux & Klipper Compatible

BIGTREETECH BTT CB1 Development Board | Quad-Core 64-Bit ARM Cortex-A53 | Linux & Klipper IO Board

Description

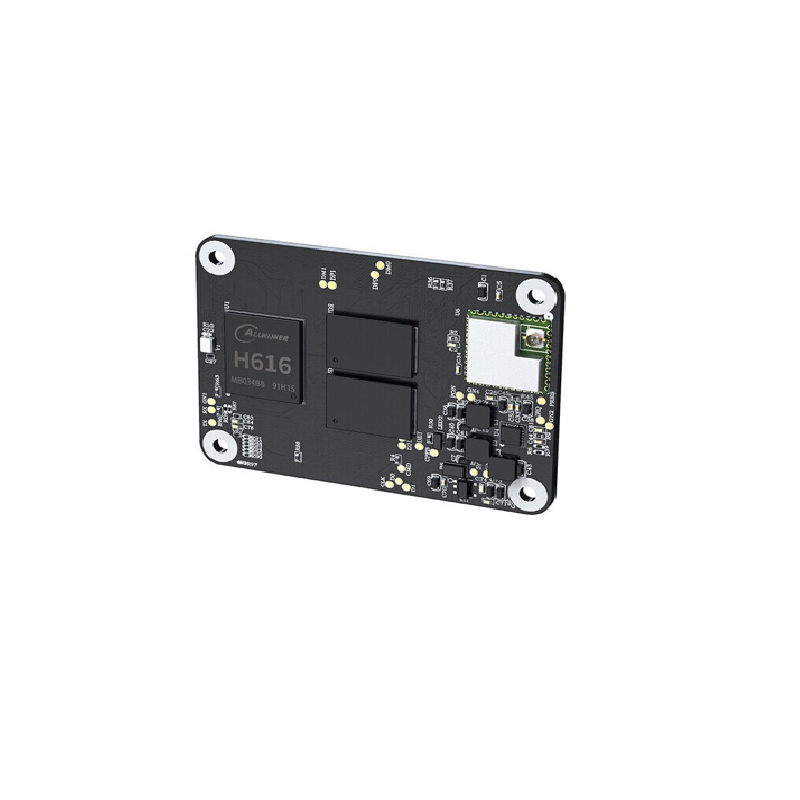

The (SPIDER Automation) BIGTREETECH BTT CB1 is an advanced core and IO board engineered to serve as a high-performance, cost-effective alternative to traditional Raspberry Pi boards in 3D printing and embedded automation setups. Powered by a capable quad-core 64-bit ARM Cortex-A53 processor clocked at 1.5 GHz and backed by 1GB of DDR3 RAM, the CB1 delivers exceptional computing power for running native Linux and Debian environments.

When paired with BIGTREETECH Manta mainboards (such as the Manta M8P for Voron 2.4/VzBoT or the Manta M4P for Voron V0/Ender 3) or the PI4B adapter, the CB1 enables full compatibility with high-performance Klipper firmware. Featuring 4K HDMI video output, 100M Ethernet, 100M Wi-Fi, and an ultra-compact space-saving footprint, it provides an efficient, reliable foundation for upgrading and managing modern automated machinery.

Key Features

• Quad-Core 64-Bit Processing: Powered by an ARM Cortex-A53 CPU running at 1.5 GHz paired with 1GB DDR3 RAM for smooth multitasking.
• Native Linux & Debian Support: Runs robust open-source Linux distributions, providing full control over your embedded software stack.
• Klipper Firmware Integration: Directly compatible with Manta series mainboards (M4P / M8P) and PI4B adapters for advanced 3D printer control.
• High-Definition Multimedia: Supports 4K crystal-clear video and audio streaming via onboard HDMI output.
• Dual Network Connectivity: Outfitted with both a 100M Ethernet port and built-in 100M wireless Wi-Fi capability.
• Compact Form Factor: Measures only 55 x 41 x 3 mm with secure installation holes for straightforward physical mounting inside electronics enclosures.

Benefits

• Cost-Effective Raspberry Pi Alternative: Delivers robust processing power tailored specifically for Klipper 3D printer host tasks without hardware shortages.
• Streamlined Wiring & Installation: Direct board-to-board connection with Manta mainboards eliminates messy USB cabling, ribbon cables, and external power bricks.
• Optimized Thermal Design: Designed to work seamlessly with dedicated heatsinks and thermal conductive tape for efficient heat dissipation during heavy workloads.
• High-Speed Web Access: Fast Ethernet and Wi-Fi ensure responsive remote web interface (Fluidd / Mainsail) control and monitoring.
• Tailored for Voron & Custom Printers: Perfect drop-in upgrade for high-performance open-source 3D printer builds and CNC conversions.
• Lightweight & Durable: Weighing just 10g, it adds minimal weight and bulk to your control electronics compartment.

Applications

• Klipper 3D Printer Host Control: Acting as the primary Linux host running Klipper and Moonraker for Voron, Ender, and custom 3D printers.
• Embedded Linux Prototyping: Compact development board for lightweight headless Linux servers, gateways, and IoT projects.
• Smart Home Automation Hubs: Running local home automation platforms and camera streaming nodes.
• Digital Signage & Media Nodes: Utilizing 4K HDMI output for multimedia presentation and display tasks.
• Industrial & Maker Control Units: Embedded computing node for custom machinery automation and data acquisition.

Important Notes

• Heatsink Notice: A heatsink is not included in the standard packaging and should be acquired separately for intensive cooling applications.

Package Includes

• 1 x BIGTREETECH CB1 Development Board
