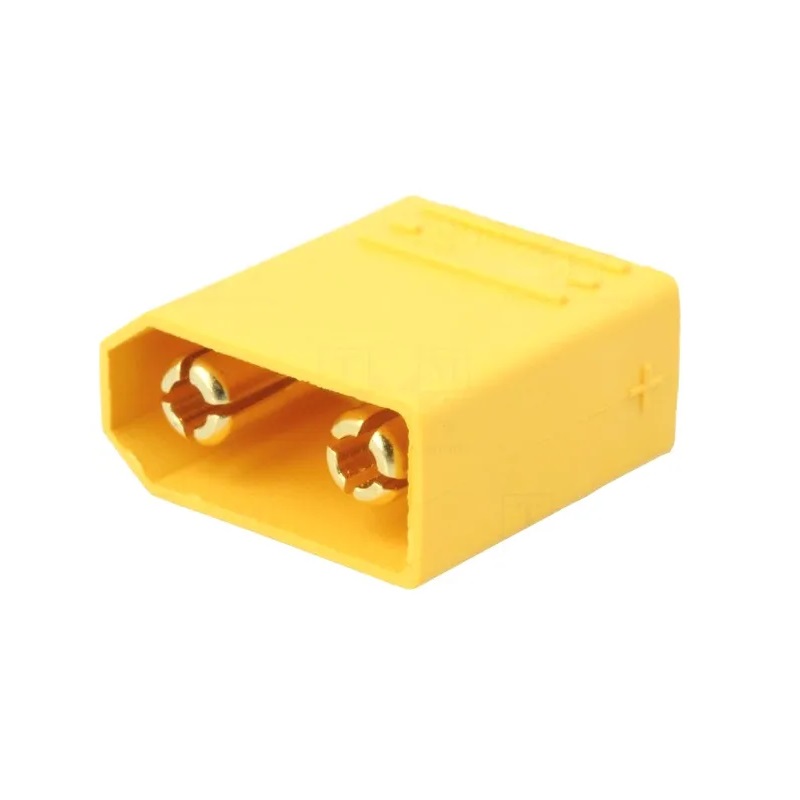

SPIDER Automation Amass XT90PB-M.G.Y Male Connector | Anti-Spark Battery Connector | For RC Vehicles, Drones & Electronic Systems
Description
The SPIDER Automation Amass XT90PB30 Male Connector – XT90PB-M.G.Y is a robust electrical battery connector from the Amass XT90 series, designed for dependable power connections in demanding electronic applications. The male connector is suitable for compatible mating connections used in RC vehicles, drones and other electrical systems requiring a secure and durable power interface.
The connector uses gold-plated brass contacts to provide efficient electrical conduction and reliable power transfer. Its housing is constructed from high-temperature nylon, providing a durable connector structure suitable for the specified operating temperature range of -20°C to 120°C.
An integrated anti-spark design helps reduce arcing when the connector is connected or disconnected. The connector features a 2-pin configuration and a specified 500V rated voltage, providing clearly defined electrical characteristics for compatible system designs.
Key Features
- XT90 Series: Part of the Amass XT90 family of electrical battery connectors.
- Male Configuration: Provides the male connector interface for compatible mating connectors.
- Gold-Plated Brass Contacts: Combines brass contact material with a gold-plated finish for efficient electrical conduction.
- Anti-Spark Design: Helps reduce arcing during connection and disconnection.
- 500V Rated Voltage: Designed for electrical systems within the specified voltage rating.
- 2-Pin Configuration: Provides two electrical contact positions for the power connection.
- High-Temperature Nylon Housing: Provides a durable insulating connector structure.
- Wide Operating Temperature: Specified for operation from -20°C to 120°C.
- Mechanical Durability: Rated for 1000 connection cycles.
- Easy Soldering: Designed for straightforward soldered cable assembly.
- Compact Construction: Provides a space-efficient connector solution for power assemblies.
Benefits
- Reduced Connection Arcing: The integrated anti-spark design helps reduce arcing during mating and unmating.
- Efficient Power Transfer: Gold-plated brass contacts provide a conductive contact interface for power connections.
- Reliable Mechanical Connection: Designed to provide a secure mating fit during operation.
- Temperature Capability: The specified -20°C to 120°C operating range supports use across a broad temperature range.
- Long Connection Life: The specified 1000-cycle mechanical durability supports repeated connector use.
- Space-Efficient Design: Compact construction helps accommodate applications with limited available installation space.
Applications
- RC Vehicles: Suitable for compatible battery and power connection assemblies in remote-controlled vehicles.
- Drones: Suitable for compatible drone battery and electrical power connections.
- Electronic Systems: Useful for compatible electronic power connection assemblies.
- Battery Connections: Suitable for compatible battery pack and power distribution connections.
- Power Connection Assemblies: Suitable for electrical systems requiring a secure two-contact connector interface.
- Compact Electrical Equipment: Useful where a durable and space-efficient power connector is required.
Package Includes
- 1 × Amass XT90PB30 Male Connector – XT90PB-M.G.Y
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Amass |
| Product Type | Battery Connector |
| Model Series | XT90 |
| Model / Part Number | XT90PB-M.G.Y |
| Gender | Male |
| Contact Material | Brass |
| Contact Finish | Gold-Plated |
| Number of Pins | 2 |
| Rated Voltage | 500V |
| Operating Temperature | -20°C to 120°C |
| Mechanical Durability | 1000 cycles |
| Anti-Spark | Yes |
| Insulation / Housing Material | High-Temperature Nylon |
| Shipping Weight | 0.015 kg |
| Shipping Dimensions (L × W × H) | 7 × 4 × 2 cm |
