SPIDER Automation Amass XT30AW Female Battery Connector | 30A+ | Gold-Plated Brass & High-Temperature Nylon
Description

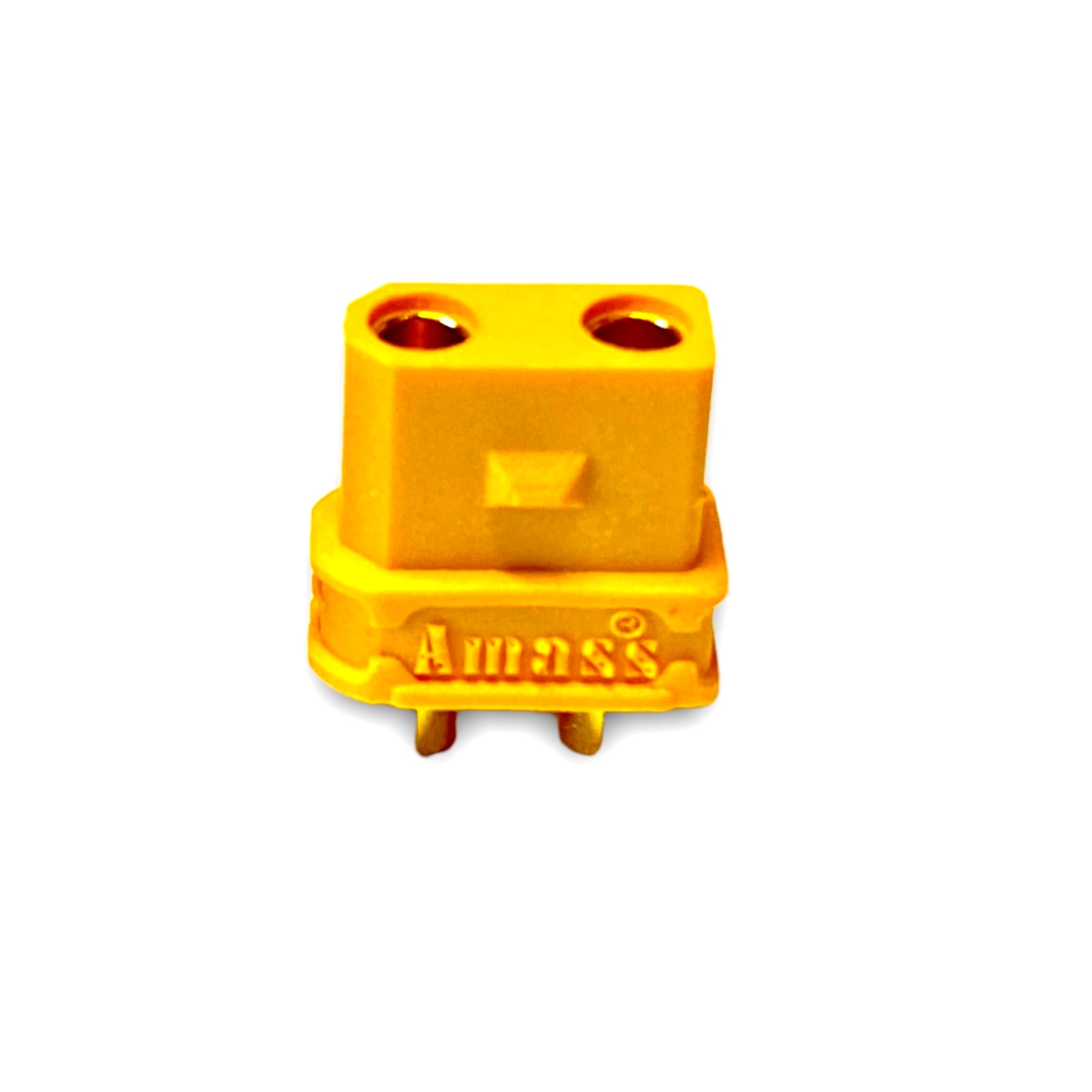

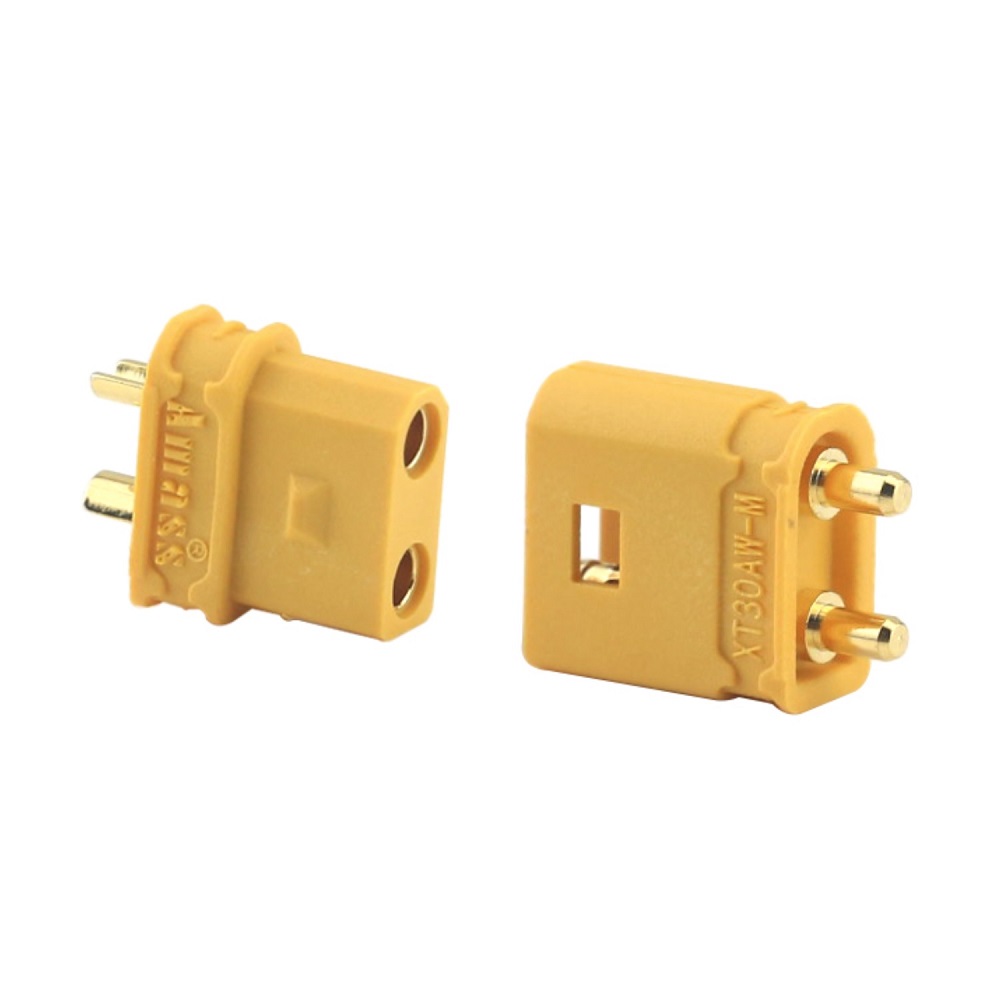

The Amass XT30AW Female Connector is a compact XT30-series electrical connector designed for small LiPo battery systems and other space-constrained power applications. Its compact construction allows the connector to be installed where available wiring and equipment space is limited.
The connector combines a brass bullet contact with a gold-plated surface and a high-temperature nylon housing. The integrated construction keeps the contact securely positioned within the connector housing while providing a compact and mechanically robust connection format.
The XT30AW female connector is specified for a 30A+ current-handling capacity and measures approximately 12 × 10 × 5mm. The gold-plated contact surface is designed to provide good electrical conductivity and resistance to oxidation, while the high-temperature nylon housing is designed to reduce deformation or melting under demanding operating conditions.
Key Features
- XT30 Series: Compact connector format for compatible battery and power applications.
- Female Configuration: Designed for mating with the corresponding compatible XT30 male connector.
- 30A+ Current Capacity: Suitable for compatible applications requiring the specified current-handling capability.
- Brass Contact: Provides the conductive metallic structure of the bullet contact.
- Gold-Plated Contact: Provides a conductive surface designed to resist oxidation.
- High-Temperature Nylon Housing: Designed to resist deformation or melting under elevated operating conditions.
- Compact Dimensions: Approximately 12 × 10 × 5mm for space-efficient installation.
- Integrated Construction: Contact and housing are integrated during connector manufacturing.
- Compact LiPo Compatibility: Suitable for compatible small LiPo battery applications.
Benefits
- Space-Efficient Installation: Compact dimensions make the connector suitable for assemblies with limited installation space.
- Reliable Electrical Contact: Gold-plated brass provides a conductive mating interface for compatible power systems.
- Oxidation Resistance: The gold-plated contact surface is designed to resist oxidation during normal use.
- Thermal Durability: High-temperature nylon housing is designed to reduce deformation or melting under demanding conditions.
- Compact Power Connection: Provides a practical connector solution for small battery-powered equipment.
- Integrated Connector Construction: Provides a secure relationship between the contact element and insulating housing.
Applications
- Small LiPo Battery Systems: Suitable for compatible compact LiPo battery connections.
- Compact Power Assemblies: Useful where available installation space is limited.
- Battery-to-Equipment Connections: Suitable for compatible battery-powered electronic equipment.
- Compact Electronic Systems: Applicable to compatible electronic assemblies requiring a small detachable power connector.
- DC Power Wiring: Suitable for compatible DC power connections within the specified current capacity.
- Space-Constrained Installations: Useful where connector dimensions are an important design consideration.
Package Includes
- 1 × Amass XT30AW Female Connector
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Amass |
| Product Type | Battery / Power Connector |
| Model Series | XT30 |
| Connector Type | XT30AW |
| Gender | Female |
| Current Capacity | 30A+ |
| Contact Material | Brass |
| Contact Plating | Gold |
| Housing Material | High-Temperature Nylon |
| Color | Yellow |
| Product Dimensions (L × W × H) | 12 × 10 × 5mm |
| Contact Type | Gold-Plated Bullet Contact |
| Application | Small LiPo Batteries, Compact Power Systems and Electronic Assemblies |
| Shipping Weight | 0.01kg |
| Shipping Dimensions | 7 × 6 × 2cm |
