SPIDER Automation Amass XT30UD Male Battery Connector | 30A+ | Compact Gold-Plated Power Connector
Description

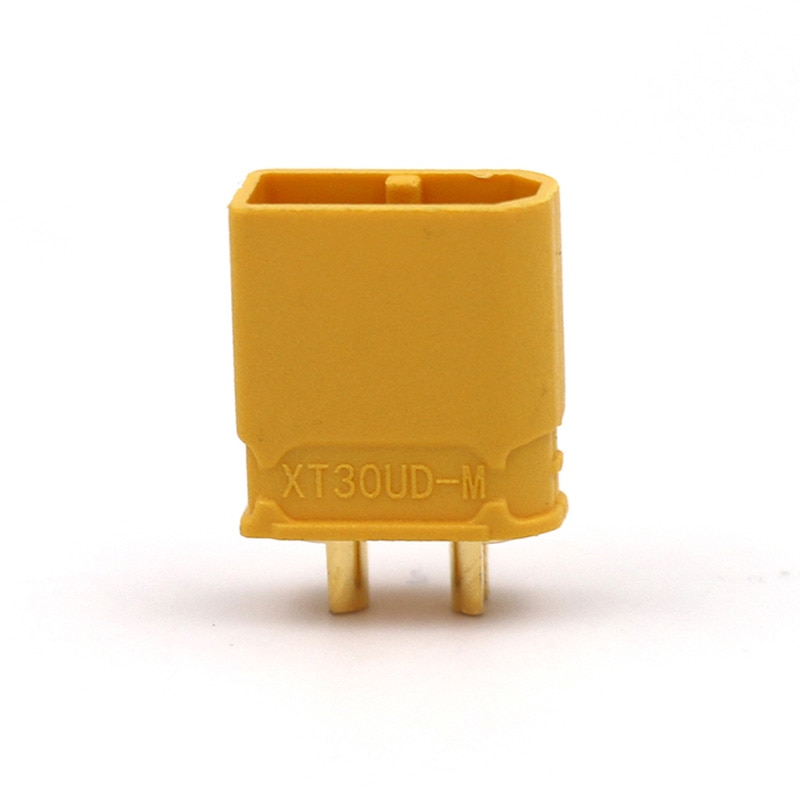

The SPIDER Automation Amass XT30UD Male Battery Connector is a compact XT30-series bullet connector designed for reliable electrical connections in space-constrained battery and power applications. The XT30UD-M.G.Y combines a high-temperature nylon insulating housing with gold-plated brass bullet contacts, with the contacts integrated into the housing during the injection-molding process for a secure and mechanically stable construction.
The connector uses 24K real gold plating with a stated coating thickness of 0.05 µm. The gold-plated contact surface is designed to resist oxidation and maintain good electrical conductivity through repeated connector operation. The compact design makes the XT30UD suitable for small LiPo battery systems and other applications where connector size and installation space are important design considerations.
With a stated 30A+ current handling capacity and a compact 10 × 10 × 5 mm form factor, this male connector can be integrated into battery interconnects, compact power distribution assemblies, motor/ESC connections and electronic equipment requiring a small-format power connector.
Key Features
- XT30 Series: Male bullet connector designed for compact battery and power connections.
- 30A+ Current Capacity: Suitable for applications requiring a compact connector with high current handling capability.
- High-Temperature Nylon Housing: Helps reduce deformation or melting during soldering and application use.
- Gold-Plated Brass Contacts: Provides a conductive contact interface with oxidation-resistant surface treatment.
- 24K Real Gold Plating: Uses a stated 24K gold coating with 0.05 µm thickness.
- Integrated Contact Construction: Bullet contacts are incorporated into the connector housing during injection molding.
- Compact Dimensions: 10 × 10 × 5 mm form factor supports installations where available space is limited.
- Repeated Mating: Gold-plated contact surfaces are designed for repeated plugging and unplugging.
- Small LiPo Compatibility: Well suited to compact LiPo battery applications and associated power connections.
Benefits
- Space Efficient: Compact construction allows installation in small electronic and battery assemblies.
- Stable Electrical Connection: Gold-plated brass contacts provide a conductive mating interface.
- Oxidation Resistance: Gold-plated contact surfaces help maintain contact performance over time.
- Thermal Durability: High-temperature nylon housing provides improved resistance to deformation during soldering.
- Practical for Compact Power Systems: Combines a small physical footprint with a stated 30A+ current handling capability.
Applications
- LiPo Battery Connections: Suitable for compact LiPo battery packs and power assemblies.
- Power Distribution: Can be used in compact DC power distribution and battery interconnection systems.
- Motor and ESC Connections: Suitable for compact motor-controller and ESC power interfaces where compatible with system requirements.
- Electronic Equipment: Useful for compact electronic assemblies requiring detachable power connections.
- Embedded Power Assemblies: Suitable for space-constrained battery-powered equipment and control systems.
Package Includes
- 1 × Amass XT30UD Male Connector – XT30UD-M.G.Y
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Amass |
| Model | XT30UD-M.G.Y |
| Model Series | XT30 |
| Connector Type | Male Bullet Battery Connector |
| Current Capacity | 30A+ |
| Contact Material | Brass |
| Contact Plating | 24K Real Gold |
| Plating Thickness | 0.05 µm |
| Housing Material | High-Temperature Nylon |
| Color | Yellow |
| Product Dimensions (L × W × H) | 10 × 10 × 5 mm |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 5 × 4 × 2 cm |
| Typical Application | Small LiPo Batteries, Compact Power Systems and Electronic Assemblies |
