SPIDER Automation Amass MT60 3-Pin Male Motor Connector | 3.5mm Bullet Contacts | For Brushless Motor & ESC Connections
Description

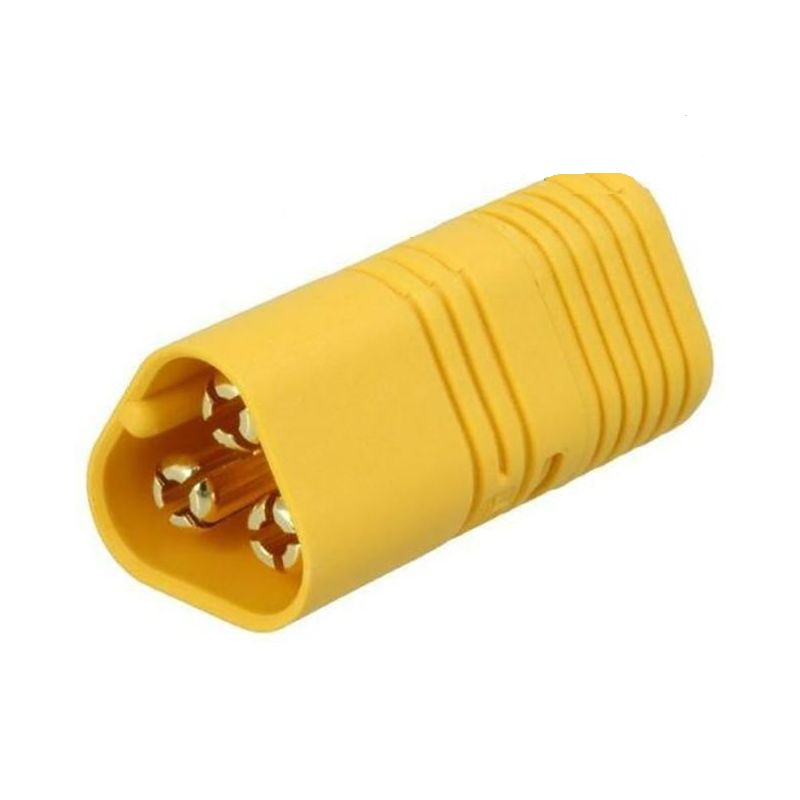

The Amass MT60 3-Pin Male Connector is a compact motor and power connector designed for secure connections between compatible brushless motors and ESCs. Its three-pole configuration is suitable for three-phase motor wiring and provides a structured connection solution for compact motor-drive assemblies.
The connector incorporates 3.5mm bullet contacts within a toughened polyamide housing. The mechanically robust housing provides a secure fit while protecting the contact assembly during installation and operation. Gold-flash contact surfaces provide a conductive mating interface for compatible electrical connections.
An improved locking arrangement on the insulating caps helps maintain secure connector engagement. The compact construction makes the MT60 suitable for EDF systems, multirotor equipment and other compatible brushless motor applications where a durable and space-efficient motor connector is required.
Key Features
- MT60 Series: Compact connector platform for compatible motor and power applications.
- 3-Pin Configuration: Provides three electrical contacts for compatible three-phase brushless motor connections.
- 3.5mm Bullet Contacts: Uses three 3.5mm bullet-style contacts within the connector assembly.
- Male Connector: Designed for mating with the corresponding compatible MT60 female connector.
- Gold-Flash Contact Finish: Provides a conductive contact surface.
- Toughened Polyamide Housing: Provides a rigid insulating structure designed for secure mating.
- Improved Locking Caps: Helps maintain secure engagement between compatible connector halves.
- Compact Construction: Suitable for equipment where connector size and mechanical robustness are important.
- Brushless Motor / ESC Connectivity: Designed specifically for compatible motor-drive connection requirements.
Benefits
- Secure Motor Connections: Provides a dedicated three-pole connector format for compatible brushless motor and ESC wiring.
- Mechanical Strength: Toughened polyamide housing provides a durable connector structure.
- Stable Mating: Improved locking features help maintain secure engagement during equipment operation.
- Compact Installation: Suitable for motor assemblies where available space is limited.
- Organized Three-Phase Wiring: Three dedicated contacts simplify compatible brushless motor connection arrangements.
- Versatile Motor Applications: Suitable for compatible EDF, multirotor and other brushless motor systems.
Applications
- Brushless Motor Connections: Suitable for connecting compatible three-phase brushless motors.
- ESC Connections: Designed for compatible motor-to-ESC wiring.
- Multirotor Systems: Suitable for compatible multirotor motor assemblies.
- EDF Systems: Applicable to compatible electric ducted fan motor connections.
- Compact Motor Assemblies: Useful where a durable and compact three-pole connector is required.
- Motor Power Wiring: Suitable for compatible power connection applications using the MT60 connector system.
Package Includes
- 1 × Amass MT60 3-Pin Male Connector
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Amass |
| Product Type | Battery / Motor Connector |
| Model Series | MT60 |
| Connector Type | 3-Pin Motor Connector |
| Gender | Male |
| Number of Contacts | 3 |
| Contact Diameter | 3.5mm |
| Contact Type | Bullet Contacts |
| Contact Finish | Gold Flash |
| Housing Material | Polyamide |
| Application Type | Brushless Motor, ESC, EDF and Multirotor Systems |
| Connector Design | Compact 3-Pole Motor Connector with Locking Insulating Caps |
| Shipping Weight | 0.02kg |
| Shipping Dimensions | 7 × 4 × 1cm |
