SPIDER Automation 4mm Gold-Plated Female Battery Connector | Low-Resistance Power Connection | For Batteries, Brushless Motors & ESCs
Description

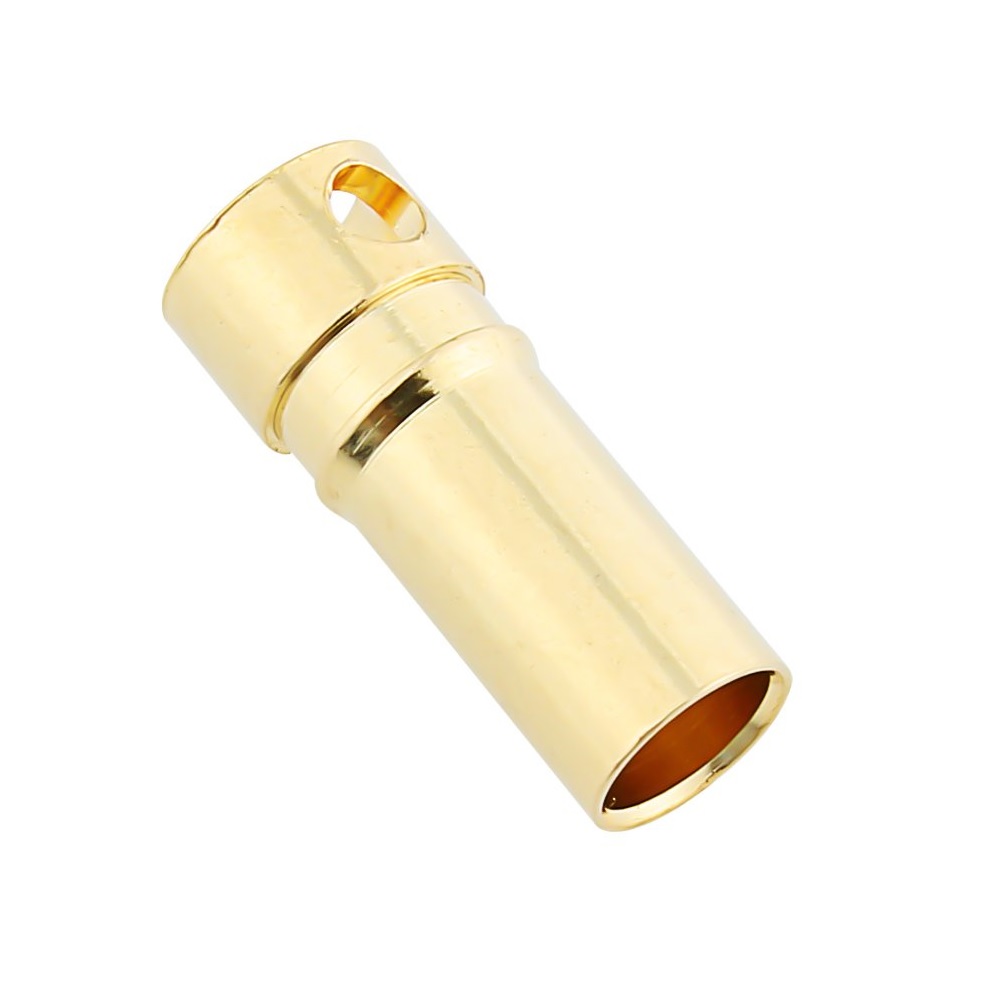

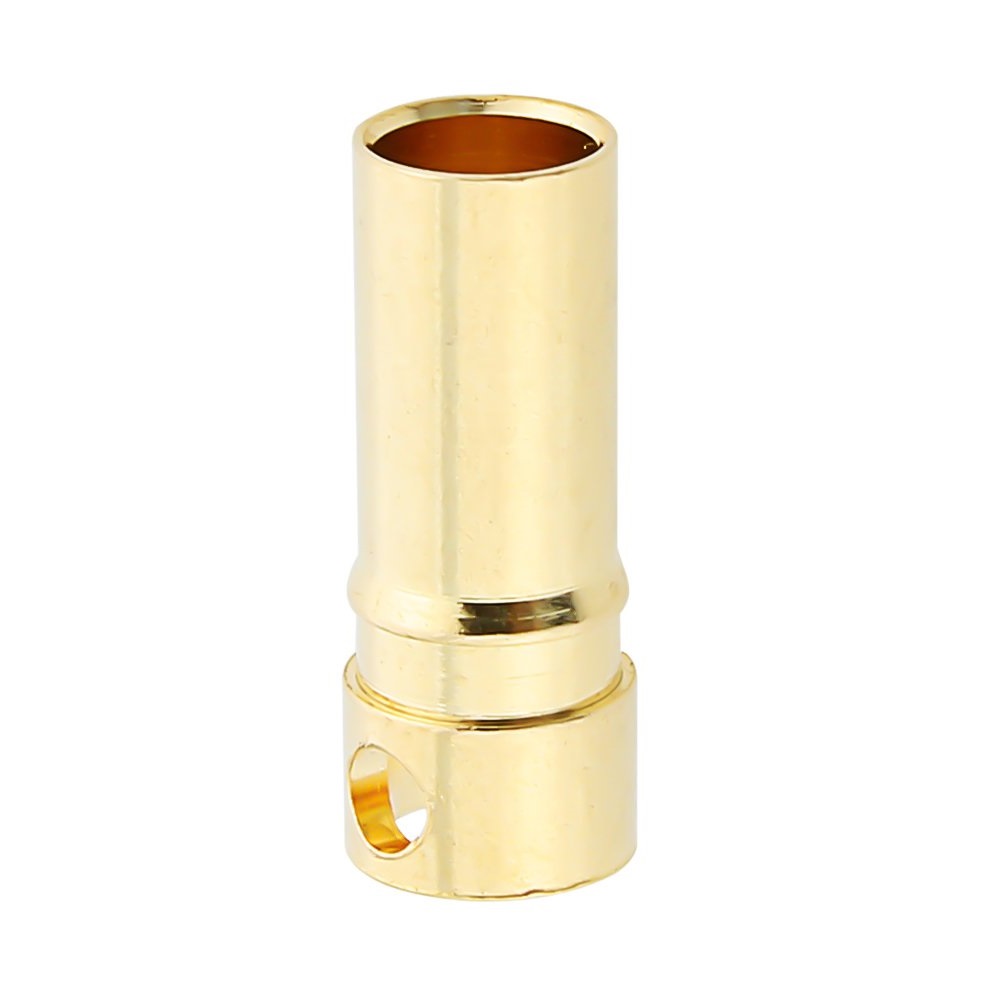

The SPIDER Automation 4mm Gold-Plated Female Battery Connector is a compact high-current electrical connector designed for reliable power connections in battery-powered equipment and power electronics. With a 4mm inner diameter, female configuration and precision-machined construction, it provides a practical interface for connecting compatible battery wiring, brushless motors, electronic speed controllers and other DC power equipment.
The connector is manufactured from brass with gold plating to provide a durable conductive contact surface. Its sprung contact construction is designed to maintain secure electrical contact when properly mated, while the low-resistance connection supports efficient current transfer. The rear-side cut design provides additional access for soldering, making wire termination more convenient during electrical assembly and system integration.
With a compact 20.5mm length, this female connector is suitable for applications where a high-current connection is required within a relatively small wiring space. It can be used with battery systems including 3500mAh or larger battery configurations and in systems specified for 80A+ operation, provided the complete electrical system—including wire gauge, battery, connector pair and termination—is appropriately rated for the required current.
Key Features
- 4mm Inner Diameter: Provides a 4mm female connection interface for compatible power connectors.
- Gold-Plated Brass Contact: Combines brass mechanical strength with a gold-plated contact surface for dependable electrical connectivity.
- Low-Resistance Power Connection: Designed to facilitate efficient electrical current flow through the connection.
- Sprung Contact Design: Provides contact pressure for secure mating with the corresponding compatible connector.
- Rear-Side Solder Cut: Provides access that makes soldering and wire termination easier during assembly.
- Female Configuration: Designed for connection with the corresponding male 4mm power connector.
- Compact 20.5mm Length: Suitable for compact power wiring and equipment integration.
- Battery Power Applications: Suitable for high-current battery wiring, including 3500mAh or larger battery applications.
- Motor and ESC Connection: Can be used to connect compatible brushless motors with electronic speed controllers.
- Precision-Machined Construction: Provides a consistent physical contact interface for compatible electrical assemblies.
Benefits
- Efficient Power Transfer: The gold-plated conductive interface is designed for low-resistance electrical connection.
- Secure Electrical Contact: Sprung construction helps maintain reliable contact when the connector pair is properly mated.
- Easy Wire Termination: Rear-side solder access simplifies the process of attaching compatible wires.
- Compact Integration: The small connector format helps minimize space requirements within battery and motor wiring assemblies.
- Flexible Power-System Use: Suitable for battery, brushless motor and electronic speed-controller interconnections.
- Suitable for High-Current Systems: Can be integrated into appropriately engineered high-current systems where the complete connection path is correctly rated.
Applications
- Battery Connections: Suitable for connecting compatible high-current battery wiring.
- Brushless Motor Wiring: Used for power connections between compatible brushless motors and electronic speed controllers.
- Electronic Speed Controllers: Suitable for ESC power wiring in compatible motor systems.
- High-Current Power Systems: Suitable for appropriately engineered systems requiring substantial current transfer.
- Battery-Powered Equipment: Useful for compact power connections in battery-operated electrical equipment.
- Power Electronics: Suitable for internal or external power wiring where a 4mm connector interface is required.
Package Includes
- 1 × 4mm Gold Connector – Female
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Battery / Power Connector |
| Connector Diameter | 4mm |
| Gender | Female |
| Inner Diameter | 4mm |
| Contact Material | Brass with Gold Plating |
| Contact Design | Sprung Contact |
| Length | 20.5mm |
| Soldering Design | Rear-Side Cut for Soldering |
| Electrical Characteristic | Low-Resistance Connection |
| Recommended Applications | Battery, Brushless Motor and ESC Power Connections |
| System Application | 3500mAh+ Battery Applications and 80A+ Systems |
| Product Weight | 1g |
| Shipping Weight | 0.01kg |
| Shipping Dimensions | 7 × 6 × 3cm |
