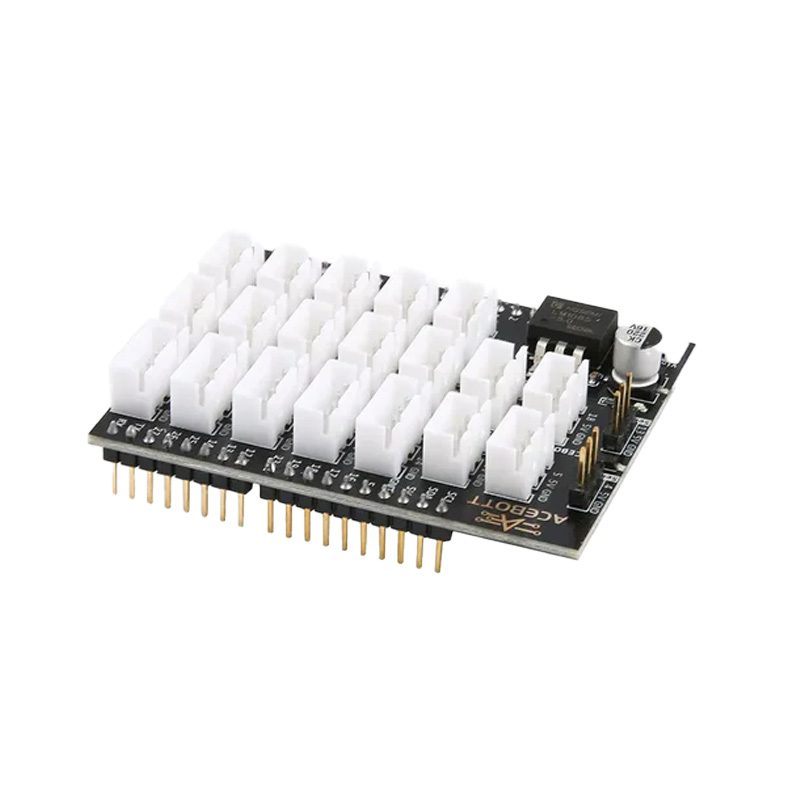

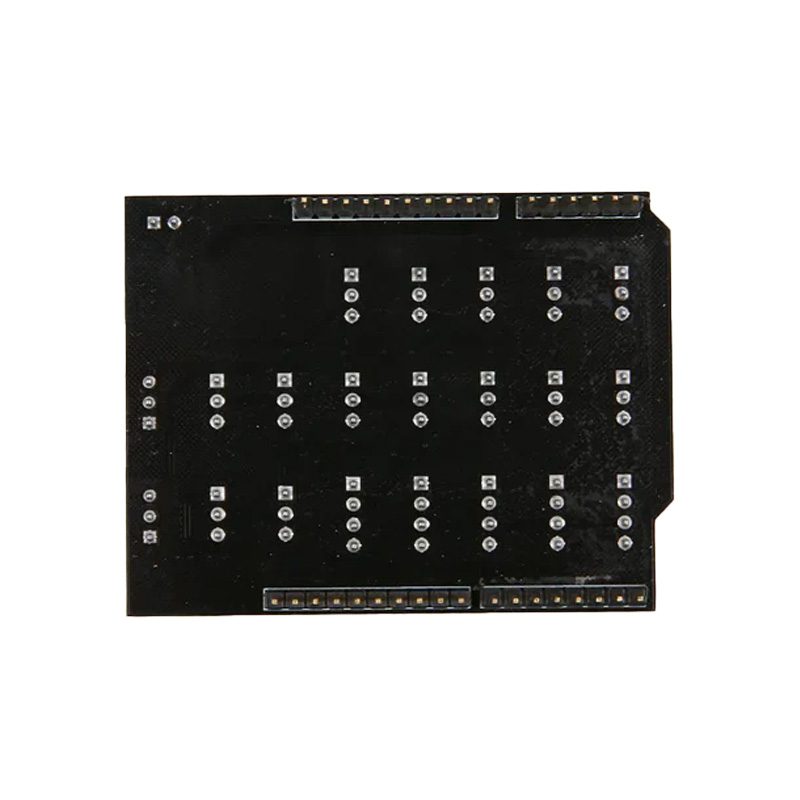

SPIDER Automation ACEBOTT ESP32 Shield Board V1.0 | ESP32 Shield Module | IoT Sensor & Module Expansion Board
Description
The SPIDER Automation ACEBOTT ESP32 Shield Board V1.0 (QA017) is engineered for seamless integration with the QA008 ACEBOTT ESP32 Max V1.0, offering enhanced capabilities and effortless plug-and-play functionality. Designed to streamline microcontroller experimentation, this shield provides a comprehensive suite of connectivity options to link various sensors, actuators, and communication modules.
Featuring dedicated digital and analog pin banks, I2C headers, servo interfaces, and a powerful power supply layout capable of up to 15V 3A output, it serves as an ideal test-bench platform for advanced IoT and robotics development. Operating reliably across a 0°C to 70°C temperature range, it eliminates messy wiring setups and accelerates project deployment.
Key Features
- Seamless Plug-In Design: Directly compatible with the QA008 ACEBOTT ESP32 Max V1.0 for instant hardware upgrading.
- Digital Pin Array: Eight 3-pin digital connectors tailored for hooking up 5V sensors and modules securely.
- Analog Pin Breakout: Six 3-pin analog ports—four configured for 5V sensors and two optimized for 3.3V devices.
- Specialized 4-Pin Connectors: Includes versatile 4-pin digital layouts featuring multi-signal pins, power, and ground rails.
- Multi-Interface Support: Built-in I2C pins, serial communication ports, and two dedicated servo motor interfaces.
- High-Power Output: Integrated power supply interface capable of delivering up to 15V at 3A output current.
Benefits
- Simplifies Sensor Hookups: Pre-wired 3-pin and 4-pin ports allow you to plug sensors in instantly without breadboards.
- Accommodates Mixed Voltages: Dual-voltage analog support safely handles both 3.3V and 5V components simultaneously.
- Robust Power Delivery: High current rating supports multiple servos and active modules without power sagging.
-
Compact & Reliable: Form-fitted footprint ensures clean stacking and secure mechanical stability during operation.
Applications
- Advanced IoT Prototyping: Connecting wireless sensors, environmental meters, and display modules to ESP32 controllers.
- Robotics & Servo Control: Driving multiple robotic joints and motorized actuators using onboard servo and PWM pins.
- Smart Automation Hubs: Interfacing relays, switches, and analog feedback sensors for automated home or industrial systems.
- Educational STEM Labs: Teaching students microcontroller interfacing and sensor data collection safely and efficiently.
-
Environmental Monitoring Stations: Deploying multi-sensor arrays for temperature, humidity, and gas detection projects.
Package Includes
- 1 x ACEBOTT ESP32 Shield Board V1.0 for QA008 ACEBOTT ESP32 Max V1.0 Easy-Plug
Technical Specifications
| Item Type | ESP32 Shield Expansion Module |
| Brand / Series | SPIDER Automation (ACEBOTT QA017 Compatible) |
| Model Number | QA017 (ESP32 Shield Board V1.0) |
| Controller Compatibility | QA008 ACEBOTT ESP32 Max V1.0 Board |
| Operating Voltage (V) | 3.3V to 5V DC |
| Power Rating / Output | 15V 3A Max Output Current |
| PWM / Digital Pins | 8 PWM Pins & 8 Digital 3-Pin Ports |
| Analog Pins | 6 Analog 3-Pin Ports (4 × 5V, 2 × 3.3V) |
| Communication & Control | 2 × I2C Pins, 2 × Servo Interfaces, & 1 × Serial Port |
| Operating Temperature | 0 °C to 70 °C |
| Shipping Weight | 0.023 kg |
| Shipping Dimensions | 7 × 6 × 2 cm |
