Description

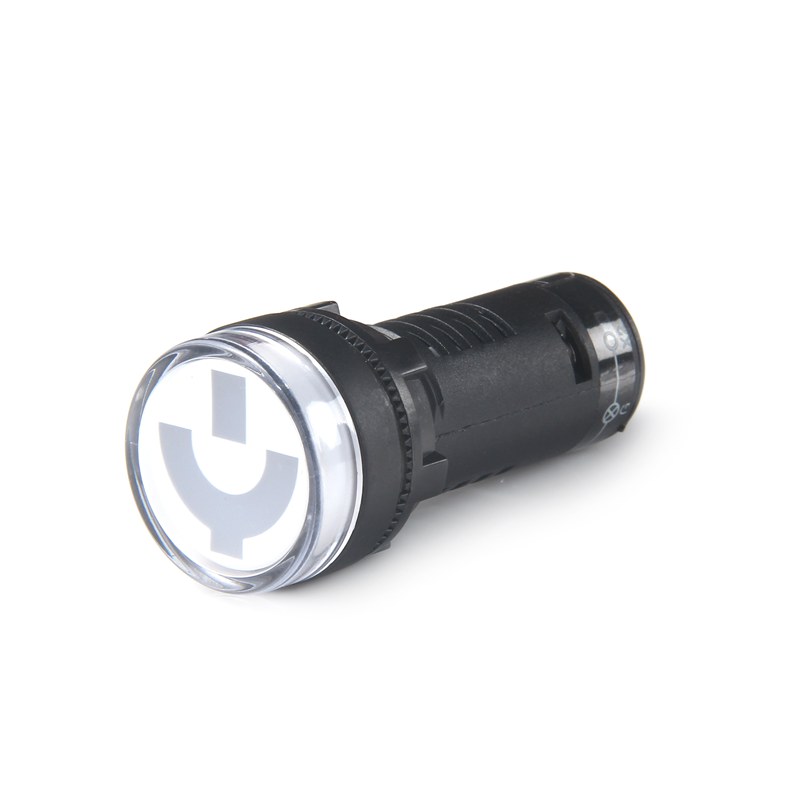

The AD16-22W/D series indicator light is a professional-grade signaling solution originally engineered for rail transportation systems, where reliability is paramount. Designed for circuit breaker position monitoring and door status indication, this indicator utilizes high-brightness LED technology to ensure clear visibility in demanding industrial environments.
Constructed with durable PC material, this pilot lamp is built to withstand rigorous use, offering an IP65 protection rating against dust and low-pressure water jets. The unit is designed for direct integration into control dashboards and electrical cabinets, featuring a secure screw-lock mechanism that ensures vibration resistance and long-term mechanical stability.
Applications
- Circuit breaker status monitoring (Open/Closed/Tripped)
- Rail transportation door opening/closing indication
- Industrial machinery control panels
- Electrical distribution and substation monitoring
- Critical infrastructure status signaling
Features
- Industrial Grade: High-brightness LED source with long service life.
- Rugged Construction: Durable PC plastic housing with an IP65 protection standard.
- Secure Mounting: Features a robust screw-locking mechanism for dashboard and chassis mounting.
- High Compatibility: Compatible with 0.75mm² to 1.5mm² hard wire for direct plug-in connections.
- Energy Efficient: Very low power consumption (≤20mA) for sustainable industrial operation.
Package Includes
- 1 x AD16-22W/D LED Circuit Breaker Position Signal Indicator (220V AC)
Specifications
| Parameter | Specification |
|---|---|
| Model Number | AD16-22W/D |
| Operating Voltage | 220V AC |
| Current Consumption | ≤ 20 mA |
| Head Diameter | 28 mm |
| Mounting Hole Diameter | 21 mm |
| Body Material | Durable PC Plastic |
| Protection Standard | IP65 |
| Weight | 39 g |
| Shipping Weight | 0.028 kg |
| Shipping Dimensions | 12 × 8 × 1 cm |
