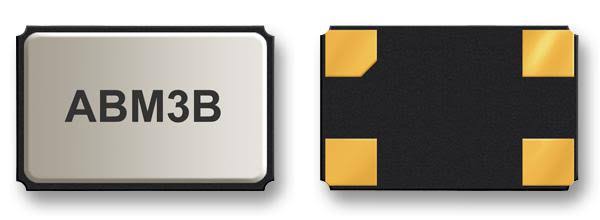

ABM3B-20.000MHZ-10-1-U-T Abracon 20 MHz SMD Quartz Crystal

Description

The ABM3B-20.000MHZ-10-1-U-T is a high-precision, low-profile surface-mount quartz crystal from Abracon. Operating at a nominal frequency of 20 MHz, this crystal is designed to provide a stable and accurate clock reference for high-speed digital applications. Its compact 5mm x 3.2mm (often referred to as the 5032 package) footprint is ideal for modern, space-constrained electronic designs, including communication hardware, embedded systems, and networking equipment.

This crystal is engineered for high performance with both a frequency tolerance and a frequency stability of ±10 ppm, ensuring reliable synchronization across its operating temperature range of -10°C to 60°C. With a low load capacitance of 10 pF, it is well-suited for low-power circuit designs where minimizing parasitic capacitance is critical for maintaining optimal oscillator startup and stability.

Features

• 20 MHz nominal frequency
• Compact 5mm x 3.2mm (5032) SMD package
• High-precision performance (±10 ppm tolerance and stability)
• Low load capacitance (10 pF) for energy-efficient designs
• Robust construction by Abracon for high reliability
• Optimized for automated high-density SMT assembly

Applications

• Communication and Networking Hardware
• Embedded Systems and Microcontroller Clocking
• Digital Signal Processing (DSP)
• Wireless Communication Modules
• General Purpose High-Accuracy Electronic Timing

Package Includes

• 1 x ABM3B-20.000MHZ-10-1-U-T – Abracon Quartz Crystal

Specifications
