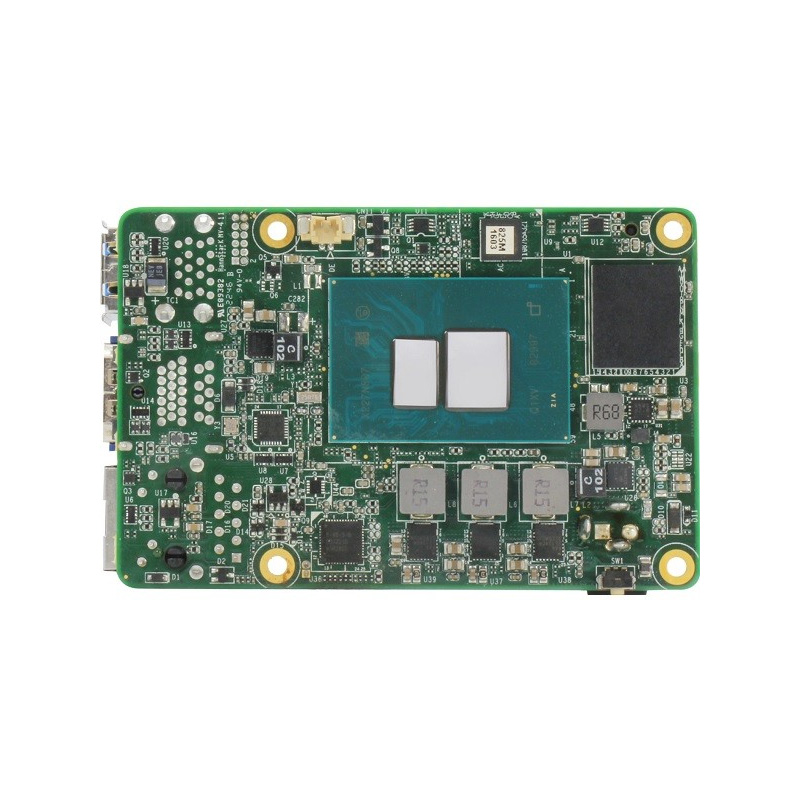

SPIDER Automation AAEON UP 7000 Single Board Computer | Intel Processor N100 & 8GB LPDDR5 | For Industrial & Edge Computing
Description
The AAEON UP 7000 is a compact embedded computing platform designed for industrial, edge-computing and IoT applications. This configuration combines the Intel Processor N100 with 8GB dual-channel LPDDR5 memory and up to 64GB onboard eMMC storage, providing an integrated computing platform for space-constrained embedded systems.
The board incorporates Intel UHD Graphics and an HDMI 1.4b display interface supporting 4K display applications. This makes the platform suitable for embedded visualization, digital signage, operator interfaces and other systems requiring compact multimedia output.

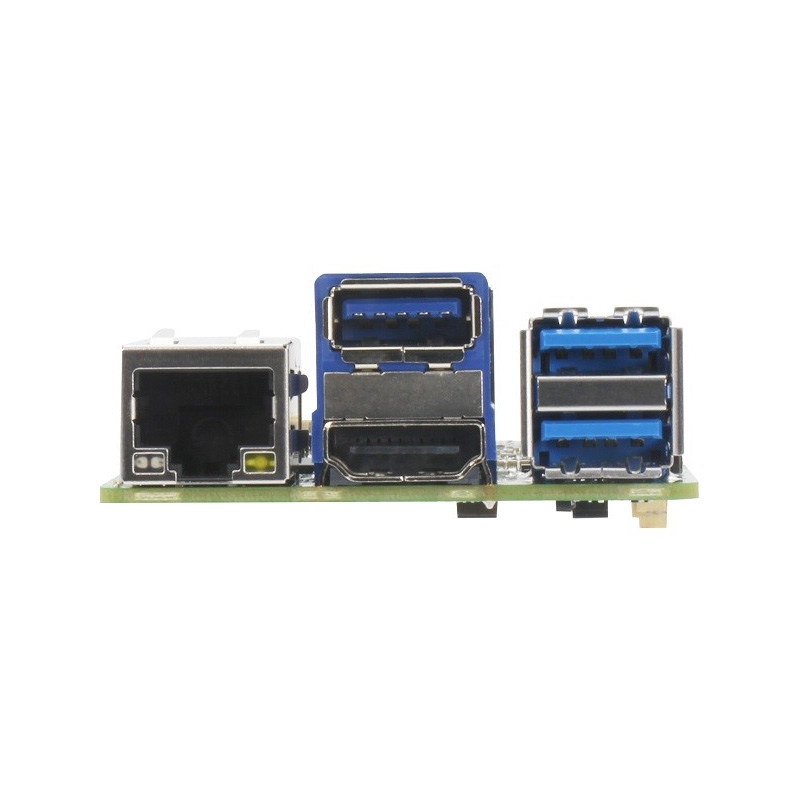

Connectivity includes 1GbE Ethernet through a Realtek RTL8111H controller and three USB 3.2 Gen 2 Type-A ports. The 40-pin GPIO interface provides an additional hardware expansion path for custom I/O, sensors, control electronics and embedded peripherals.
For system security and reliability, the UP 7000 integrates TPM 2.0 and a real-time clock with battery support. Compatible M.2 or SATA expansion can also be used for additional storage or application-specific expansion, depending on the selected system configuration.
Key Features
- Intel Processor N100: Efficient Intel N-series processor platform for embedded computing.
- 8GB LPDDR5 Memory: Onboard dual-channel memory for system applications and multitasking.
- 64GB eMMC Storage: Onboard storage for operating system, software and application data.
- Intel UHD Graphics: Integrated graphics architecture for embedded display workloads.
- 4K Display Support: HDMI 1.4b output supports compatible 4K display applications.
- Gigabit Ethernet: 1GbE RJ-45 networking using the Realtek RTL8111H CG controller.
- USB 3.2 Gen 2: Three Type-A ports provide high-speed connectivity for external peripherals and storage.
- 40-Pin GPIO: Flexible general-purpose I/O for custom hardware integration.
- TPM 2.0: Onboard hardware security functionality for supported applications.
- Real-Time Clock: RTC with battery support for timekeeping in embedded deployments.
- M.2 Expansion: Compatible expansion options can provide additional storage or application-specific functionality.
- SATA Expansion: Supports compatible SATA-based storage expansion.
- Compact Form Factor: 85 × 56mm board dimensions for space-constrained system integration.
- Industrial Embedded Platform: Suitable for edge computing, automation and connected IoT equipment.
Benefits
- Compact System Integration: Processor, memory, storage, networking and I/O are integrated into a small embedded platform.
- High-Speed Peripheral Connectivity: Three USB 3.2 Gen 2 ports support fast external device and data connectivity.
- Network Ready: Integrated Gigabit Ethernet simplifies connection to industrial and enterprise networks.
- Embedded Security: TPM 2.0 provides hardware-based security functionality for supported deployments.
- Flexible Expansion: Compatible M.2 and SATA options allow the system configuration to be extended for different applications.
- Space-Efficient Design: Compact dimensions simplify installation inside embedded equipment and enclosures.
Applications
- Industrial Automation: Embedded controllers, monitoring systems and network-connected industrial equipment.
- Edge Computing: Compact processing nodes, gateways and connected edge devices.
- Digital Signage: Compact display controllers and multimedia signage systems.
- Medical Equipment: Embedded computing platforms for compatible medical and diagnostic equipment.
- Robotics: Robot controllers, peripheral processing and connected robotic systems.
- IoT Gateways: Network-connected systems requiring local processing and hardware I/O.
- Retail Systems: Kiosks, interactive terminals and embedded retail equipment.
- Embedded OEM Products: Custom equipment requiring compact computing, networking and expansion capabilities.
Package Includes
- 1 × AAEON UP 7000 Single Board Computer with Intel Processor N100, 8GB RAM, 64GB eMMC, Rev A1.0
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Single Board Computer |
| Model | AAEON UP 7000 |
| Revision | A1.0 |
| Processor | Intel Processor N100 |
| Memory | 8GB LPDDR5, Dual-Channel |
| Storage | 64GB Onboard eMMC |
| Graphics | Intel UHD Graphics |
| Display Interface | 1 × HDMI 1.4b |
| Display Capability | Supports 4K Displays |
| Ethernet | 1 × 1GbE RJ-45, Realtek RTL8111H CG |
| USB | 3 × USB 3.2 Gen 2 Type-A |
| GPIO | 40-Pin GPIO |
| Security | Onboard TPM 2.0 |
| Real-Time Clock | RTC with Battery Support |
| Storage Expansion | M.2 or SATA, Configuration Dependent |
| Power Input | 12V DC, 6A Maximum |
| Operating Temperature | Not Specified in Supplied Data |
| Board Dimensions (L × W) | 85 × 56mm |
| Product Weight | 150g |
| Shipping Weight | 0.165kg |
| Shipping Dimensions (L × W × H) | 9 × 9 × 2cm |
