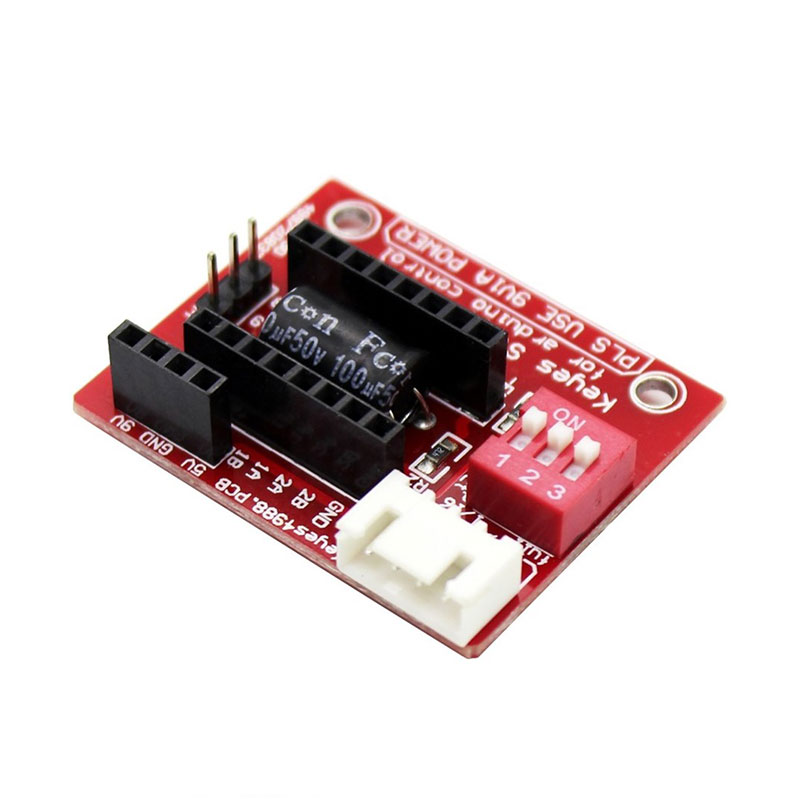

(SPIDER Automation) A4988 Stepper Motor Driver Controller Board Carrier Module

SPIDER Automation A4988 Stepper Motor Driver Controller Board 5-24VDC | Stepper Motor Driver | 3D Printer & CNC Motion Control

Description

SPIDER Automation A4988 Stepper Motor Driver Controller Board is a reliable breakout and adapter module tailored for precision stepper motor control in 3D printers, small CNC machines, and custom automation rigs. Crafted from superior PCB materials, this red carrier board provides clean power distribution and signal routing for popular driver chips like the A4988 and DRV8825. It features integrated microstepping jumpers allowing you to configure subdivision levels up to 16 subdivisions for the A4988 or 32 subdivisions for the DRV8825. With clearly defined headers for Enable, Step, Direction, and Ground signals, plus dedicated input terminals for logic (5V) and motor power (12V to 24V), it ensures a clean, professional wiring setup for your motion systems.

Note: Always double-check module orientation and pin alignment when inserting step driver chips to prevent permanent board damage.

Key Features

• Modular Driver Compatibility: Standardized socket design accepts standard pin-compatible plug-in stepper drivers.
• Subdivision Control: Onboard configuration jumpers let you switch microstepping resolutions effortlessly.
• Dual Power Terminals (Jv): Cleanly separates and distributes 5V logic supply alongside main 12V–24V motor drive voltages.
• Organized Signal Mapping (Jc): Dedicated pins for Enable (E), Step (S), Direction (D), and Ground (G) ensure straightforward microcontroller wiring.
• Durable PCB Construction: Compact metal-reinforced trace layout ensures long-term operational stability under vibration.

Benefits

• Simplified Wiring: Eliminates messy breadboard jumpers by centralizing motor power and control signals onto one board.
• Enhanced Motion Smoothness: Microstepping configuration reduces mechanical resonance and motor vibration.
• Easy Maintenance: Plug-in module architecture allows instant replacement of driver ICs if blown or overloaded.

Applications

• 3D Printer Upgrades: Replacement breakout or expansion board for RepRap, Mendel, and custom Cartesian 3D printers.
• CNC & Laser Engraving: Controlling small X-Y staging axes and miniature milling stepper drives.
• Robotic Automation: Precise positioning control for automated laboratory instruments and conveyor indexing systems.

Package Includes

• 1 x SPIDER Automation A4988 Stepper Motor Driver Controller Board (Red)

Specifications
