Description

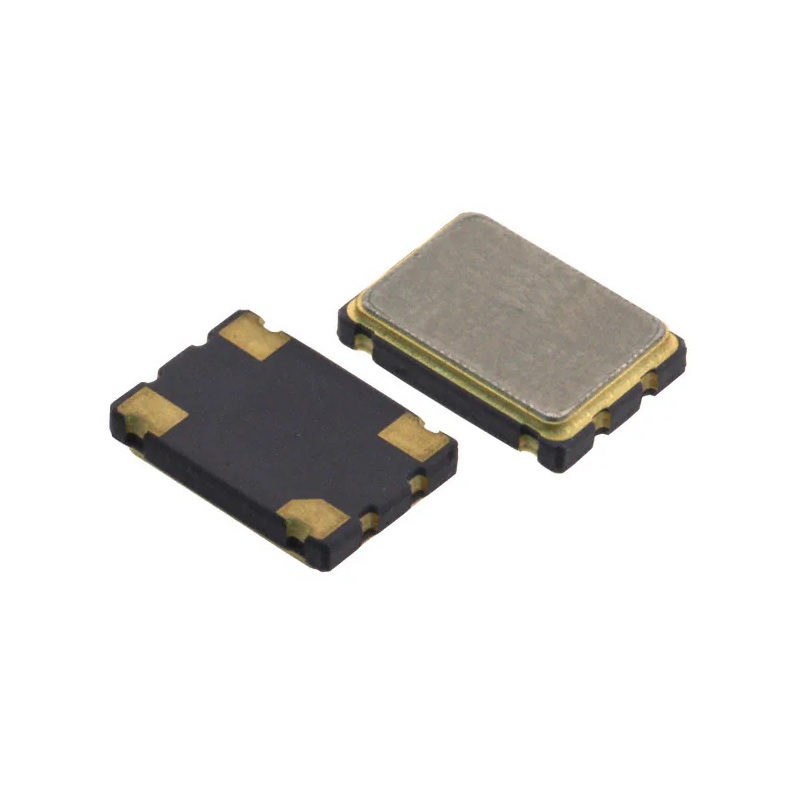

The 7W-50.000MBB-T is a high-precision, seam-sealed surface-mount (SMD) clock oscillator providing a stable 50 MHz frequency output. Unlike passive crystals, this oscillator includes integrated circuitry to generate a clock signal, making it an ideal “plug-and-play” timing solution for high-speed digital systems.
Engineered for efficiency, it operates at a supply voltage of 3.3 V (with a wide 1.8 V – 5 V range) and features low power consumption (< 20 mA) and low jitter. Its design is optimized for high-volume automated manufacturing, supporting standard reflow soldering processes. Additionally, it offers a tri-state output function, allowing for energy-saving standby modes in complex system architectures.
Key Features
- Integrated Oscillator: Active clock solution requiring no external tuning capacitors.
- High Performance: Low jitter and high frequency stability (±50 ppm) ensure reliable data processing.
- Tri-State Output: Built-in standby function for power management in wireless and PC applications.
- SMD Optimized: Seam-sealed, low-profile package designed for automated mounting and reflow soldering.
- Versatile Power: Supports a flexible supply voltage range (1.8 V – 5 V).
Application
- Wireless Communication Modules
- PC and Server Motherboards
- LCD Monitor Controllers
- High-Speed Digital Data Buses
- Industrial Embedded Controllers
Package Includes
- 1 x 7W-50.000MBB-T Clock Oscillator
Specifications
| Parameter | Specification |
|---|---|
| Part Number | 7W-50.000MBB-T |
| Frequency | 50 MHz |
| Supply Voltage | 3.3 V (1.8 V – 5 V range) |
| Frequency Stability | ±50 ppm |
| Current Consumption | < 20 mA |
| Operating Temperature | -10 °C to +70 °C |
| Mounting Type | SMD/SMT |
