SPIDER Automation 7-Pin JST-XH Cable Assembly 22cm | Wire-to-Board Connector
Description

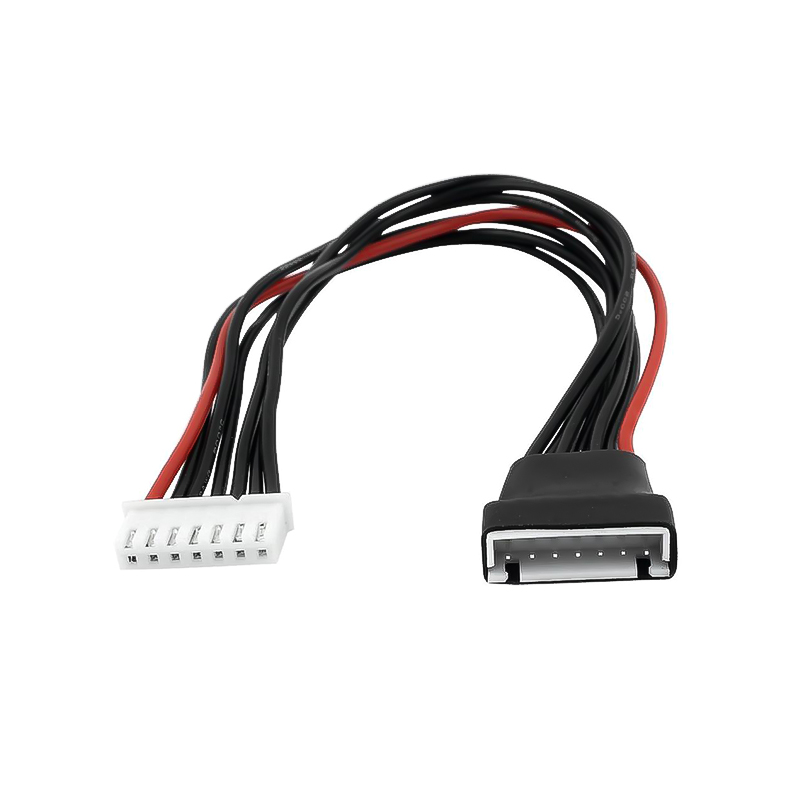

SPIDER Automation 7-Pin JST-XH Cable Assembly 22cm is a reliable, pre-crimped wire harness designed for seamless wire-to-board connections in embedded systems, DIY electronics, and lab equipment. Developed to meet high standards of reliability and mechanical stability, the JST-XH connector series is widely recognized as an industry standard for secure signal and power transmission.
Measuring 22cm in length, the cable features flexible multi-strand wires housed in a durable, fire-retardant 7-pin plug. Whether you are routing power to a printed circuit board, wiring CCTV camera modules, setting up audio pick-ups, or organizing internal connections in a custom enclosure, this ready-to-use cable assembly saves time and eliminates manual crimping errors.
Key Features
- 7-Pin JST-XH Connector: Precision-molded 2.5mm pitch connector offering snug pin alignment and secure latching.
- 22cm Cable Length: Provides convenient reach for routing wires cleanly across enclosures and chassis.
- Fire-Retardant Material: Constructed using high-grade, heat-resistant insulation to ensure operational safety.
- Pre-Crimped & Ready to Use: Factory-terminated leads eliminate the need for specialized crimping tools.
- Flexible Multi-Strand Wire: Pliable conductors resist fatigue and bend easily around tight corners.
- Solid & Durable Build: Engineered for long-term mechanical stability in recurring connection cycles.
Benefits
- Time-Saving Installation: Pre-assembled harness lets you plug directly into mating headers instantly.
- Secure & Stable Contact: Prevents loose connections and intermittent signal drops common in hand-wired setups.
- Versatile Application: Suitable for both low-voltage power supply lines and multi-channel signal routing.
- Safe & Flame Resistant: Flame-retardant casing adds a crucial layer of safety for prototype and production builds.
Applications
- PCB Power & Signal Distribution: Interfacing multi-pin peripheral modules with main microcontroller boards.
- CCTV & Surveillance Wiring: Connecting camera power inputs, pan-tilt mechanisms, and audio pick-up boards.
- Lab & Test Equipment: Custom instrumentation wiring, sensor arrays, and diagnostic test jigs.
- Robotics & Automation: Signal harness for multi-sensor nodes, motor drivers, and control panels.
Package Includes
- 1 x 7-Pin JST-XH Cable Assembly (22cm)
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Series | SPIDER Automation / JST Connector Series |
| Item Type | Wire-to-Board Cable Assembly / Harness |
| Model Order Code / SKU | 7P JST-XH Cable / SKU-SPIDER-JST-XH-7P-22CM |
| Connector Type | 7-Pin JST-XH Female Housing |
| Pin Pitch | 2.5 mm |
| Cable Length | 22 cm (220 mm) |
| Insulation Material | Fire-Retardant Plastic & PVC Wire Jacket |
| Item Weight | 10 g |
| Package Shipping Weight | 0.015 kg (15 g) |
| Package Shipping Dimensions | 11 cm × 8 cm × 2 cm |
