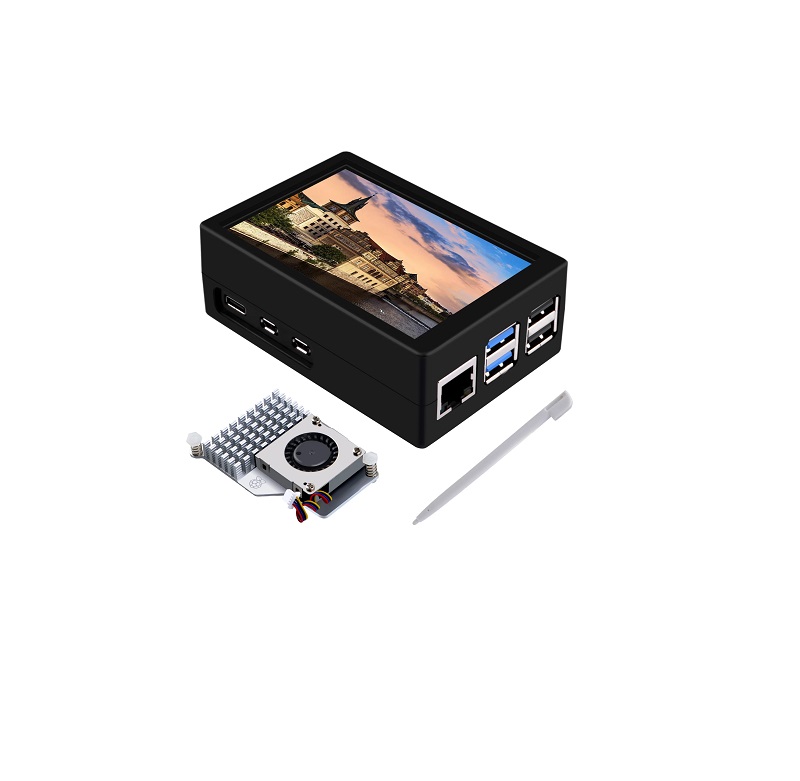

SPIDER Automation 52Pi 3.5-Inch HDMI Touch Screen Case Kit | 480×320 Resistive Display & Active Cooler | For Raspberry Pi 5
Description
The 52Pi 3.5-Inch HDMI Touch Screen Case Kit is an integrated enclosure, display and cooling solution designed for the Raspberry Pi 5. The kit combines a durable ABS case with a compact 3.5-inch HDMI display and an active cooling assembly, providing the essential mechanical protection, visual interface and thermal management components required for a compact Raspberry Pi 5 installation.
The display provides a 480×320 resolution and supports a refresh rate of up to 40 FPS. It uses an LED backlight and MHS resistive touch technology, allowing the Raspberry Pi 5 system to provide a local interactive interface for monitoring, configuration and control applications.
The included active cooler combines an aluminum heatsink with a PWM fan to assist thermal management during Raspberry Pi 5 operation. The kit also includes a resistive touch pen, adhesive foam pad, anti-slip rubber feet, mounting screws and screwdriver for assembly. The Raspberry Pi 5 board itself is not included.
Key Features
- 3.5-Inch HDMI Display: Compact HDMI display integrated into the Raspberry Pi 5 enclosure system.
- 480×320 Resolution: Provides a suitable display area for system monitoring, dashboards and control interfaces.
- 40 FPS Support: Supports refresh rates up to 40 FPS for responsive visual output.
- MHS Resistive Touch: Enables direct touch-based interaction with compatible applications.
- LED Backlight: Uses LED backlighting for the display panel.
- Active Cooling: Combines an aluminum heatsink and PWM fan for Raspberry Pi 5 thermal management.
- ABS Enclosure: Provides mechanical protection around the Raspberry Pi 5 installation.
- Flexible Display Configuration: The system can be configured according to whether the display is required for the application.
- Compact Integrated Design: Combines enclosure, display and cooling components into a single accessory kit.
- Complete Mounting Accessories: Supplied with screws, screwdriver, adhesive foam pad and anti-slip rubber feet.
Benefits
- Improved Thermal Management: Active cooling helps manage Raspberry Pi 5 operating temperature during demanding workloads.
- Integrated User Interface: The touchscreen provides a convenient local interface for monitoring and control applications.
- Physical Protection: The ABS enclosure helps protect the Raspberry Pi 5 assembly from physical contact and environmental dust.
- Flexible System Design: The kit supports installations where a compact display and cooling solution are required together.
- Convenient Installation: Included mounting hardware and accessories simplify mechanical assembly.
Applications
- Industrial Monitoring: Local display interface for equipment status and operating parameters.
- Automation Control: Suitable for Raspberry Pi-based control panels and machine interfaces.
- IoT Dashboards: Compact touchscreen interface for connected devices and monitoring systems.
- Embedded Systems: Suitable for custom Raspberry Pi 5 installations requiring enclosure, display and cooling.
- Control Terminals: Can be used for compact operator interfaces and local system configuration.
Package Includes
- 1 × ABS Case
- 1 × 3.5-Inch HDMI Display
- 1 × Upper Case
- 1 × Resistive Touch Pen
- 1 × Adhesive Foam Pad
- 1 × Anti-Slip Rubber Feet Set
- 1 × Raspberry Pi Active Cooler
- 4 × Self-Tapping Screws
- 1 × Screwdriver
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | 3.5-Inch HDMI Touch Screen Case Kit with Active Cooler |
| Compatible Board | Raspberry Pi 5 |
| Display Size | 3.5 Inch |
| Display Interface | HDMI |
| Resolution | 480 × 320 Pixels |
| Refresh Rate | Up to 40 FPS |
| Backlight | LED |
| Touch Technology | MHS Resistive Touch |
| Display Consumption | 5V, 0.16A |
| Cooling Type | Active Cooling |
| Heatsink Material | Aluminum |
| Fan Control | PWM |
| Case Material | ABS |
| Shipping Weight | 0.17 kg |
| Shipping Dimensions | 11 × 17 × 4 cm |
