Description:

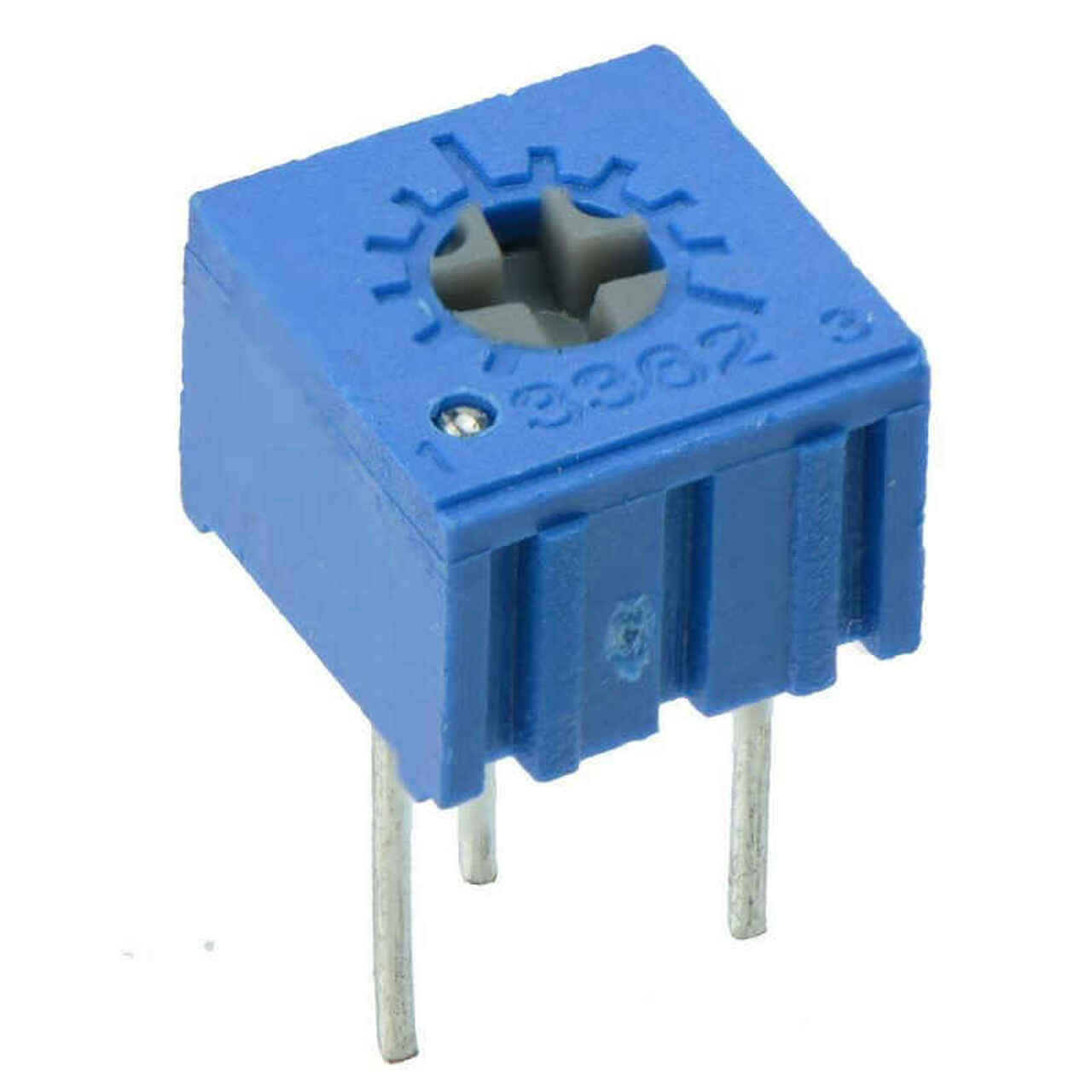

The 50Ω 500mW Through Hole Bourns Trimming Potentiometer is a high-quality cermet trimmer resistor designed for precise resistance adjustment and circuit calibration. With a resistance value of 50Ω, a 500mW power rating, and ±10% tolerance, it provides stable, accurate, and reliable performance in a wide range of electronic applications.
Designed for through-hole PCB mounting, this trimming potentiometer features a durable cermet resistive element that offers excellent long-term stability, low temperature drift, and smooth adjustment. It is ideal for fine-tuning voltage, current, signal levels, bias settings, and calibration in industrial, consumer, and DIY electronic circuits.
Applications:
- Electronic circuit calibration
- Voltage and current adjustment
- Power supply tuning
- Signal conditioning circuits
- Audio equipment calibration
- Instrumentation and test equipment
- Embedded systems and controller boards
- Industrial and DIY electronics projects
Features:
- 50Ω trimming potentiometer
- 500mW (0.5W) power rating
- ±10% resistance tolerance
- High-quality cermet resistive element
- Through-hole PCB mounting
- Smooth and precise resistance adjustment
- Excellent long-term stability and reliability
- Suitable for calibration and fine-tuning applications
Package Includes:
- 1 x 50Ω 500mW 10% Through Hole Bourns Trimming Potentiometer
Specifications:
| Resistance | 50Ω |
| Power Rating | 500mW (0.5W) |
| Tolerance | ±10% |
| Mounting Type | Through Hole PCB Mount |
| Element Material | Cermet |
| Brand | Bourns |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 4 × 4 × 1 cm |
