Description

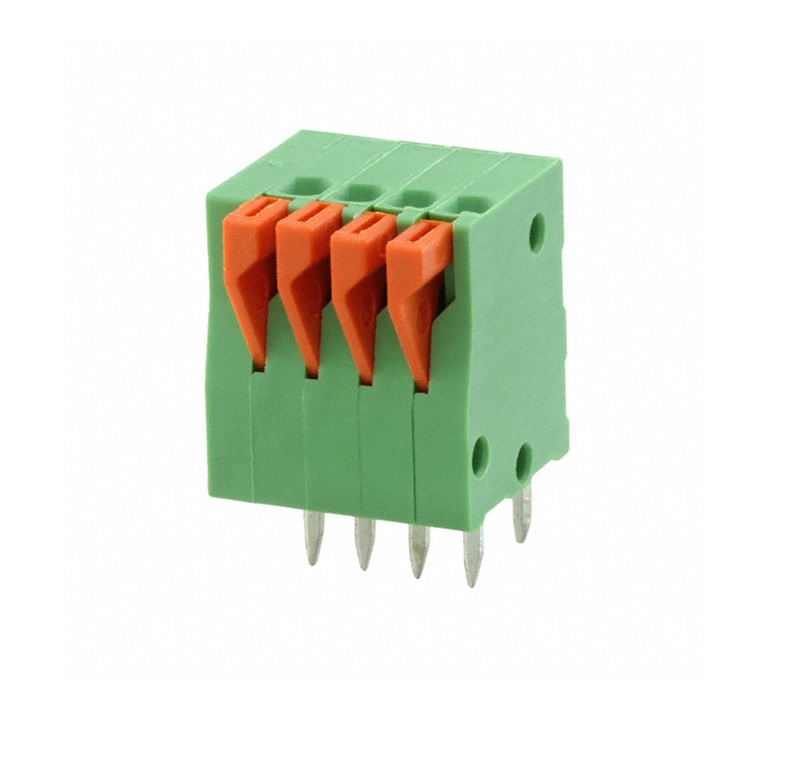

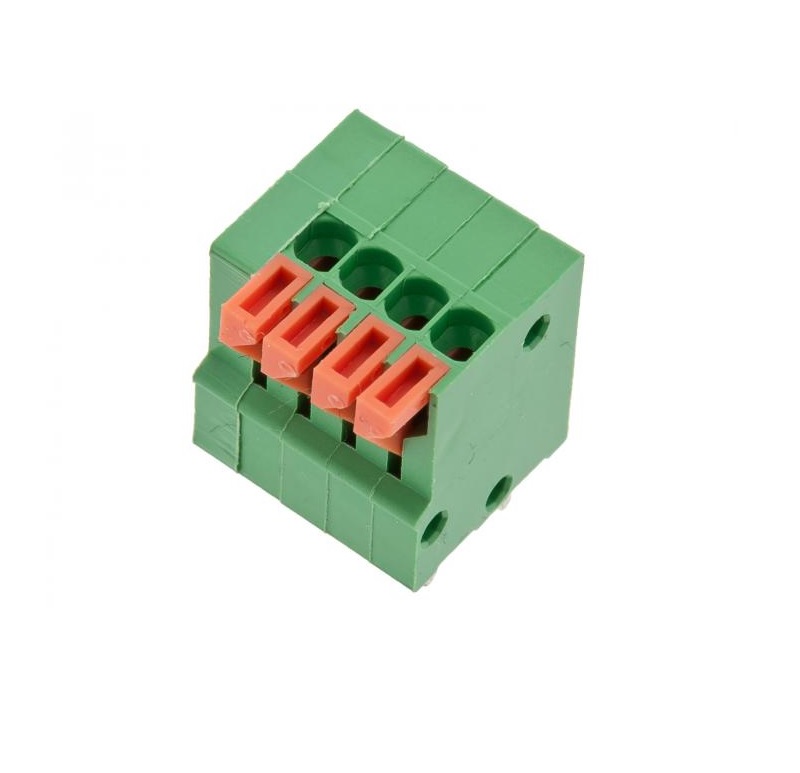

The 4 Pin 2.54mm Pitch PCB Spring Terminal Block Connector is a compact and reliable wire-to-board connector designed for fast, secure, and solder-free wire termination in electronic circuits. Its spring clamp mechanism allows quick insertion and removal of wires while maintaining a stable electrical connection, making it an excellent choice for applications that require frequent wiring changes or maintenance.
Featuring a 2.54mm pin pitch and 4-pin configuration, this PCB-mounted connector is ideal for space-constrained electronic designs. The durable spring terminal design eliminates the need for screw tightening, reducing installation time while ensuring vibration-resistant electrical connections.
Manufactured from high-quality insulating material with reliable metal contacts, this connector is suitable for LED lighting systems, power supplies, industrial control equipment, embedded electronics, signal transmission, and PCB prototyping applications.
Note: Product images are shown for reference only. The actual product may vary slightly in appearance, color shade, or manufacturer markings depending on production batch.
Features
- 4-pin PCB spring terminal block connector
- Standard 2.54mm terminal pitch
- Solder-free wire connection
- Spring clamp mechanism for secure wire holding
- Quick wire insertion and removal
- Reliable and vibration-resistant electrical connection
- Compact design for space-saving PCB layouts
- Easy installation and maintenance
- Durable insulating housing
- Suitable for repeated wiring operations
Benefits
- Reduces wiring and installation time
- Eliminates the need for screw tightening
- Provides secure and reliable electrical connections
- Ideal for applications requiring frequent wire replacement
- Improves maintenance efficiency
- Suitable for compact electronic designs
- Offers stable signal and power transmission
- Long service life with dependable spring contact mechanism
Applications
- PCB Prototyping
- Embedded Electronics
- LED Lighting Systems
- Power Supply Circuits
- Industrial Control Systems
- Automation Equipment
- Signal Interface Boards
- Sensor Connections
- Electronic Test Equipment
- Home Automation Projects
- DIY Electronics
- Communication Devices
- Development Boards
- Control Panels
- Electronic Repair Applications
- Low Voltage Power Distribution
- Educational Electronics Projects
- Consumer Electronic Devices
- Instrumentation Equipment
- General Wire-to-Board Connections
Package Includes
- 1 x 4 Pin 2.54mm Pitch PCB Spring Terminal Block Connector
Specifications
| Parameter | Specification |
|---|---|
| Product Name | 4 Pin 2.54mm Pitch PCB Spring Terminal Block Connector |
| Connector Type | PCB Spring Terminal Block |
| Configuration | 4 Pin |
| Pitch | 2.54 mm |
| Connection Type | Spring Clamp |
| Mounting Type | PCB Mount |
| Color | Green |
| Product Weight | 3 g |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 12 × 8 × 2 cm |
