Description

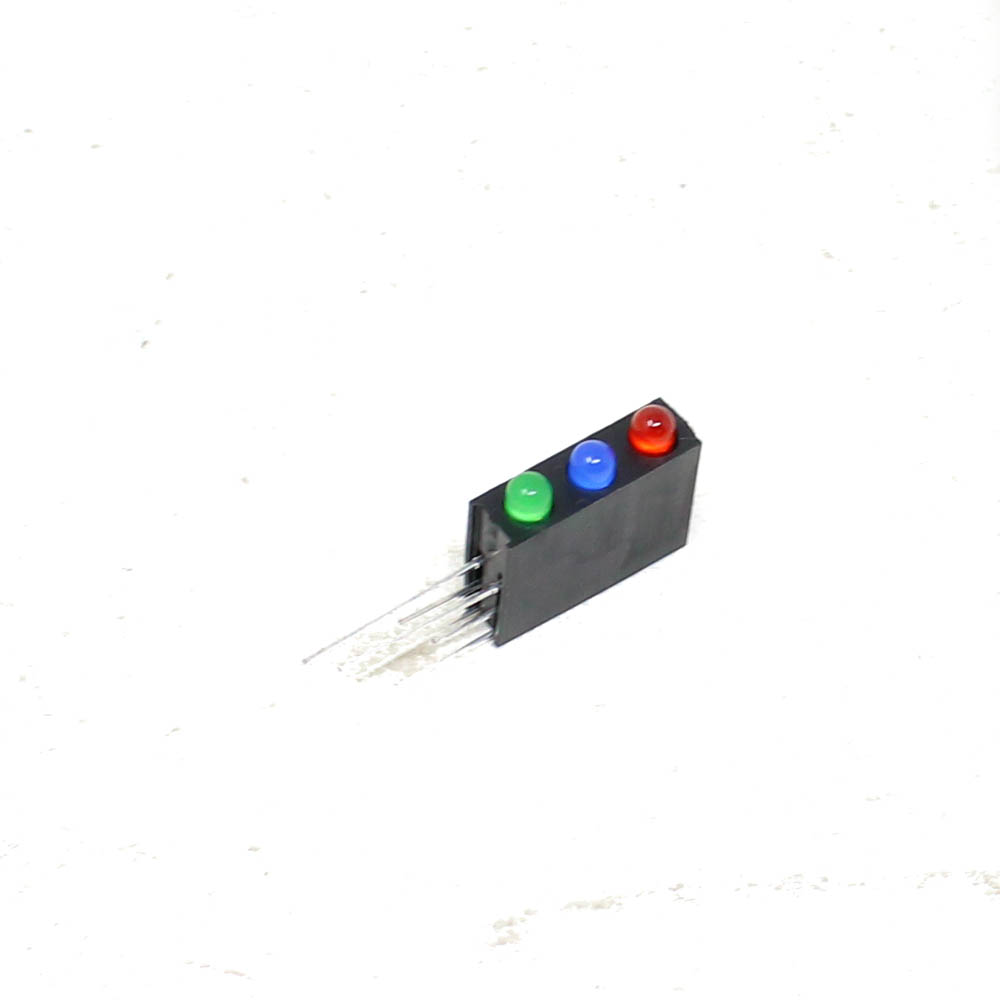

The 3MM three-hole LED holder array is engineered for the secure and streamlined mounting of triple indicator lamps on control panels and printed circuit boards (PCBs). This unit features a multi-color configuration—Red, Blue, and Green—facilitating clear, distinct visual status signaling for sophisticated diagnostic interfaces and equipment monitoring.
LEDs (Light Emitting Diodes) function as high-efficiency semiconductor devices that emit light directly upon receiving an electric current. Unlike conventional lighting technologies that dissipate a significant portion of energy as heat, these LEDs provide effective light generation with minimal electrical waste. This solution is optimized for industrial and embedded applications where reliable visual status indication is a priority.
The modular design allows for both vertical and horizontal stacking, providing flexibility for custom multi-indicator layouts. The integrated locking mechanism ensures that the assembly remains secure against vibrations, making it suitable for a wide range of electronic enclosures and rugged equipment.
Applications
- Industrial control and automation interface panels
- Status signaling for electronic test and measurement equipment
- Multi-state system diagnostic monitoring
- Consumer electronic device interface illumination
- Prototyping and custom PCB-level indicator arrays
Features
- Industrial Grade: High-efficiency design suitable for long-term reliability.
- Form Factor: 3MM three-hole configuration for efficient panel density.
- Color Diversity: Includes Red, Blue, and Green LEDs for clear status differentiation.
- Modular Design: Stackable horizontally and vertically for custom array configurations.
- Versatile Mounting: Compatible with direct PCB or panel-mount installations.
- Mechanical Reliability: Integrated locking mechanism ensures vibration-resistant assembly.
Package Includes

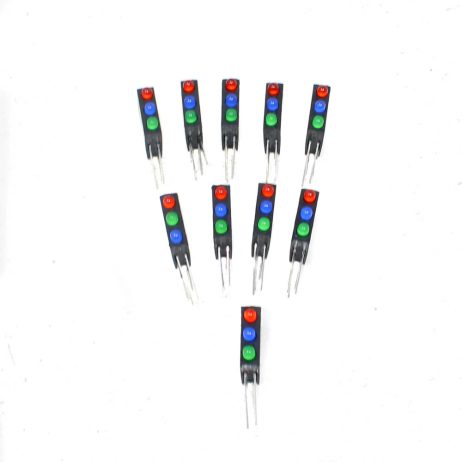

- 10 x 3MM Three Hole LED Mounting Holders
- 10 x 3MM Red Indicator LEDs
- 10 x 3MM Blue Indicator LEDs
- 10 x 3MM Green Indicator LEDs
Specifications
| Parameter | Specification |
|---|---|
| Component Type | Three-Hole LED Holder Assembly |
| LED Size | 3MM |
| LED Colors | Red + Blue + Green |
| Quantity | Pack of 10 Sets |
| Forward Current | 20 mA |
| Forward Voltage | 2 V (Red) / 3 V (Blue/Green)* |
| Mounting Type | Panel / PCB Mount |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 6 × 3 × 1 cm |
*Note: Technical adjustment for standard Blue/Green forward voltage (approx. 3.0V-3.2V) to ensure accurate product usage.
