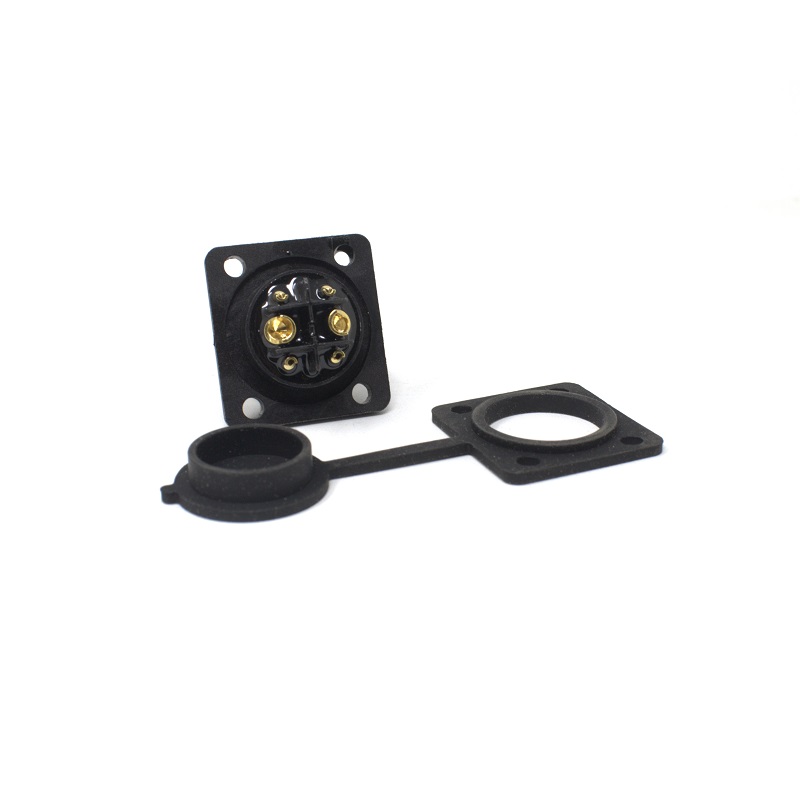

2+4 Pin M25 Waterproof Female Power and Signal Connector

Description

The 2+4 Female Connector is a compact, high-reliability circular connector engineered for secure and weatherproof electrical connections in demanding electronic and industrial applications. Featuring a specialized 2+4 hybrid pin configuration—accommodating two larger power contacts and four smaller signal or data contacts—this connector handles both power delivery and control signals within a single robust interface.

Built with rugged nylon housing and premium gold-plated copper pin contacts for minimal resistance and superior conductivity, the M25 waterproof connector ensures long-lasting durability. It provides a dependable, moisture-resistant connection solution for everything from circuit boards and electrical equipment to custom electric mobility wiring harnesses.

Note: This package includes one female connector unit. Ensure proper wire stripping, crimping or soldering, and correct cable assembly are performed to maintain the waterproof seal and secure electrical integrity.

Key Features

• Hybrid 6-Pin Configuration: Features two larger pins and four smaller pins to combine high-current power routing with multi-conductor signal lines.
• Gold-Plated Copper Contacts: Premium pin material ensures exceptional electrical conductivity, low contact resistance, and protection against oxidation.
• M25 Waterproof Design: Engineered with reliable environmental sealing to protect internal connections from moisture, dust, and outdoor elements.
• Rugged Nylon Housing: Manufactured with high-grade nylon material for superior mechanical strength, impact resistance, and longevity.
• Compact & Versatile: Space-efficient form factor suitable for a wide variety of applications ranging from circuit boards to heavy electrical equipment.

Benefits

• Weatherproof Reliability: Protects critical electrical connections from moisture ingress and corrosion in outdoor or mobile environments.
• Consolidated Cabling: Combines power and signal lines into a single connector housing, simplifying wiring layouts and maintenance.
• Prevent Contact Wear: Gold-plated contacts and robust mating design ensure long operational lifespans across frequent connection cycles.
• Ensure Safe Power Transfer: High-quality insulation materials reduce the risk of short circuits and electrical leakage in demanding conditions.

Applications

• Electric Vehicles & E-Bikes: Motor phase power combined with throttle or sensor signal lines in a single weatherproof link.
• Outdoor Industrial Equipment: Weather-exposed control boxes, remote sensors, and automation field wiring.
• Marine & Agricultural Electronics: Secure cabling interfaces for equipment subjected to water spray and harsh weather.
• Circuit Boards & Custom Electronics: Reliable modular wiring harnesses for complex electronic devices and equipment.

Package Includes

• 1 x Chogori 2+4 M25 Waterproof Female Connector
