Description:

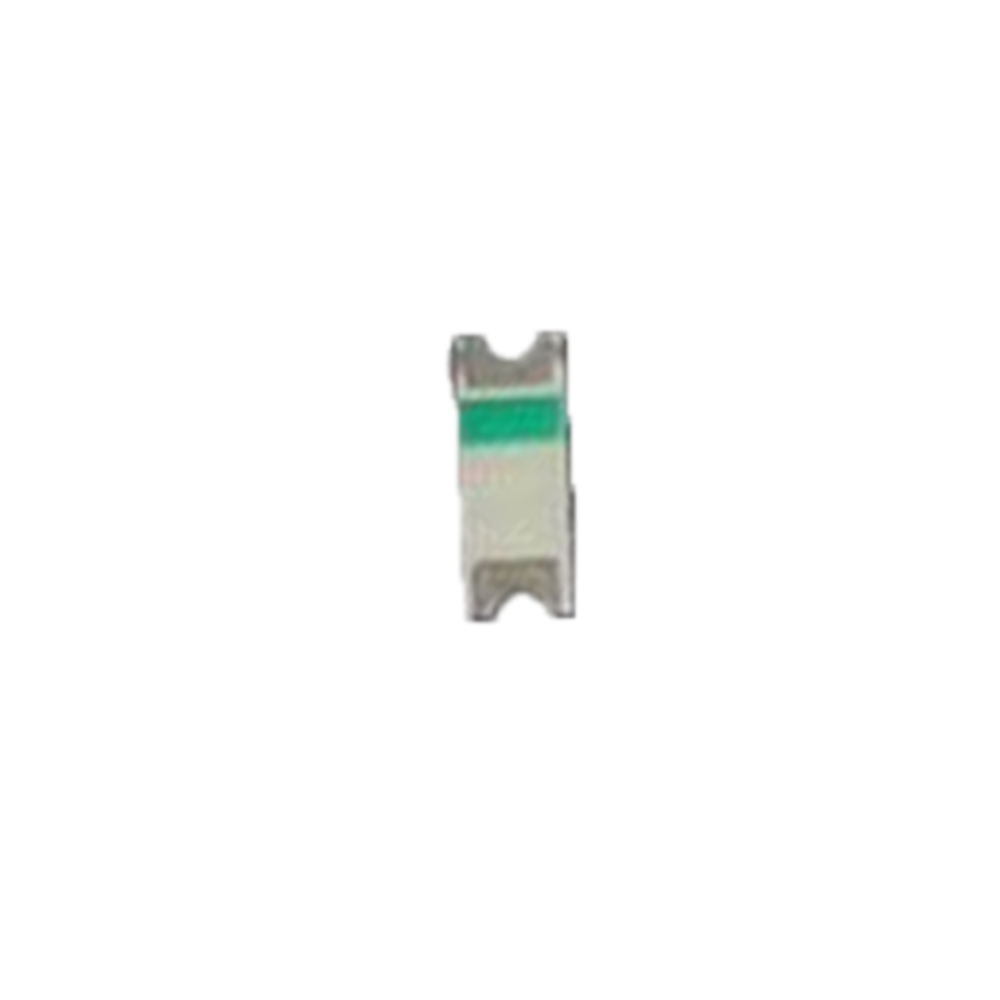

The 23-21B/R6C-AM2P1Y/2A – EVERLIGHT is a compact, high-brightness red surface-mount LED designed for indication, backlighting, and general-purpose electronic applications. Its small footprint enables high-density PCB layouts, making it ideal for modern electronic devices where space is limited.
This mono-color LED is compatible with automated SMT assembly processes, including infrared and vapor-phase reflow soldering. Manufactured using Pb-free and RoHS-compliant materials, it offers excellent reliability, low power consumption, and long operating life for consumer, industrial, and communication equipment.
Applications:
- Status and power indicators
- LCD backlighting
- Dashboard and switch illumination
- Telecommunication equipment
- Consumer electronics
- Industrial control systems
- Embedded electronic devices
- General SMT electronic applications
Features:
- Original EVERLIGHT SMD LED
- Compact 2-SMD package
- Red mono-color light output
- Compatible with automatic pick-and-place assembly
- Supports infrared and vapor-phase reflow soldering
- Low power consumption
- Pb-free and RoHS compliant
- High reliability and long service life
Package Includes:
- 1 x 23-21B/R6C-AM2P1Y/2A – EVERLIGHT Red SMD LED
Specifications:
| Manufacturer | EVERLIGHT |
| Model | 23-21B/R6C-AM2P1Y/2A |
| Product Type | Discrete SMD LED |
| LED Color | Red |
| Package Type | 2-SMD, No Lead |
| Mounting Type | Surface Mount (SMD) |
| Forward Current | 25 mA (Max.) |
| Assembly Compatibility | Automatic Pick-and-Place, IR & Vapor Phase Reflow |
| Compliance | Pb-Free, RoHS Compliant |
| Applications | LED Indication, Backlighting and General Electronics |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 5 × 4 × 2 cm |
