Description

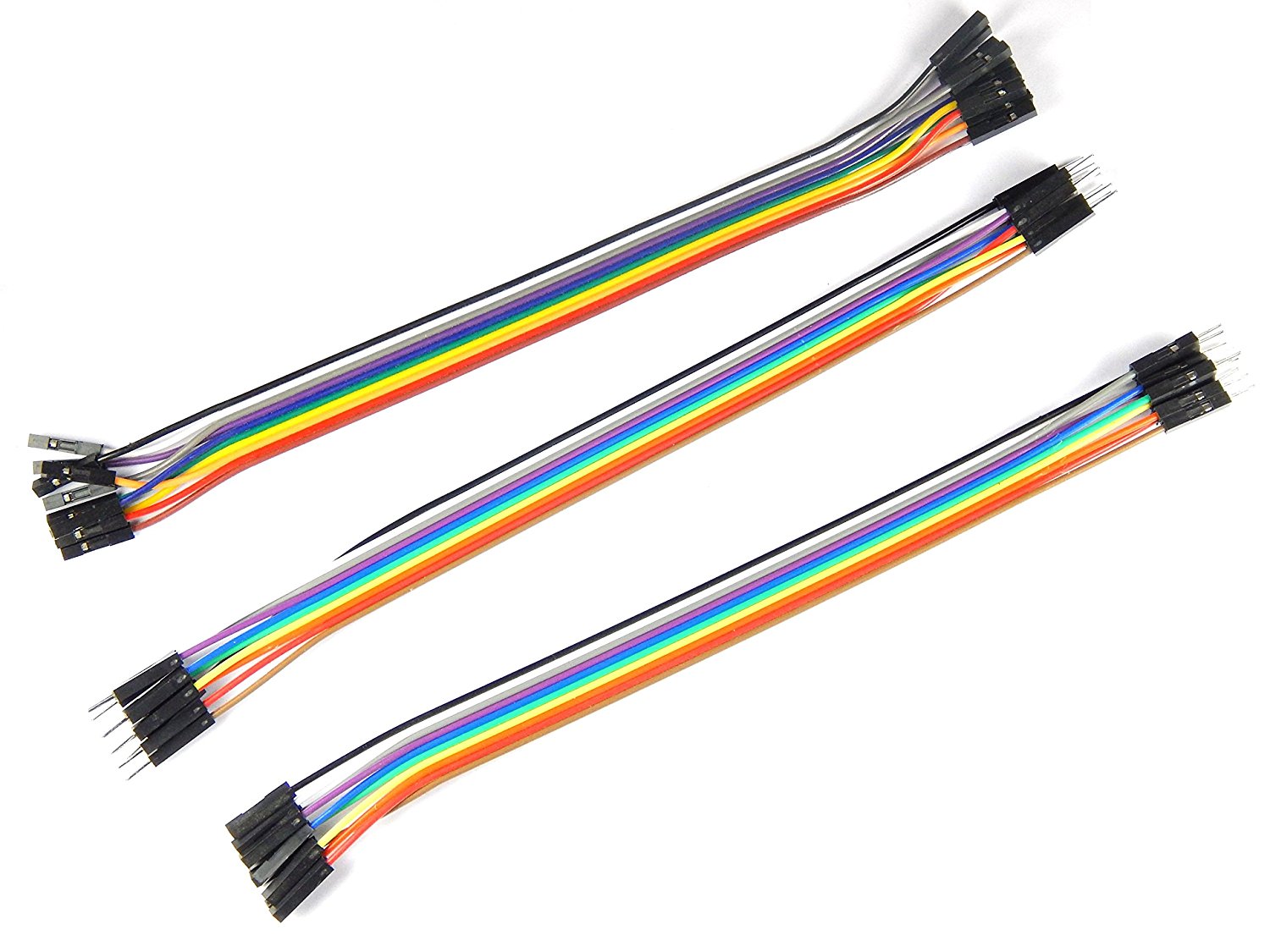

The 20 cm Dupont Jumper Wire Combo Pack is an essential, highly versatile prototyping accessory designed for seamless electrical interconnections across breadboards, development boards, and electronic test circuits. Spanning 20 cm in length, this comprehensive assortment includes a total of 30 peelable jumper wires spanning three essential configurations: Male-to-Male, Male-to-Female, and Female-to-Female.
Constructed from flexible stranded wire encased in vibrant color-coded insulation, each individual conductor can be easily separated from the ribbon strips to meet specific circuit requirements. Compatible with standard 2.54mm pitch pin headers, this combo pack allows rapid, solder-free signal routing, power distribution, and component bridging for platforms such as Arduino, Raspberry Pi, Orange Pi, and Banana Pi.
Note: Product images are for reference only. Individual wire colors within the multi-colored strips may vary slightly based on manufacturing batches.
Key Features
- Comprehensive Combo Assortment: Includes 10 Male-to-Male, 10 Male-to-Female, and 10 Female-to-Female jumper wires to cover all prototyping interconnection needs.
- Peelable Ribbon Design: Flexible multi-wire strips can be easily separated into individual wires or custom multi-conductor harnesses.
- Standard 2.54mm Pitch Compatibility: Perfectly spaced pin terminals and socket receptacles mate securely with standard header pins on microcontrollers and sensors.
- Vibrant Color Coding: Features 10 distinct chromatic colors, greatly simplifying circuit tracing, power distribution, and debugging.
- Durable & Reusable Build: High-quality crimped terminals and flexible insulation withstand repeated plugging and unplugging in active laboratory environments.
Benefits
- All-in-One Prototyping Versatility: Eliminates the need to purchase separate M-M, M-F, and F-F cable packs for complex experimental circuits.
- Solder-Free Efficiency: Enables rapid, secure circuit assembly and modifications on standard breadboards without permanent soldering.
- Enhanced Circuit Organization: Color-coded wiring prevents connection errors, making intricate microcontroller layouts much easier to troubleshoot.
- Broad Platform Support: Interfaced effortlessly with Arduino, Raspberry Pi, Orange Pi, Banana Pi, and custom PCB development boards.
- Cost-Effective Utility: Provides a complete selection of high-demand jumper configurations in a single convenient package.
Applications
- Breadboard Prototyping: Interconnecting discrete electronic components, resistors, and ICs on standard experimental breadboards.
- Microcontroller & SBC Interfacing: Connecting development boards (Arduino, Raspberry Pi) to external sensor shields, breakout boards, and peripherals.
- Maker & Educational Projects: Simplifying wiring setups for students and hobbyists learning fundamental circuit design and digital logic.
- PCB & Motherboard Testing: Providing temporary signal routing, diagnostic tapping, and repair bridging on custom PCBs.
- Mechatronic Prototyping: Routing power and control signals between microcontrollers, motor drivers, and sensor modules.
Package Includes
- 10 x 20 cm Male-to-Male Jumper Wires
- 10 x 20 cm Male-to-Female Jumper Wires
- 10 x 20 cm Female-to-Female Jumper Wires
Specifications
| Parameter | Specification |
|---|---|
| Item Type | Dupont Jumper Wire Combo Pack |
| Configurations Included | Male-to-Male (M-M), Male-to-Female (M-F), Female-to-Female (F-F) |
| Connector Pitch | 2.54 mm (Standard Header Compatible) |
| Cable Length | 20 cm (200 mm) |
| Total Quantity | 30 Jumper Wires (10 pcs per configuration type) |
| Color Scheme | 10 Chromatic Colors (Multi-Colored) |
| Compatibility | Arduino, Raspberry Pi, Orange Pi, Banana Pi, Breadboards, PCBs |
| Shipping Weight | 0.155 kg |
| Shipping Dimensions | 6 × 6 × 6 cm |
