SPIDER Automation | 2-Slot 18650 Battery Holder with DC 2.1mm Power Jack | 7.4V Nominal Series Battery Connection
Product Overview & Battery Holder Design

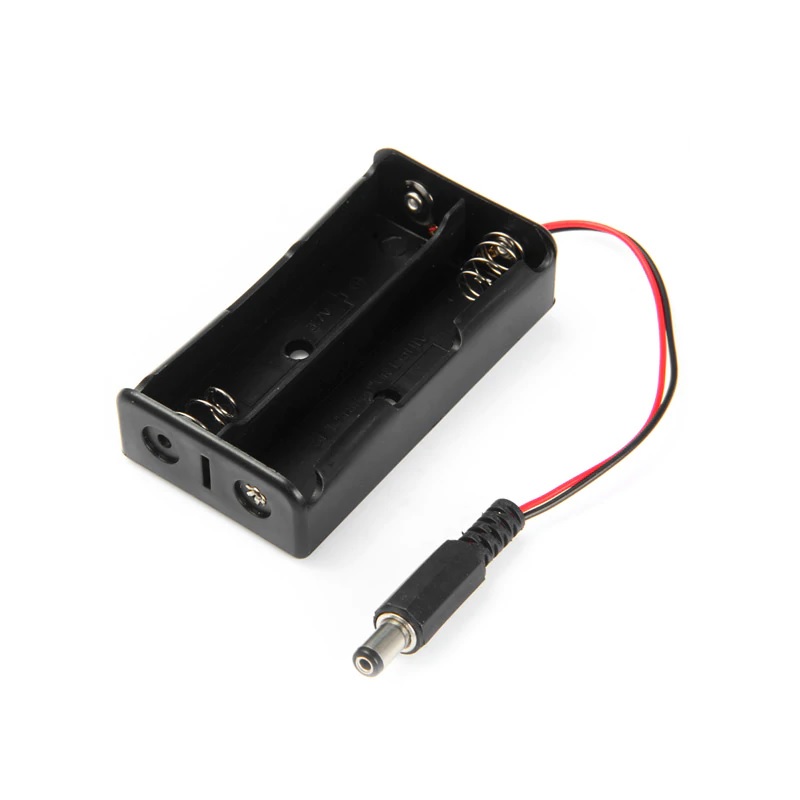

SPIDER Automation 2-Slot 18650 Battery Holder with DC 2.1mm Power Jack provides a convenient way to accommodate two compatible rechargeable cells and supply power to electronic circuits. Its two-cell arrangement connects the batteries in series, combining their individual voltages to provide a higher nominal output than a single cell.
When two compatible 3.7V nominal 18650 cells are installed, the series configuration provides approximately 7.4V nominal output. The actual voltage varies according to the cells’ chemistry, charge condition and operating state. The holder is intended for use with compatible cells; battery compatibility and polarity should be verified before installation.
The holder includes an integrated DC 2.1mm power jack, allowing connection to equipment and development boards that support this connector and the supplied voltage range. Its 100mm wire length provides the connection between the battery compartment and the output jack.
The black housing features mounting holes for installation into suitable enclosures and equipment assemblies. With an overall size of 93 × 57 × 15mm, it offers a compact mounting format for compatible battery-powered electronics. Batteries are not included in the package.
Technical Features & Performance Characteristics
- Two-Cell Battery Arrangement: Designed to accommodate two compatible 18650 cells in the holder.
- Series Electrical Configuration: Connects the two installed cells in series, so their voltages add together.
- 7.4V Nominal Battery Configuration: Two 3.7V nominal cells provide approximately 7.4V nominal output when connected in series.
- Integrated DC 2.1mm Power Jack: Provides a convenient output connection for compatible electronic equipment and development boards.
- 100mm Wire Length: Provides the specified wiring length between the battery holder and power output connection.
- Mounting Holes: Features two mounting holes with a centre-to-centre spacing of 76mm.
- 3mm Mounting Hole Diameter: Supports mounting with suitable hardware.
- Black Housing: Provides a black enclosure for the battery compartment.
- Maximum Operating Temperature: The supplied feature information specifies a maximum operating temperature of 80°C.
- Compact Dimensions: Measures 93 × 57 × 15mm for integration into compatible equipment and enclosures.
Performance Advantages
- Combined Cell Voltage: The series arrangement allows two compatible cells to provide a higher nominal voltage than one cell alone.
- Convenient Power Connection: The integrated DC 2.1mm jack simplifies connection to compatible electronic devices.
- Replaceable Cells: Compatible removable cells can be replaced when required, subject to correct cell selection and handling.
- Practical Mounting: The specified mounting holes support installation inside suitable enclosures and assemblies.
- Compact Battery Arrangement: Combines two cell positions and a power output connection in one holder assembly.
- Versatile Electronics Use: Suitable for compatible development boards, electronic circuits and battery-powered equipment.
Electronic Development & Battery-Powered Applications
- Arduino-Based Systems: Powering compatible Arduino boards through a suitable DC power input, subject to the board’s input voltage requirements.
- Embedded Electronics: Providing a two-cell battery supply for compatible embedded circuits and modules.
- Portable Electronic Projects: Supplying power to suitable battery-operated electronic assemblies.
- Robotics Systems: Providing a battery source for compatible control electronics and low-voltage subsystems.
- Electronic Prototyping: Supporting development and testing setups that require a compatible two-cell power source.
- Custom Equipment Enclosures: Installing the holder inside suitable enclosures using its mounting provisions.
- Battery-Powered Circuits: Supplying compatible circuits that can operate within the actual voltage range of the selected cells.
Package Contents
- 1 × 2-Slot Battery Holder with DC 2.1mm Power Jack
Note: Batteries are not included. The supplied package description identifies a 6 × 1.5V AA battery holder, which conflicts with the two-cell 18650 specification. Confirm the physical holder variant before dispatch.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Battery Holder with DC Power Jack |
| Number of Cells | 2 |
| Battery Type | 18650 (as per specification table; physical variant confirmation required) |
| Connection Configuration | Series connection (as described) |
| Nominal Output Voltage | Approximately 7.4V with two compatible 3.7V nominal cells |
| Power Connector | DC 2.1mm Power Jack |
| Wire Length | 100mm |
| Mounting Hole Spacing | 76mm |
| Mounting Hole Diameter | 3mm |
| Length | 93mm |
| Width | 57mm |
| Height | 15mm |
| Colour | Black |
| Maximum Operating Temperature | 80°C (as stated in supplied features) |
| Storage Temperature | 25°C (as stated; storage range not provided) |
| Weight | 30g |
| Shipping Weight | 0.033kg |
| Shipping Dimensions | 8 × 5 × 3cm |
Installation & Usage Recommendations
- Verify Cell Compatibility: Confirm that the holder physically accommodates the selected cells before installation.
- Check Cell Polarity: Insert both cells according to the polarity markings and verify the output polarity before connecting equipment.
- Use Matching Cells: For a series battery arrangement, use compatible cells with matching chemistry, nominal voltage, capacity and condition.
- Check Device Input Requirements: Confirm that the connected board or circuit supports the actual voltage range produced by the selected cells.
- Use Appropriate Charging Protection: Remove cells for charging using a compatible charger, or use a properly designed two-cell charging and protection arrangement. Do not charge cells through the holder unless the complete charging configuration is confirmed as suitable.
- Observe Temperature Limits: Follow the specified maximum operating temperature of 80°C and avoid exposing the holder to unsuitable heat.
