Description

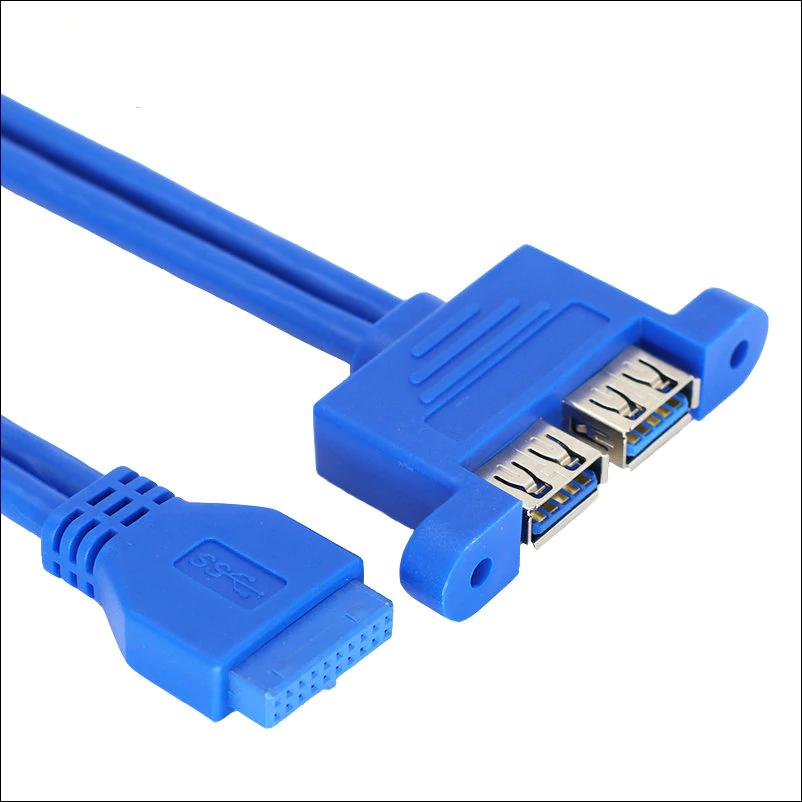

The 2-Port USB 3.0 Female to 20-Pin Motherboard Header Connection Cable is a practical solution for expanding your computer’s connectivity without tying up external ports. This cable converts an internal 19-pin/20-pin motherboard USB 3.0 header into two individual female USB 3.0 ports, allowing you to mount them securely on your PC case’s front panel or through a rear expansion slot.
Engineered with high-quality shielded twisted pair (STP) construction, foil-and-braid shielding, and twisted-pair wiring, this 50 cm cable minimizes electromagnetic interference (EMI/RFI) and crosstalk. It delivers SuperSpeed USB 3.0 data transfer rates up to 5 Gbps (10 times faster than USB 2.0) while maintaining full backward compatibility with USB 1.1 and 2.0 peripherals.
Note: Product images are for reference only. The actual product may vary slightly in appearance or dimensions.
Key Features
- Internal Header Conversion: Connects directly to a motherboard 19/20-pin USB 3.0 header to provide two accessible USB 3.0 Type-A female ports.
- SuperSpeed Performance: Supports rapid data transfer rates up to 5 Gbps for fast file backups and smooth media streaming.
- Advanced Shielding: Foil-and-braid shielding and twisted-pair construction prevent EMI/RFI interference and data transfer errors.
- Flexible Mounting: Includes mounting screws to facilitate secure installation onto custom front panels or rear expansion brackets.
Benefits
- Port Expansion: Easily adds front- or rear-accessible USB 3.0 ports to desktop cases lacking factory top/front panel ports.
- Universal Peripheral Support: Plug-and-play compatibility with mice, keyboards, high-resolution webcams, flash drives, and external storage.
- Durable & Reliable: Designed for stable performance across a wide operating temperature range (-25°C to 70°C).
Applications
- PC Case Customization & Upgrades: Adding front-panel USB 3.0 ports to custom or older desktop chassis.
- Workstation & DVR Builds: Routing stable internal USB connections to accessible exterior mounting points.
- High-Speed Data peripherals: Connecting high-resolution web cameras, video monitors, and digital capture devices.
Package Includes
- 1 x 2-Port USB 3.0 Female to 20-Pin Motherboard Header Connection Cable (50 cm)
- 2 x Mounting Screws
Specifications
| Parameter | Specification |
|---|---|
| Item Type | Motherboard Header to Dual USB 3.0 Cable |
| Connector A | 1 x 19/20-Pin Motherboard Header Female |
| Connector B | 2 x USB 3.0 Type-A Female (Panel Mountable) |
| Cable Length | 50 cm |
| Data Transfer Rate | Up to 5 Gbps (SuperSpeed USB 3.0) |
| Operating Temperature | -25°C to 70°C |
| Shielding | Foil & Braid Shielded Twisted Pair (STP) |
| Color | Blue |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 10 × 7 × 4 cm |
