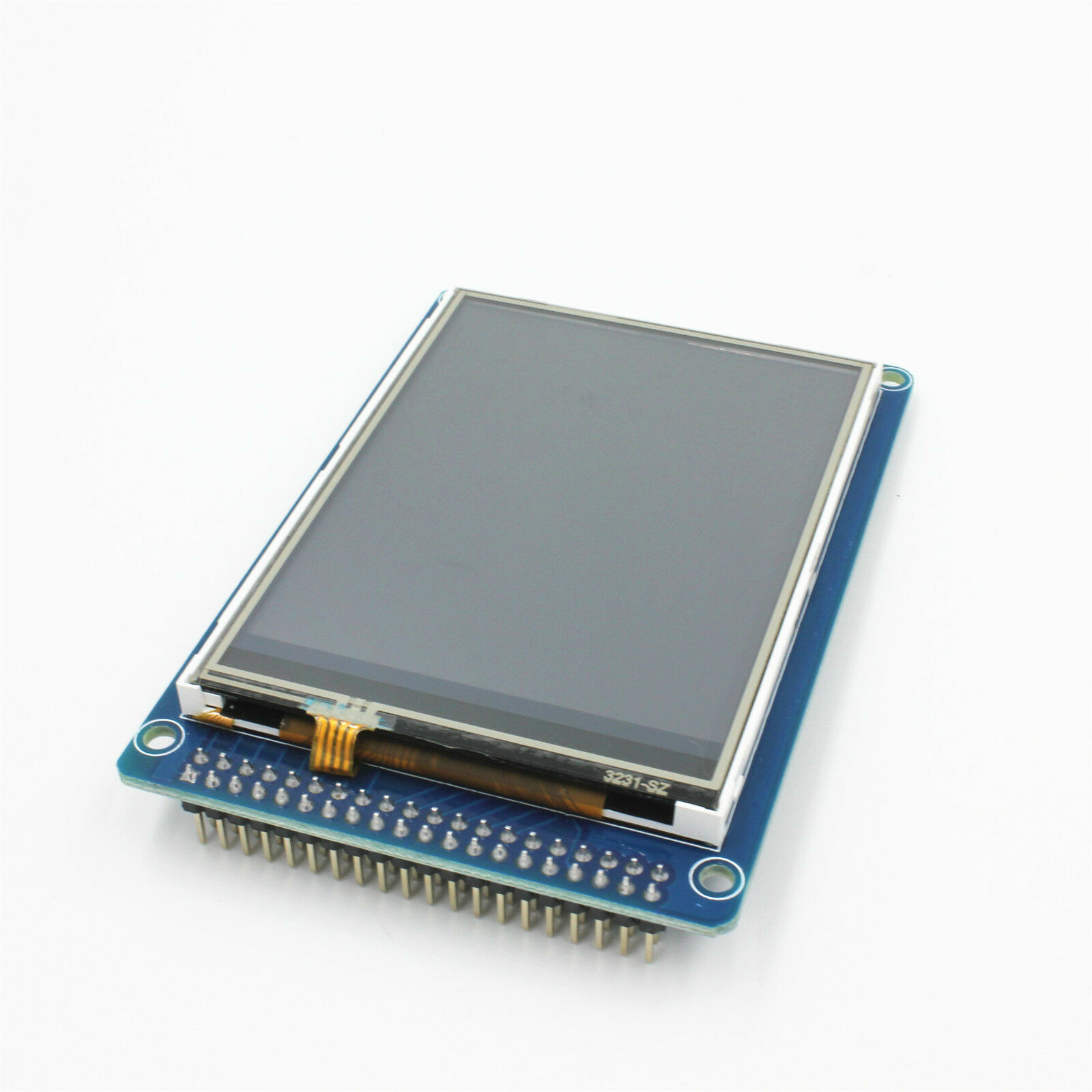

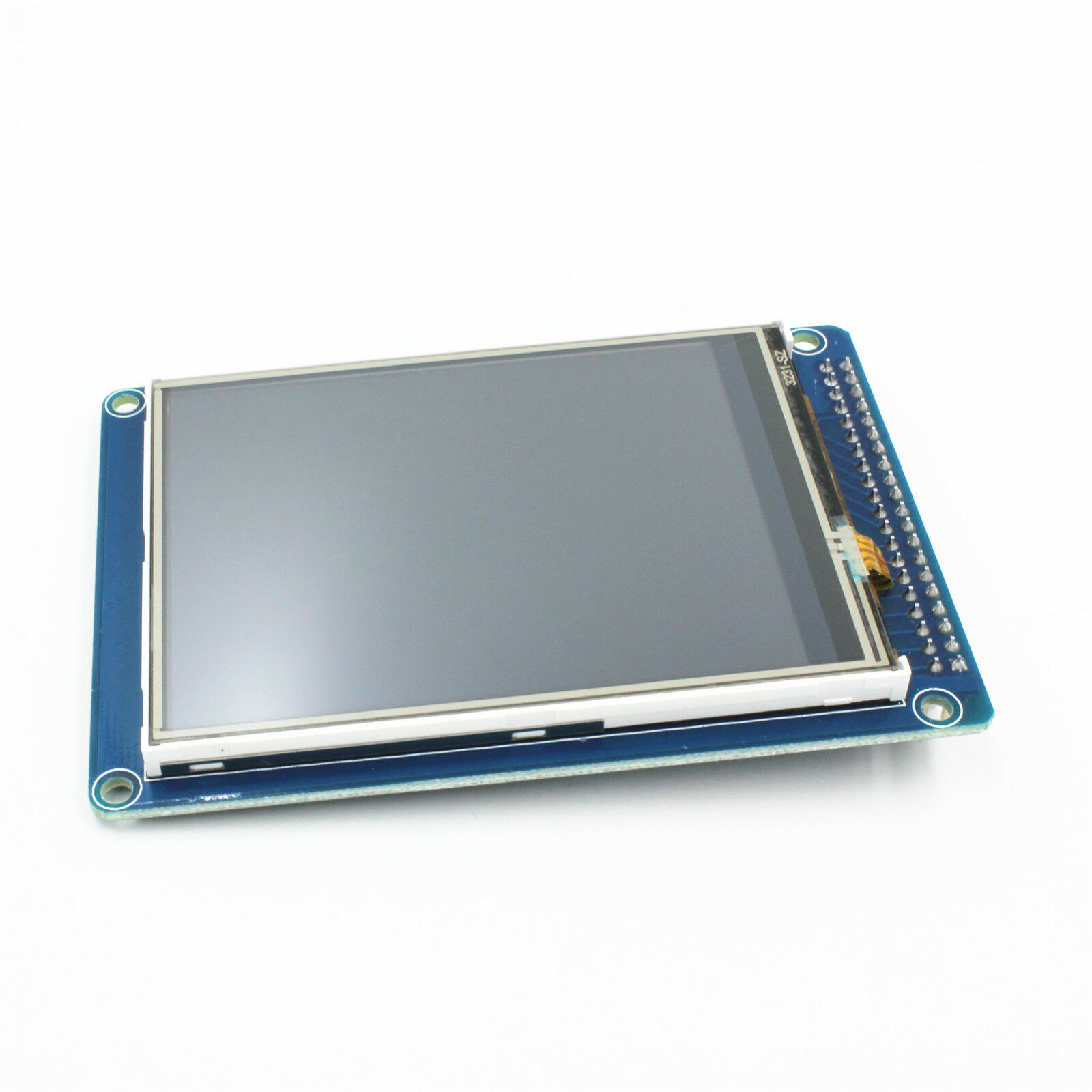

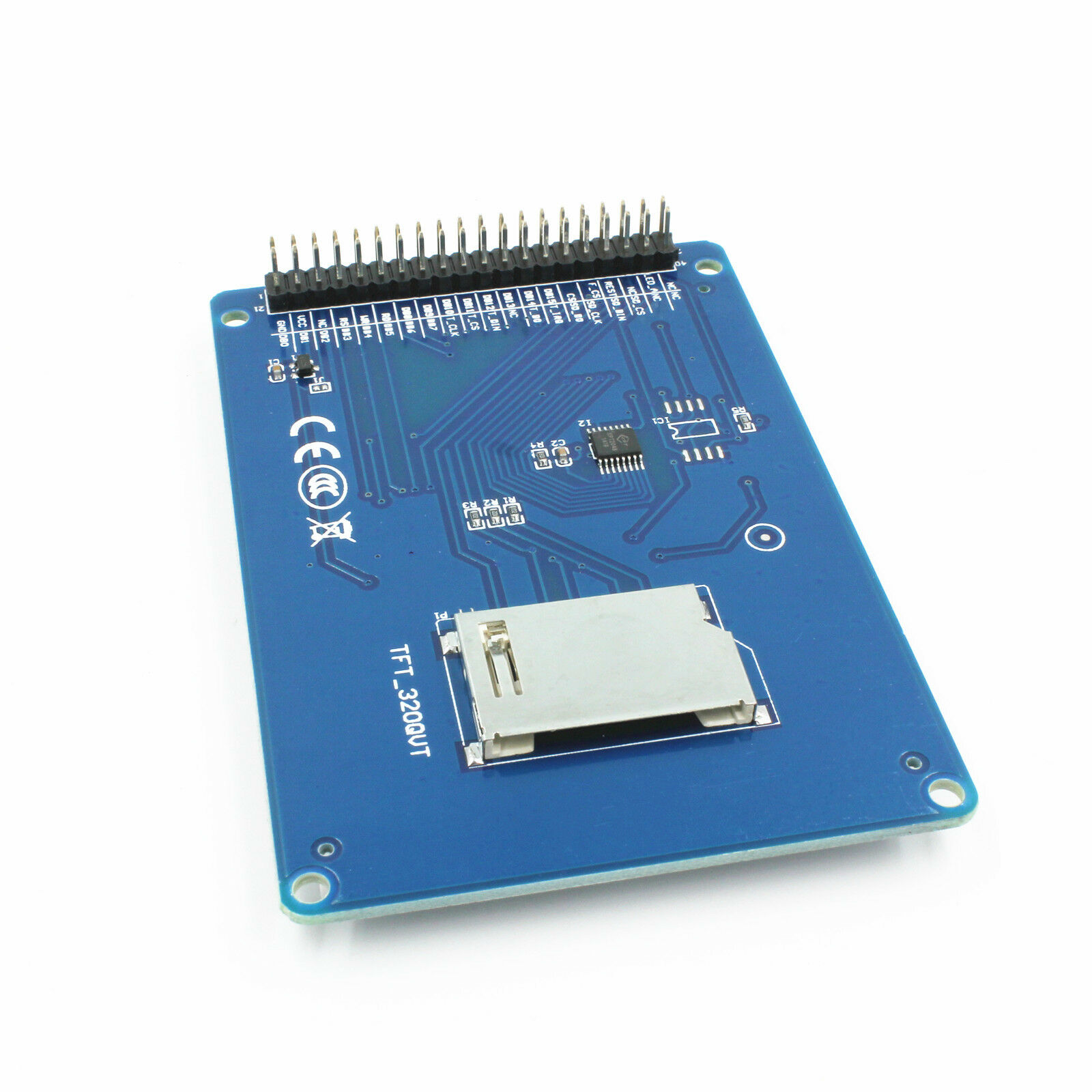

SPIDER Automation 2.4 Inch TFT Touch Screen Module | 240×320 Resistive Touch Display | Arduino Uno R3 Display Module
Description
The SPIDER Automation 2.4 Inch TFT Touch Screen Module for UNO R3 is a high-performance interactive display engineered to bring vibrant graphics and touch control to microcontroller builds. Featuring a 2.4-inch diagonal screen with a sharp 240×320 pixel resolution, it supports a 65K color palette for clear text, menus, and graphical elements.
Equipped with a responsive resistive touch layer capable of handwriting input, this display operates on an efficient single 3.3V power supply. It utilizes a robust 16-bit parallel data interface to deliver fast data transfer and smooth screen updates, making it an ideal drop-in visual module for Arduino Uno R3 compatible development boards.
Key Features
- Crisp Resolution Matrix: 240 × 320 pixel layout on a 2.4-inch screen for detailed graphical rendering.
- 65K Color Depth: Renders up to 65,000 distinct colors to make user interfaces pop with vivid hues.
- Resistive Touch Capability: Built-in touch panel supports precise coordinate tracking and handwriting input functions.
- 16-Bit Parallel Interface: High-bandwidth data bus ensures fast transmission speeds between the host and display buffer.
- Low-Power 3.3V Design: Optimized to run efficiently on a single 3.3V power supply rail.
- Uno R3 Compatible Form Factor: Form-fitted layout designed to mount cleanly onto standard Arduino Uno R3 headers.
Benefits
- Enhances User Interaction: Combines visual output and touch input into a single compact component.
- High-Speed Refresh: 16-bit parallel architecture prevents screen lag during complex menu transitions.
- Simplifies Prototyping: Direct pin mapping reduces external wiring complexity for rapid project assembly.
-
Reliable Performance: Sturdy manufacturing guarantees dependable tactile response and visual longevity.
Applications
-
- Interactive Embedded Dashboards: Displaying system parameters with touch-button adjustments.
- Handheld Measurement Tools: Building portable testing instruments with graphical readout screens.
- Smart Appliance Controllers: Creating local touch interfaces for home automation hubs.
- Educational STEM Project Labs: Teaching students GUI design, touch coordinate mapping, and parallel bus communication.
Package Includes
-
- 1 x 2.4 Inch TFT Touch Screen Module for UNO R3 Blue
Technical Specifications
| Item Type | 2.4-Inch TFT Touch Display Module |
| Brand / Series | SPIDER Automation (Uno R3 Compatible) |
| Controller Compatibility | Arduino Uno R3 Mainboards |
| Screen Resolution | 240 × 320 Pixels |
| Color Palette | 65K Colors |
| Touch Type | Resistive Touch Panel (Supports Handwriting Input) |
| Operating Voltage | Single 3.3V Power Supply |
| Data Interface | 16-Bit Parallel Data Interface |
| Physical Dimensions (L x W x H) | 40 × 56 × 12 mm |
| Net Module Weight | 35 g |
| Shipping Weight | 0.037 kg |
| Shipping Dimensions | 8 × 6 × 2 cm |
