Description
The 1N4007 is the industry-standard PN junction rectifier diode, renowned for its reliability in AC-to-DC power conversion. Designed to allow electrical current to flow in only one direction, it is the fundamental component for rectification, battery charging, and general-purpose power supply circuitry.
With a high repetitive peak reverse voltage of 1000V and a 1A average rectified output current capacity, the 1N4007 is robust enough to handle standard mains-powered rectification tasks. Its through-hole package ensures durability and ease of mounting on printed circuit boards. This high-volume reel of 5,000 units is perfectly suited for large-scale production, automated assembly lines, and industrial electronics manufacturing.
Key Features
- Standard Rectification: Reliable PN junction performance for AC-to-DC power conversion
- High Voltage Rating: 1000V repetitive peak reverse voltage for high-voltage applications
- Durable Design: Robust through-hole construction for stable PCB integration
- Efficient Performance: Low forward voltage drop and 1A current capacity
- Mass Production Ready: Convenient reel of 5,000 units for automated assembly
Applications
- AC-to-DC power supply rectification
- Battery charging circuits
- Reverse polarity protection
- General-purpose signal switching
- Industrial power management modules
Package Includes

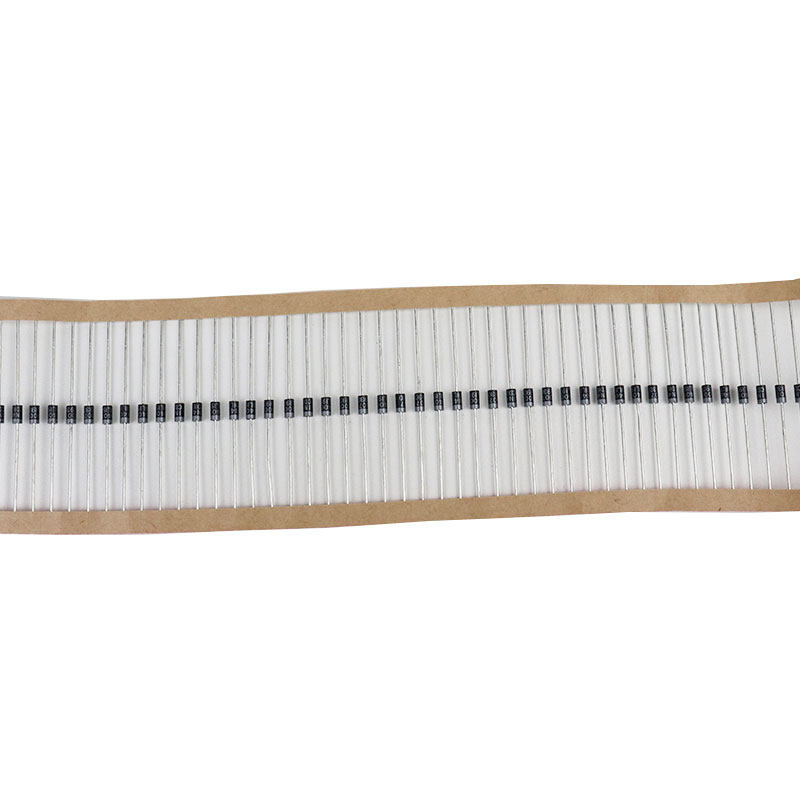

- 1 x 1N4007 Through-Hole Diode (Reel of 5,000 units)
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 1N4007 |
| Peak Reverse Voltage (VRRM) | 1000 V |
| Average Rectified Current (Io) | 1 A |
| Forward Voltage (Vf) | 1 V |
| RMS Reverse Voltage | 700 V |
| Peak Forward Surge Current (IFSM) | 30 A |
| Storage Temp. Range | -65°C to +150°C |
