Description:

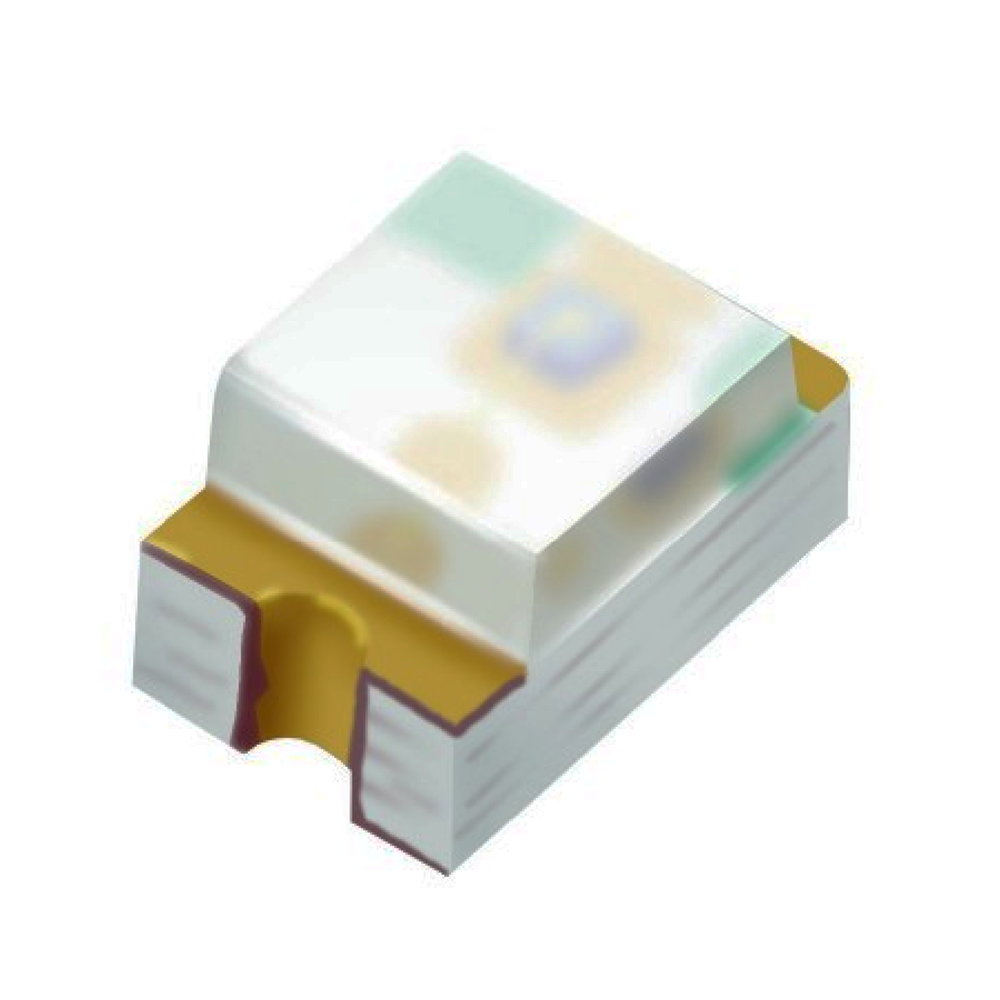

The 17-21/S2C-AN1P2B/3T – EVERLIGHT is a high-efficiency orange surface-mount LED designed for indication, display, and signaling applications. Manufactured by EVERLIGHT, this uni-color LED emits bright orange light with a dominant wavelength of 611nm, making it ideal for electronic equipment requiring clear and reliable visual indication.
Housed in the industry-standard 0805 (2012 Metric) package, this compact LED is suitable for high-density PCB layouts and automated SMT assembly. Supplied in tape-and-reel (T/R) packaging, it offers low power consumption, excellent brightness, and long service life for industrial, automotive, communication, and consumer electronic applications.
Note: Product images are for reference only. The actual product may vary slightly in appearance from the images shown. Refer to the datasheet available in the Attachments section for detailed technical information.
Applications:
- Status and power indicators
- Industrial control equipment
- Consumer electronics
- Communication devices
- Instrumentation systems
- Display and backlighting applications
- Embedded electronic products
- General SMT electronic assemblies
Features:
- Original EVERLIGHT LED
- Bright orange light output
- 611nm dominant wavelength
- Industry-standard 0805 (2012 Metric) package
- Supplied in Tape & Reel (T/R) packaging
- Low power consumption
- Suitable for automated SMT assembly
- Excellent reliability and long operating life
Package Includes:
- 1 x 17-21/S2C-AN1P2B/3T – EVERLIGHT Orange SMD LED (611nm)
Specifications:
| Manufacturer | EVERLIGHT |
| Model | 17-21/S2C-AN1P2B/3T |
| Product Type | Uni-Color SMD LED |
| LED Color | Orange |
| Wavelength | 611 nm |
| Package Size | 0805 (2012 Metric) |
| Package Type | Surface Mount (SMD) |
| Packaging | Tape & Reel (T/R) |
| Mounting Type | Surface Mount (SMD) |
| Application | LED Indication, Display and Signaling |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 5 × 4 × 2 cm |
