Description

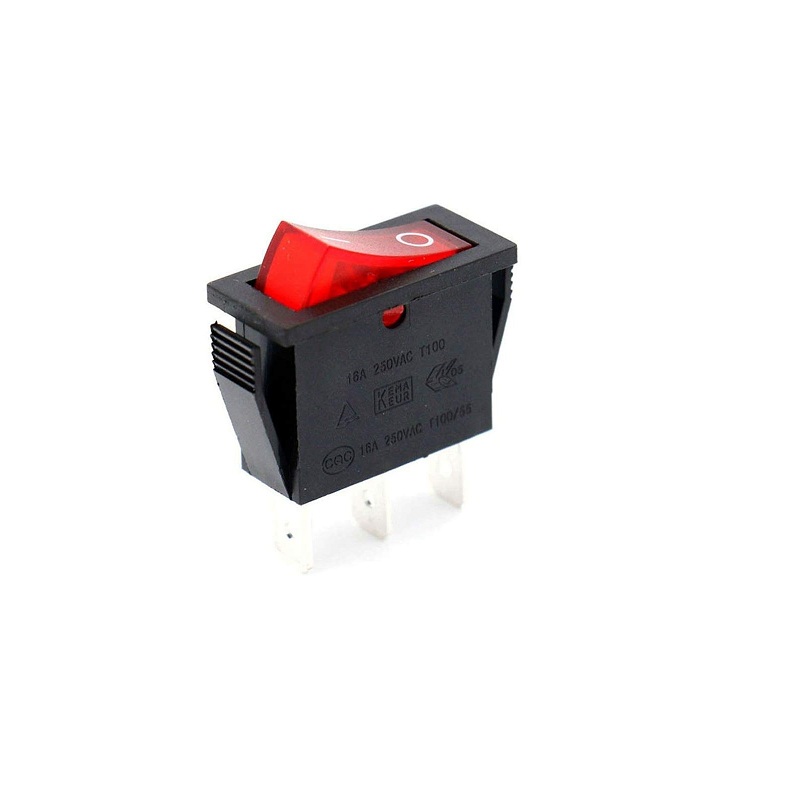

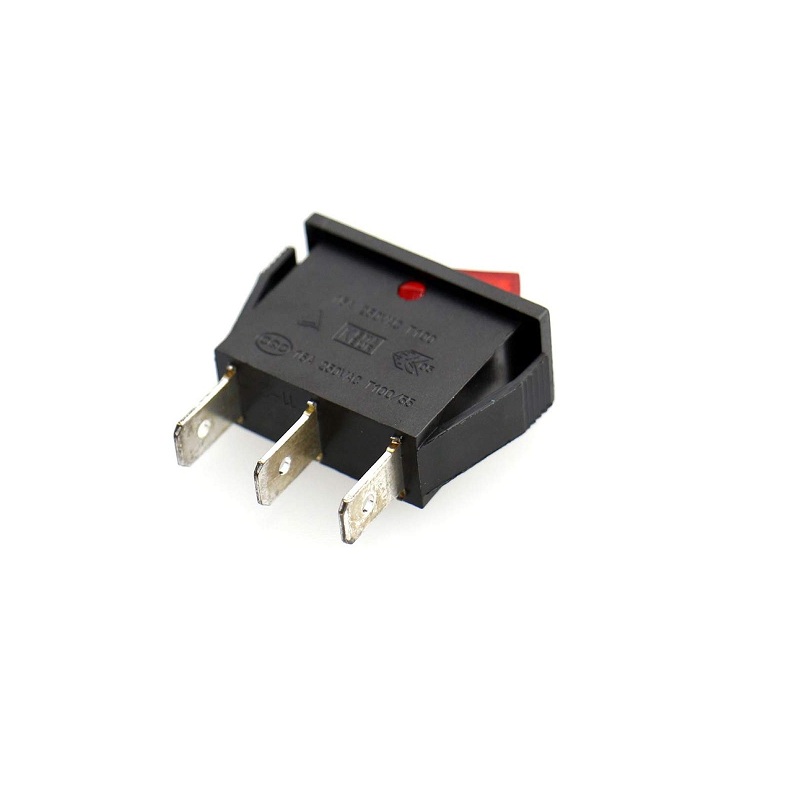

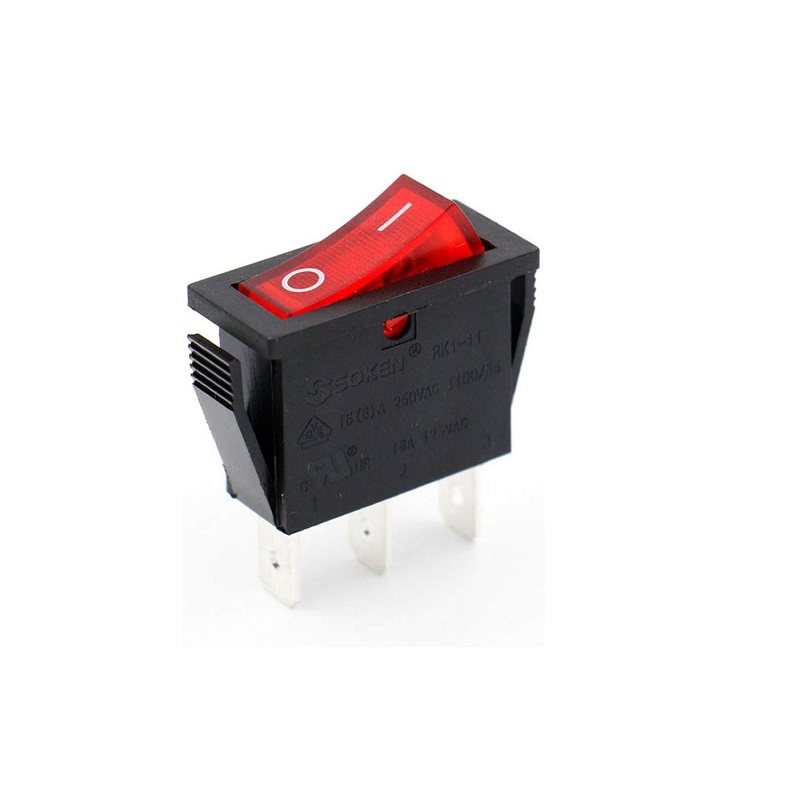

The 16A 250V SPDT Rocker Switch is a high-capacity, heavy-duty power control component designed for demanding electronics, automotive systems, and industrial machinery. Featuring an integrated indicator light, this switch provides clear visual feedback of the “ON/OFF” status, ensuring safe and efficient operation. Its convenient snap-in design with top and bottom tabs allows for a secure, tool-free installation directly into your enclosure, providing a clean and professional finish.
Engineered for endurance, this 3-pin SPDT (Single-Pole, Double-Throw) switch is rated for a robust 16A at 250VAC. With a mechanical and electrical lifespan rated for 50,000 to 100,000 cycles, it provides consistent, long-term performance for robotics, DC motor control, and general-purpose power management. Its compact form factor makes it an excellent choice for modernizing control panels or custom DIY enclosures where space is at a premium.
Key Features
- Design: 3-Pin SPDT (Single-Pole, Double-Throw) ON-OFF configuration
- Illumination: In-built indicator light for clear status visibility
- Mounting: Snap-in “tab” design for fast, screwless installation
- Durability: Heavy-duty construction rated for 50,000–100,000 cycles
- Visibility: Clearly marked “I/O” positions on the rocker
- Performance: High-load rating of 16A at 250VAC
Technical Benefits
- SPDT architecture offers flexible wiring, allowing for control over two separate circuits or modes
- Snap-in tabs significantly reduce assembly time and simplify maintenance in custom project enclosures
- Compact 28 x 10 mm panel cut-out fits efficiently into crowded control panels
- Robust plastic and metal construction ensures mechanical strength and heat resistance
- Reliable electrical performance supports high-current DC motor and general-purpose loads
Applications
- Robotics & Automation: Power control for high-current motors and sensors
- Automotive & Marine: Ignition and auxiliary power switches for vehicles and boats
- Appliances: Power management for water dispensers, humidifiers, and laboratory gear
- Industrial: Control interfaces for small-to-medium machinery and instrumentation
- DIY Projects: Power control for high-current gadgets, enclosures, and prototypes
Package Includes
- 1 x 16A 250V SPDT Illuminated Rocker Switch
Specifications
| Parameter | Specification |
|---|---|
| Switch Type | Rocker Switch |
| Configuration | SPDT (3-Pin) |
| Max Rating | 16A @ 250V AC |
| Panel Cut-Out | 28 x 10 mm |
| Dimensions | 30 x 12 x 18 mm |
| Switching Life | 50,000 – 100,000 Cycles |
