Description

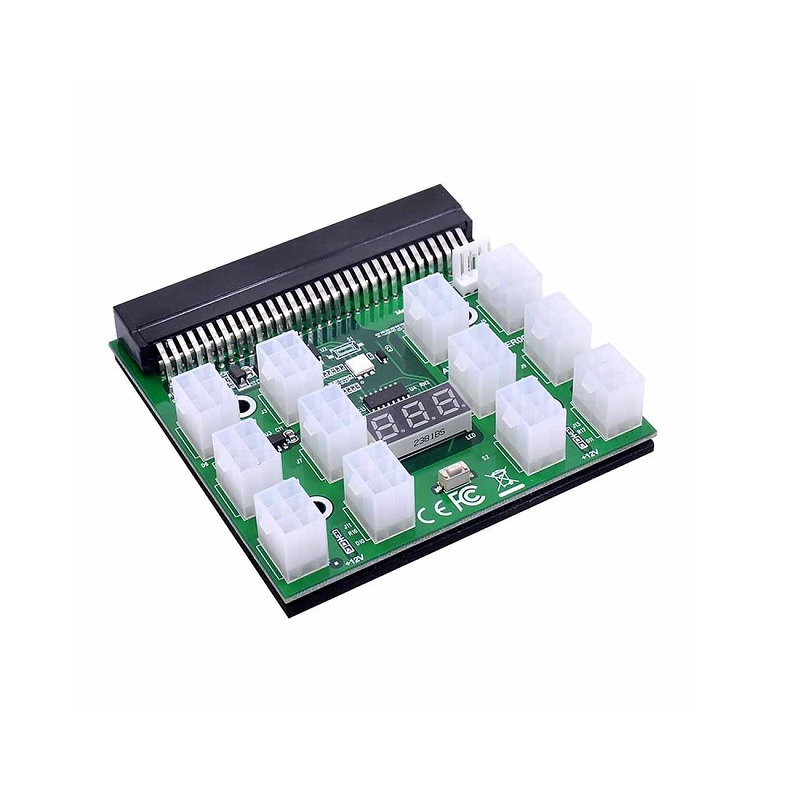

This 12V Server Power Conversion Board is equipped with an integrated LED voltage display that shows the voltage of the main power supply in real-time. Designed with a 4-pin floppy drive connector that links to the main power supply, it enables synchronous power control. The unit features a physical power switch alongside a white button; simply plug in the power cable, press the switch, and observe the tri-color LED flash as the LED display lights up to show the active voltage.
Engineered for high-demand setups like cryptocurrency mining rigs, this breakout board features 12 individual 6-pin connectors and is widely compatible with common server power supply units including DPS-1200FB A, DPS-1200QB A, PS-2751-5Q, PS-2751-LF-1F, HSTSN-PL12, DPS-700LB D, PS-2112-5L, and DPS-750RB A.
Note: Product images are for reference only; actual appearance or packaging may vary slightly based on manufacturing batches.
Key Features
- Real-Time LED Voltage Display: Built-in digital display monitors and shows the main power supply voltage instantly with high clarity.
- Synchronous Power Control: 4-pin floppy drive link connects directly to the main power supply for unified, automated turn-on and turn-off operation.
- Tri-Color LED Indicator & White Switch: Visual feedback flashes upon startup when the power cable is plugged in and the white power button is pressed.
- High-Density Multi-Port Configuration: Features 12 x 6-pin output ports optimized for high-load multi-GPU setups, custom power distribution, and server conversions.
- Broad Server PSU Compatibility: Perfectly fits popular server power models like DPS-1200FB, DPS-1200QB, PS-2751 series, and more.
- Compact and Durable Layout: Professional green and black PCB layout engineered for efficient heat dissipation and secure mounting in mining chassis.
Benefits
- Streamlined Power Management: Simplifies the integration of server power supplies into standard or custom mining rigs without messy wiring hacks.
- Real-Time Monitoring: Keeps track of voltage outputs instantly to prevent under-voltage or over-voltage issues that could harm expensive GPUs.
- Enhanced Safety & Control: Synchronous startup mechanism and manual push-button switch provide precise operational command over your power distribution board.
- Cost-Effective Conversion: Allows repurposing of durable, high-amperage server power supplies for high-performance computing tasks.
Applications
- High-Performance GPU Computing: Perfect for deep learning workstations, AI training rigs, and rendering clusters requiring stable multi-rail 12V power.
- Server PSU Repurposing: Custom electronics benches and industrial hobbyist projects utilizing high-capacity server power units outside of rack enclosures.
Package Includes
- 1 x 12V Server Power Conversion Board with 12 6pin Connector for BTC Miner Mining
Specifications
| Parameter | Specification |
|---|---|
| Item Type | Power Supply Board |
| Model Type | Power Supply Switch/Board |
| Input Voltage | 12 V DC |
| Color | Green & Black |
| Connector Type | BTC Miner Mining (12 x 6-Pin Ports) |
| Number of Pins | 6 Pins per Output |
| Compatible Server Models | DPS-1200FB A, DPS-1200QB A, PS-2751-5Q, PS-2751-LF-1F, HSTSN-PL12, DPS-700LB D, PS-2112-5L, DPS-750RB A |
| Shipping Weight | 0.088 kg |
| Shipping Dimensions | 14 × 11 × 1 cm |
