Description:

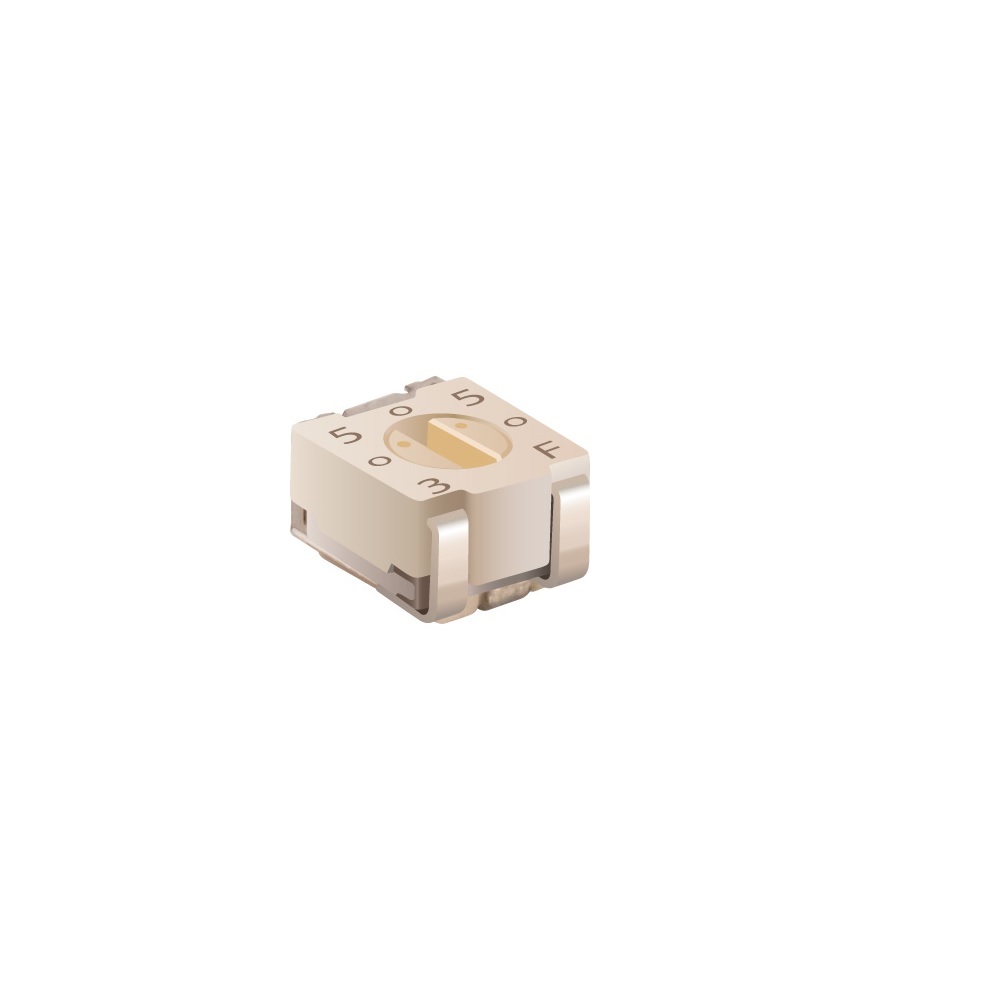

The 100Ω 125mW 20% Surface Mount Bourns Trimming Potentiometer is a compact SMD variable resistor designed for precision calibration and circuit adjustment in electronic applications. Manufactured by Bourns, it provides reliable resistance trimming in a space-saving surface-mount package, making it suitable for high-density PCB designs.
This trimmer potentiometer features a resistance value of 100Ω with a power rating of 125mW and a tolerance of ±20%. It is commonly used for offset adjustment, gain calibration, voltage setting, signal tuning, and fine circuit trimming in consumer electronics, industrial equipment, instrumentation, communication devices, and embedded systems.
Its surface-mount construction enables automated PCB assembly while maintaining excellent mechanical stability and long-term reliability. The compact design makes it an ideal choice for applications where board space is limited.
Note:
- Product images are for illustration purposes only and may differ from the actual product.
Applications:
- PCB calibration and tuning
- Voltage and current adjustment circuits
- Industrial control equipment
- Embedded and IoT devices
- Communication equipment
- Consumer electronic products
- Instrumentation and measurement systems
Features:
- 100Ω resistance value
- 125mW power rating
- ±20% resistance tolerance
- Compact surface-mount (SMD) package
- Reliable Bourns construction
- Suitable for automated PCB assembly
- Ideal for precision circuit trimming and calibration
- Long operational life and stable performance
Package Includes:
- 1 x 100Ω 125mW 20% Surface Mount Bourns Trimming Potentiometer
Specifications:
| Resistance | 100Ω |
| Power Rating | 125mW |
| Tolerance | ±20% |
| Mounting Type | Surface Mount (SMD) |
| Brand | Bourns |
| Item Type | Trimming Potentiometer |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 4 × 4 × 1 cm |
