Description

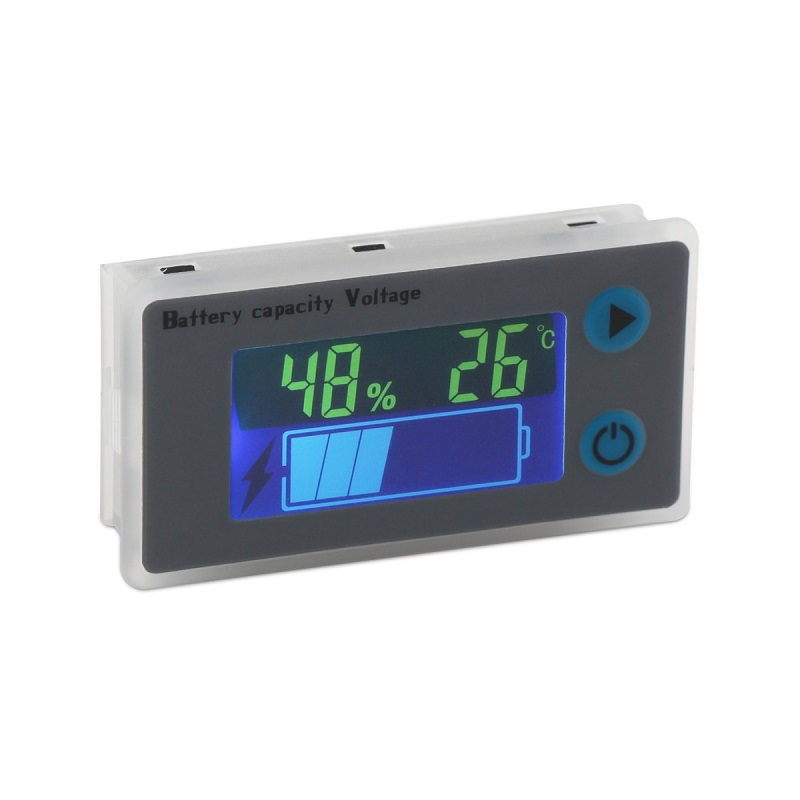

The Universal 10V–100V LCD Color Screen Battery Monitor is an advanced, highly versatile diagnostic instrument designed to track battery health, remaining capacity percentage, live voltage, and temperature in real-time. Featuring a wide operating voltage range from 10V to 100V, this monitor is universally compatible with lead-acid batteries, lithium-ion, lithium iron phosphate (LiFePO4), nickel-metal hydride (NiMH), and various other custom battery packs.
Housed in a patented neutral enclosure featuring a dustproof and waterproof front surface with a protective cover, the unit utilizes a vibrant color LCD screen that ensures clear visibility in both bright sunlight and dark nighttime conditions. It includes smart features such as an auto-sleep mode after 10 seconds of inactivity, reverse polarity protection, simple snap-in buckle installation without screws, and configurable low-voltage flashing/buzzer alarms. Whether used for electric vehicles, solar power banks, or industrial equipment, it provides reliable energy management at a glance.
Note: Some advanced features like temperature monitoring, sound-light alarms, and buzzer options may be selectively assembled depending on the specific manufacturing batch. Package includes 1 universal battery monitor gauge.
Key Features
- Wide 10V–100V Input Range: Exceptionally broad working voltage tolerance suitable for 12V, 24V, 36V, 48V, 60V, 72V, 84V, and 96V battery systems.
- Multi-Chemistry Compatibility: Pre-configured defaults support lithium-ion, lead-acid, LiFePO4, and NiMH batteries, with open programming mode for custom chemistries.
- Comprehensive Tri-Metrics Display: Simultaneously tracks and displays remaining battery capacity percentage, live DC voltage, and temperature telemetry.
- Vibrant Color LCD Screen: High-contrast color liquid crystal display offers crisp data visualization and soft lighting for nighttime operation.
- Smart Power-Saving Sleep Mode: Automatically enters a low-power sleep state after 10 seconds to conserve energy when idle.
- Low-Battery Visual & Audible Alarms: Features a flashing red indicator and an adjustable buzzer alarm (11.5V–100V threshold) to warn against over-discharge.
- Tool-Free Snap-in Installation: Designed with an integrated mounting buckle for quick, screw-free panel installation.
Benefits
- Prevent Unexpected Power Loss: Real-time percentage tracking and low-voltage alarms ensure you are always aware of your energy reserves.
- Universal Fleet Solution: One versatile meter adjusts seamlessly across an enormous span of operating voltages and battery types.
- Weather-Resistant Durability: Dustproof and waterproof front surface protection makes it ideal for harsh outdoor, marine, and vehicular environments.
- Hassle-Free Setup: Simple two-wire connection with reverse polarity protection and screwless panel mounting saves time during installation.
Applications
- Electric Vehicles & Micromobility: Dashboard capacity and voltage monitoring for e-bikes, scooters, golf carts, and ATVs.
- Solar & Energy Storage Systems: Tracking state-of-charge for off-grid lead-acid and lithium battery storage banks.
- Marine & RV Power Banks: Auxiliary house battery monitoring for boats, yachts, and recreational vehicles.
- Industrial DC Machinery: Voltage and health tracking for 12V to 96V industrial equipment, switching power supplies, and backup rigs.
Package Includes
- 1 x 10V–100V Universal LCD Car Battery Level, Capacity & Temperature Monitor
- 1 x Instruction Manual / Quick Guide
Specifications
| Parameter | Specification |
|---|---|
| Item Type | Battery Level Indicator / Capacity, Voltage & Temperature Monitor |
| Model Type | Universal LCD Battery Tester & Monitor Gauge |
| Operating Voltage Range | 10V Minimum to 100V Maximum DC |
| Battery Compatibility | Lead-Acid, Lithium-Ion, Lithium Iron Phosphate (LiFePO4), NiMH & Custom Chemistries |
| Display Specifications | Color LCD Screen (Display Area: 36 × 19.5 mm) |
| Voltage Accuracy | ±0.1% (Typical) to ±0.5% |
| Current Consumption | 5 mA (Typical) | 6 mA (Maximum) |
| Alarm & Buzzer Features | Adjustable Buzzer Voltage: 11.5V – 100V | Sound Level: 70–80 dB |
| Operating Temperature | -10°C to 55°C (Typical rating at 25°C) |
| Physical Product Dimensions | 61.5 mm × 33.5 mm × 13.5 mm |
| Net Weight / Shipping Weight | ~20 g / 0.03 kg |
| Shipping Dimensions | 6 cm × 3 cm × 1 cm |
