Description
The 1.5A 1.5mm Pitch 6-Pin Through-Hole Straight Wafer Male Connector is a high-density interconnect solution engineered for compact electronic designs. With a precise 1.5mm pitch and a straight configuration, this connector is optimized for space-constrained PCB assemblies. It supports a rated current of 1A and 50V AC/DC, making it an excellent choice for internal wiring in miniaturized systems, sensor modules, and low-power control boards.
Key Features
- Compact 1.5mm Pitch: Ideal for high-density electronic layouts where space saving and precise pin alignment are critical.
- Straight Through-Hole Design: Facilitates efficient, vertical PCB mounting, perfect for standard circuit board layouts.
- Reliable Connectivity: Provides secure, stable electrical contact for sensitive data and low-power transmission.
- Robust Electrical Performance: Features low contact resistance (max 20mΩ) and high insulation resistance (min 500MΩ) for optimal signal integrity.
- Wide Environmental Range: Operates efficiently between -40°C and +85°C, ensuring long-term reliability in diverse conditions.
Applications
- Miniaturized Electronics: Perfect for internal wiring in handheld devices, wearables, and compact sensor circuitry.
- Sensor & Control Modules: Ideal for connecting peripheral components to main controller boards in space-limited designs.
- Prototyping & DIY: A high-quality component for custom electronics projects requiring secure, multi-pin connectivity.
Package Includes

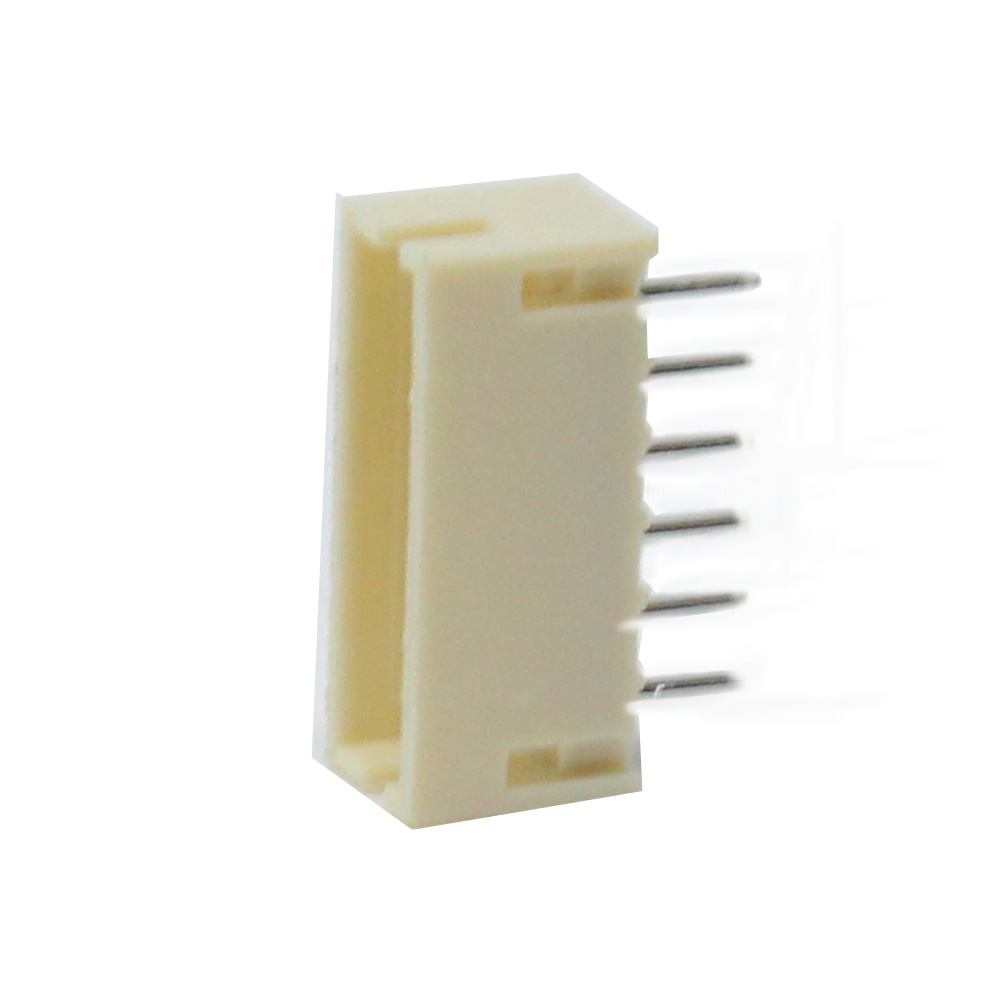

- 1 x 1.5A 1.5mm Pitch 6-Pin Through-Hole Straight Wafer Male Connector
Technical Specifications
| Parameter | Specification |
|---|---|
| Item Type | Through-Hole Wafer Male Connector |
| Pitch | 1.5 mm |
| Number of Pins | 6 |
| Rated Voltage | 50 V AC/DC |
| Rated Current | 1 A AC/DC |
| Mounting Type | Through-Hole (Straight) |
| Operating Temperature | -40°C to +85°C |
| Contact Resistance | 20 mΩ (Max) |
| Insulation Resistance | 500 MΩ (Min) |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 5 x 4 x 2 cm |
